Help CenterCustom 19" Metal Server Enclosure
Related Products

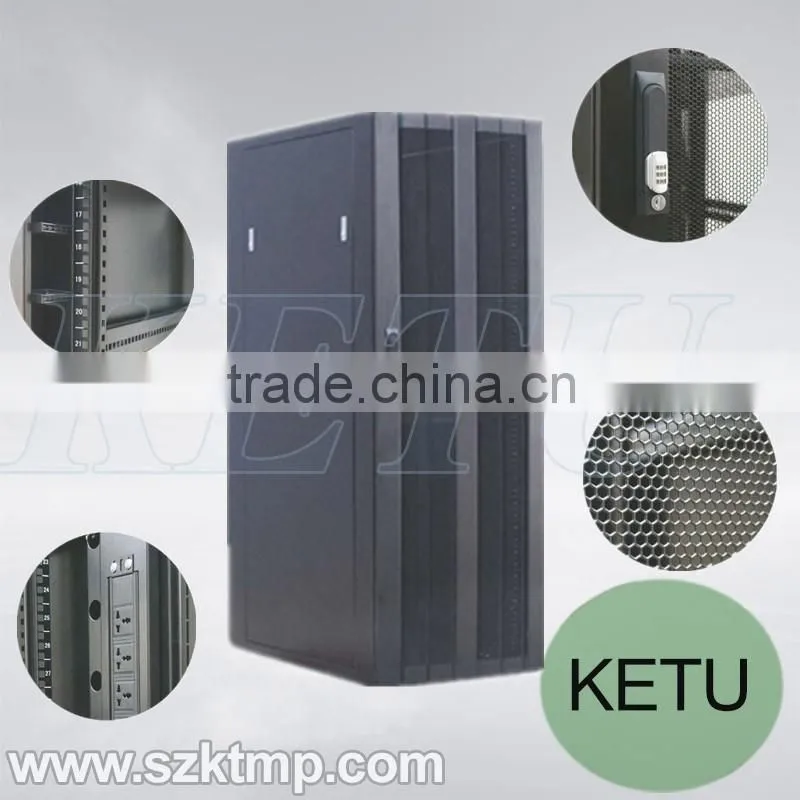

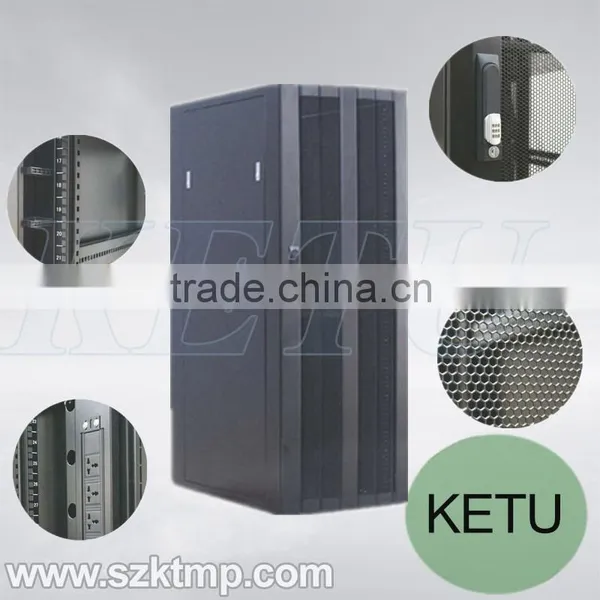

custom 19" metal server enclosure
Model: KTMP-SF-32
Specification :
Model |
H2000*W600*D1100 |
Capacity |
42U |
standard |
Comply with ANS/EIA RS-310-D,IEC297-2,DIN4149,PART1,DIN41491 Standard |
IP grade |
IP20 |
Color |
RAL9004, RAL9005, RAL7035 etc |
Thickness: |
Mounting profile 2.0mm;the others:1.0-1.2mm |
Material: |
SPCC quality cold rolled steel |
Static Loading Capacity: |
1000Kgs |
Packing |
assembled: plastic bag, then covering corrugated case,wooden case for optional |
Surface finish: |
Decreasing, Pickling, Phosphoric, Power coated |
Door |
Mesh door |
Features :
1.Comply with ANSI/EIA ,RS-310-D,IEC297-2,DIN41494,PART1,DIN41494,PART7, ETSI standard.
It is compatible with international standard, metric standard.
2.Materials:SPCC quality cold rolled steel, mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.
3.Optional doors: tempered glass door or Vented/perforated door mesh door single-door or double-door
4.Adjustable feet and heavy duty castors are available simultaneously.
5.Cable entry on the top cover and bottom panel with adjustable sizes.
6.Removable side panels to maintain easily.
7.Optional installation of plinth to enable cabinets fixation, under-base cable entry/ventilation.
8.Optional accessories for fan unit, fixed shelf, sliding shelf, PDU and cable manager, etc. PDU can be in different standard, like European standard, American Standard.
Details Show :
Main Parts :
No. |
Name |
QTY |
Material |
Remarks |
|
600w |
800w |
||||
1 |
Frame |
1 |
1 |
SPCCT=1.5 |
9 folds profiled bracket |
2 |
Front door |
1 |
1 |
SPCCT=1.2 |
Flat door with vented holes , optional |
3 |
Front door lock |
1 |
1 |
—— |
MS831/optional |
4 |
Left rear door |
1 |
1 |
SPCCT=1.2 |
Flat door with vented holes , optional |
5 |
Rear door lock |
1 |
1 |
—— |
M818/optional |
6 |
Right rear door |
1 |
1 |
SPCCT=1.2 |
Flat door with vented holes , optional |
7 |
Top cover |
1 |
1 |
SPCCT=1.2 |
Fan tray is available |
8 |
Side Panel |
2 |
2 |
SPCCT=1.2 |
|
9 |
Castor setup panel |
2 |
2 |
SPCCT=2.0 |
|
10 |
Castor |
4 |
4 |
—— |
|
11 |
Support feet |
4 |
4 |
—— |
M12 |
12 |
Mounting beam |
4/2 |
12/8 |
SPCCT=1.5 |
Below 27U(include 27U):2pcs, 800w cabinet:12pcs |
13 |
Mounting profile |
4 |
4 |
SPCCT=2.0 |
|
14 |
Spacer |
no |
12/8 |
SPCCT=2.0 |
Only for 800W cabinet / Below 27U(include 27U):8pcs |
15 |
Cable management holder with cover |
no |
2 |
SPCCT=1.2 |
Only for 800W cabinets |
16 |
Bottom panel |
1 |
1 |
—— |
Optional accessories |
Width: 600mm/800mm;
Depth: 600/800/900/960/1000/1100/1200mm
Height: 22/27/32/35/37/42/45/47U
Remark: we mainly produce the customized sheet metal parts, all the products display here are to show our business scope only. Thanks!
Advantage :
1.Secure,firm and reliable
2. Easy to maintain equipment
3. Two Packing Ways:
1).Assembly packing to save labour cost, ready to resell or use
2).Disassembly packing to save space and transport cost, easy to assemble
4.Certification: ISO 9001:2000
5. OEM/ODM service available
Other Series :
Company Introduction :
Shenzhen KTMP Technology Company Limited is a professional sheet metal products
manufacturer . As a skilled manufacturer in sheet metal processing industry for 12 years , KTMP is a
company with the whole line of designing , producing , selling and trading a standard series of
products while continually making strides in new product development . Welcome to OEM all kinds of
network/ server cabinets .
Certification :
FAQ :
Your satisfaction is our greatest feedback.
Q:If OEM available?
A:Yes, we provide all of our products OEM.
Q:What are your company normal payment?
A:We accept L/C; T/T; D/P; D/A; Western Union;
Q: What are your company normal export terms?
A:We normally export with DHL EMS FedEX UPS and so on.
Q:Is sample available?
A:Sample is available.
