Product Details
Place of Origin: | Guangdong, China | Brand Name: | KTMP | Model Number: | KTMP-SF-34 |
Protection Level: | IP65 | Type: | Distribution Box | External Size: | Optional |
Product Description

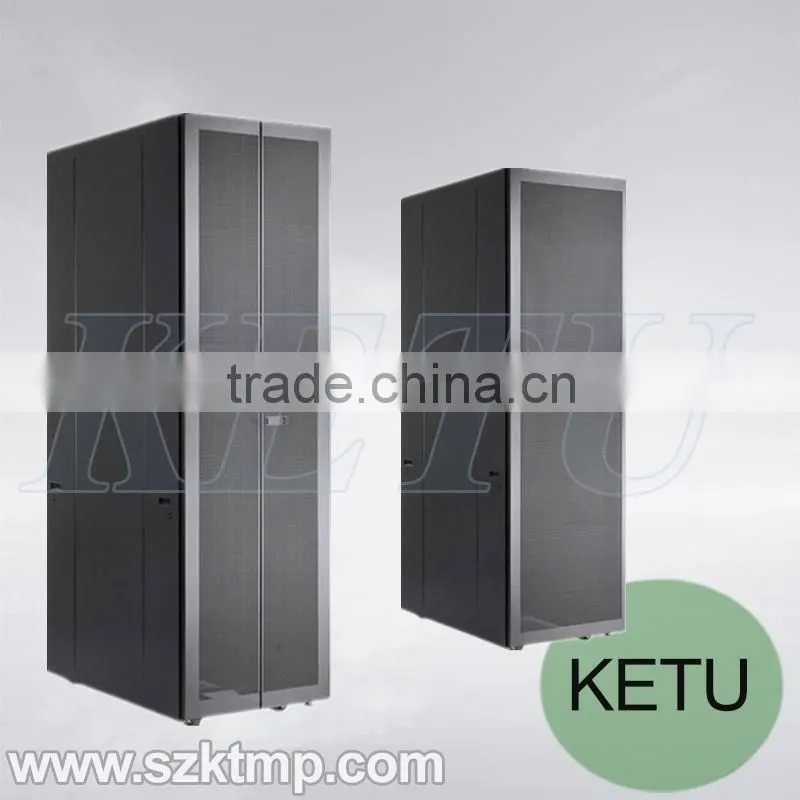

19'' rack server cabinet with mesh door
Model: KTMP-SF-34
Specification :
Model | 600*1000*42U |
Capacity | 42U |
Standard | Comply with ANS/EIA RS-310-D,IEC297-2,DIN4149,PART1,DIN41491 Standard |
IP grade | IP20 |
Color | RAL9004, RAL9005, RAL7035 etc |
Thickness: | Mounting profile 2.0mm;the others:1.0-1.2mm |
Material: | SPCC quality cold rolled steel |
Static Loading Capacity: | 1000Kgs |
Packing | assembled: plastic bag, then covering corrugated case,wooden case for optional |
Surface finish: | Degreasing, Pickling, Phosphating, Powder coating |
Door | front single mesh door & double open mesh door |
Features :
1.Comply with ANSI/EIA ,RS-310-D,IEC297-2,DIN41494,PART1,DIN41494,PART7, ETSI standard.
It is compatible with international standard, metric standard.
2.Materials:SPCC quality cold rolled steel, mounting profile 2.0mm, mounting angle 1.5mm, others 1.2mm.
3.Optional doors: tempered glass door or Vented/perforated door mesh door single-door or double-door
4.Adjustable feet and heavy duty castors are available simultaneously.
5.Cable entry on the top cover and bottom panel with adjustable sizes.
6.Removable side panels to maintain easily.
7.Optional installation of plinth to enable cabinets fixation, under-base cable entry/ventilation.
8.Optional accessories for fan unit, fixed shelf, sliding shelf, PDU and cable manager, etc. PDU can be in different standard, like European standard, American Standard.

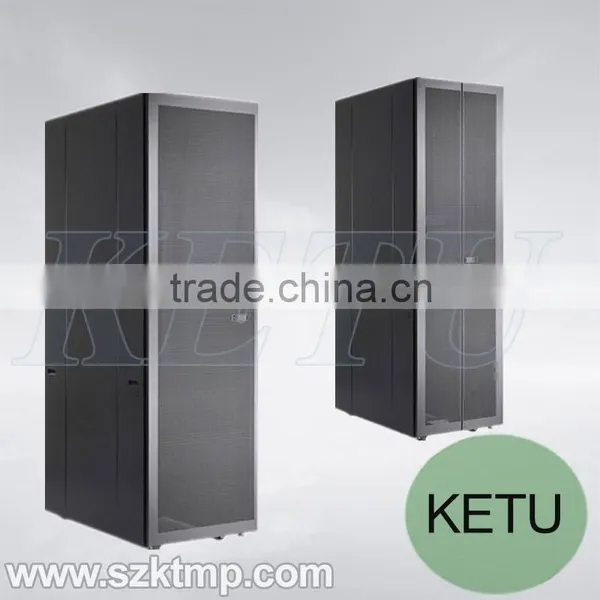

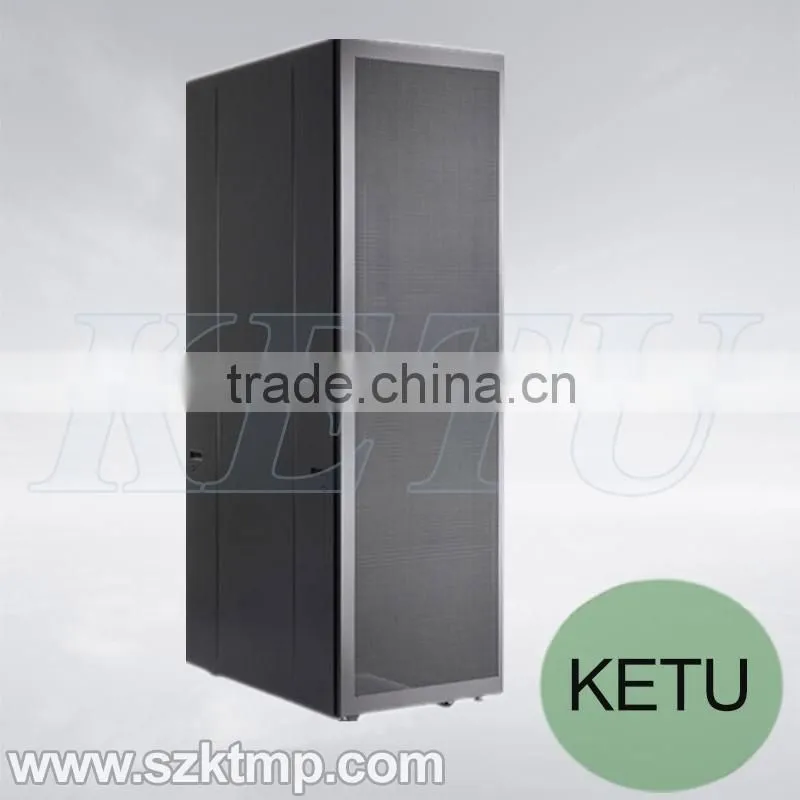

Picture Show :
Main Component :
S/N | Specification | Quantity | Material | Surface Finish | Remark |
1 | Top cover | 1 | SPCC cold rolled steel 1.2 | Power coated | --- |
2 | Fan unit | 1 | SPCC cold rolled steel 1.2 | Power coated | --- |
3 | Mounting angle | 6 | SPCC cold rolled steel 1.2 | Power coated | --- |
4 | Side panel | 2 | SPCC cold rolled steel 1.2 | Power coated | Removable steel door |
5 | frame | 1 | SPCC cold rolled steel 1.5 | Power coated | --- |
6 | Mounting profile | 4 | SPCC cold rolled steel 2.0 | --- | --- |
7 | Front door | 1 | 5mm toughened glass | Power coated | single vented |
8 | Advanced moon-shape lock | 6 | --- | --- | With 12 keys |
9 | Bottom panel | 3 | SPCC cold rolled steel 1.2 | Power coated | --- |
10 | M12 adjustable feet | 4 | --- | --- | --- |
11 | 2heavy duty castor | 4 | --- | --- | --- |
12 | Vented rear door | 2 | SPCC cold rolled steel 1.2 | Power coated | left and right |
Width: 600mm/800mm;
Depth: 600/800/900/960/1000/1100/1200mm
Height: 22/27/32/35/37/42/45/47U
Remark: we mainly produce the customized sheet metal parts, all the products display here are to show our business scope only. Thanks!
Advantage :
1.Secure,firm and reliable
2. Easy to maintain equipment
3. Two Packing Ways:
1).Assembly packing to save labour cost, ready to resell or use
2).Disassembly packing to save space and transport cost, easy to assemble
4.Certification: ISO 9001:2000
5. OEM/ODM service available
Other Series :
Company Introduction :
Shenzhen KTMP Technology Company Limited is a professional sheet metal products
manufacturer . As a skilled manufacturer in sheet metal processing industry for 12 years , KTMP is a
company with the whole line of designing , producing , selling and trading a standard series of
products while continually making strides in new product development . Welcome to OEM all kinds of
network/ server cabinets .
Certification :
FAQ :
Your satisfaction is our greatest feedback.
Q:If OEM available?
A:Yes, we provide all of our products OEM.
Q:What are your company normal payment?
A:We accept L/C; T/T; D/P; D/A; Western Union;
Q: What are your company normal export terms?
A:We normally export with DHL EMS FedEX UPS and so on.
Q:Is sample available?
A:Sample is available.
