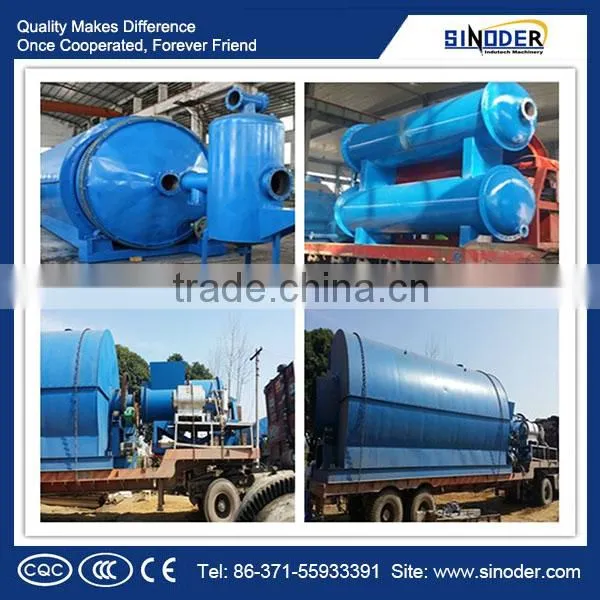

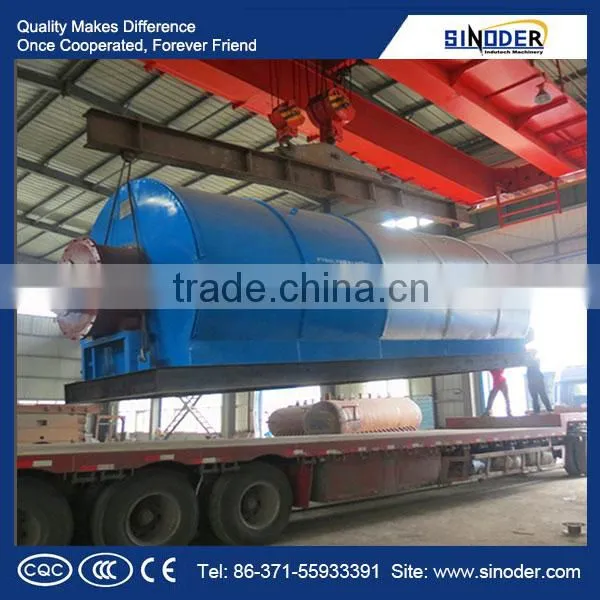

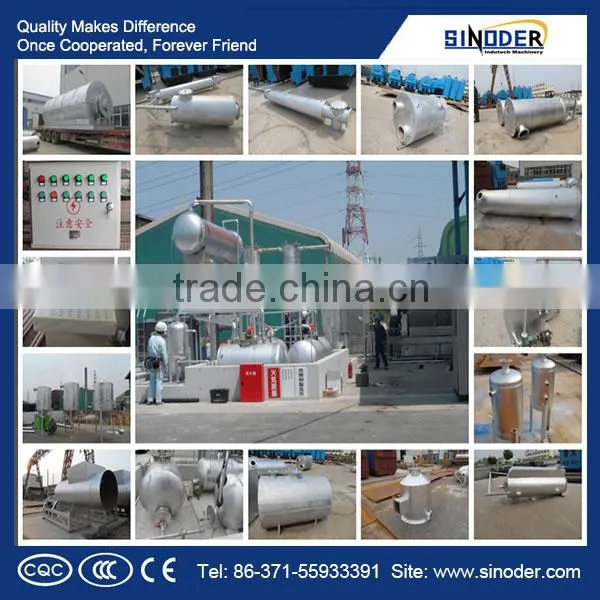

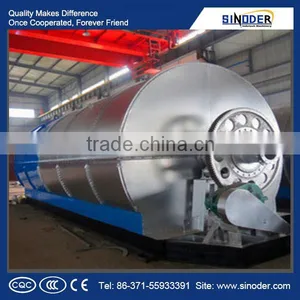

20T/D waste tire pyrolysis plant ,waste plastic pyrolysis plant

Brief introduction of tire pyrolysis machine

Waste tire pyrolysis machine is used for recycling waste tire,rubber,plastic and pyrolyze those waste into reclaimed tyre oil.

After the waste tires being processed by the tire pyrolysis machine,it will come out tire oil(fuel oil) ,carbon black,steel wire.

Tire oil (Fuel oil)

The fuel oil can be sold directly.It can be widely used for Iron and Steel Plant,smelting plant,restaurant,bathing center,etc.

Or combined with our oil distillation machine to further refine the fuel oil,thus you can get national standard diesel and gasoline,it can be used for cars,vessels and create huge profits for you.

Technology : Waste to energy using pyrolysis technology

Main process of tire pyrolysis equipment

1.Cut a whole car, bus or truck tire into 7-8 pieces.

2.Feed the furnace with the tire pieces.

3.After the tires are loaded, burn the hearth and start to heat the furnace, then start the power.

4. When the temperature reach 180℃, the oil gas begins to generate, it passes the interface channel and then goes into theatmolysis tower.

5.The heavy and light oil gas are separated in the atmolysis tower, the heavy one precipitate in the bottom, and the light one keeps on moving and going through the catalyst in the headpiece.(the quality of the oil catalyzed by the catalyst is better than the one never been catalyzed).

6. The oil gas catalyzed continues to pass the pipeline, and is turned into liquid fuel oil after the cooling of two condensers.

7. The fuel oil flows into the oil-gas separator,andprecipitate in the bottom. Till the whole process is finished, we collect the oil by the oil-out.

8.HC gas generates while the system generates the oil gas, when the fuel oil remains in the bottom of the separator, it goes on passing the pipeline, and goes into the gasholder finally.

9. One part of the HC gas is leaded on to the hearth and burnt as fuel there; while the other part is burnt in the burner.

10. In addition, the smoke dust produced by burning the fuel goes into the smoke dust processing system forpurification treatment.

The whole system output into the air is only the water steam, so it can not affect environment.

Oil yield for different raw material

 Final product usage

Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing.

1.Pre-sale services:

1) Selecting equipment type;

2) Designing and fabricating the products in accordance with the special requirements of the clients;

3) Training technical personnel for our clients;

4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.

2.Services provided during the sale:

Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.

1) Checking products acceptance ahead of delivery;

2) Introducing the service system to our clients.

3. After-sale services:

Improve the added value of our products, and let the clients free from the using troubles:

1) Assisting the clients preparing for the first construction scheme;

2) Installing and testing the equipments;

3) Training the first-line operators on site;

4) Examining the equipment regularly;

5) Taking the initiatives to eliminate the failure(s) rapidly at site;

6) Distributing the guarantee fittings door-to-door;

7) Providing technical exchanging;

8) Providing maintenance for big item

1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.

2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other                          Equipment will be packed by Color-Stripes Plastic Cloth.

3. Or as per customer's requirements.

If you want to know more information , Pls to contact us

Tel: 0371 55933391           Fax: 0371 55919082
