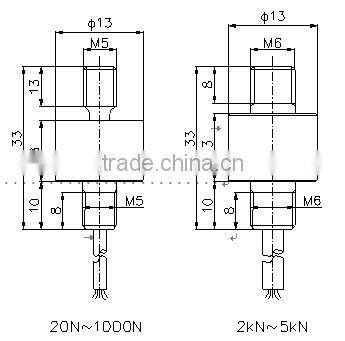

T302 compression load cell ,tension load cell ,pressure sensor used for hopper scale, industrical measuring
Brief introduction of compression load cell T302
Miniature load cell,low profile,small deflection
Made of stainless steel
Tension and compression application
Mainly used for pull and push dynamometer,hopper scale and industrial measuring system
Main parameter of T302 Load cell
Specifications |
Technique |
Capacity |
20,50,100,150,200,300,500N 1,2 ,3,4,5kN |
Rated output |
1.0±10%mV/V |
Zero balance |
±5% F.S. |
Non-linearity |
0.2%F.S. |
Hysteresis |
0.2%F.S. |
Repeatability |
0.2%F.S. |
Creep(30min) |
0.1%F.S. |
Temp.effect on output |
0.05%F.S./10℃ |
Temp.effect on zero |
0.05%F.S./10℃ |
Input impedance |
1000±100Ω |
Output impedance |
1000±100Ω |
Insulation |
≥5000MΩ/100VDC |
Recommended excitation |
5~10V |
Maximum excitation |
15V |
Compensated temp range |
-10~60℃ |
Operation temp range |
-20~80℃ |
Safe overload |
150%F.S. |
Ultimate overload |
200%F.S. |
Cable size |
φ2×1500mm |
Weight approx. |
0.1kg |
Material |
Stainless Steel |
IP Class |
IP66 |
