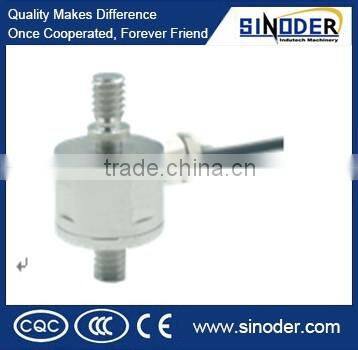

Stainless steel T303 load cell ,weighting sensor ,hopper scale load cell
Brief introduction of load cell T303
low profile,small deflection
Made of stainless steel
Tension and compression application
Mainly used for pull and push dynamometer,hopper scale and industrial measuring system
Main technical parameter : Load cell T303
Specifications |
Technique |
Capacity |
50,100,150,200,250,300N 500,1000,2000N |
Rated output |
2.0±10%mV/V |
Zero balance |
±1% F.S. |
Non-linearity |
0.25%F.S. |
Hysteresis |
0.25%F.S. |
Repeatability |
0.25%F.S. |
Creep(30min) |
0.25%F.S. |
Temp.effect on output |
0.05%F.S./10℃ |
Temp.effect on zero |
0.05%F.S./10℃ |
Input impedance |
350±10Ω |
Output impedance |
350±5Ω |
Insulation |
≥5000MΩ/100VDC |
Recommended excitation |
10V |
Maximum excitation |
15V |
Compensated temp range |
-10~60℃ |
Operation temp range |
-20~80℃ |
Safe overload |
150%F.S. |
Ultimate overload |
200%F.S. |
Cable size |
φ3×1500mm |
Material |
Stainless Steel |
IP Class |
IP67 |
