Home > Products > Sensor and Bearing > 10kg weighting scale load cell ,miniature sensor
10kg weighting scale load cell ,miniature sensor
- 1000 Piece / Pieces per Month
- China Qingdao Shanghai Tianjin seaport
- T/T
Product Details
Place of Origin: | Henan, China | Brand Name: | SIONDER | Model Number: | T704 |
Usage: | Pressure Sensor | Theory: | Resistance Sensor | Output: | Analog Sensor |
Product Description

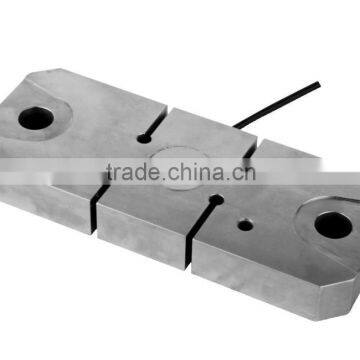

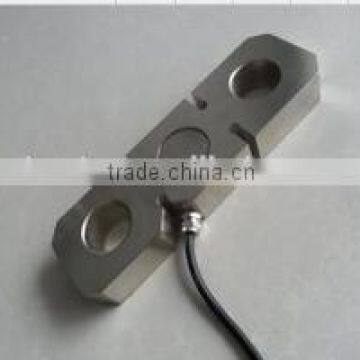

10kg weighting scale load cell ,miniature sensor
Single load cell T704 :
1. Made of Stainless Steel,Strong stability
2. Used in various automated stamping applications,IP68 protection
3. Mainly used for Food and pharmaceutical industry and industrial measuring system
Specifications | Technique |
Capacity | 10,20,50,100kg |
Accuracy class | C3 |
Rated output | 2.0±10%mV/V |
Zero balance | ±5%F.S. |
Non-linearity | 0.0166%F.S. |
Hysteresis | 0.0166%F.S. |
Repeatability | 0.018%F.S. |
Creep(30min) | 0.0166%F.S. |
Temp.effect on output | 0.0175%F.S./10℃ |
Temp.effect on zero | 0.0125%F.S./10℃ |
Input impedance | 390±5Ω |
Output impedance | 350±5Ω |
Insulation | ≥5000MΩ/100VDC |
Recommended excitation | 5V |
Maximum excitation | 12V |
Compensated temp range | -10~40℃ |
Operation temp range | -10~50℃ |
Safe overload | 150%F.S. |
Ultimate overload | 300%F.S. |
Cable size | Φ5.4×1500mm |
Weight approx. | 0.5kg |
Material | Stainless Steel |
IP Class | IP68 |
Max.platform size | 500mm×400mm |
we also sell other model load cell for your reference :such as pressure sensor, S type load cell , miniature sensor, parallel beam load cell, double shear beam type load cell, spoke type load cell , column type load cell , digital load cell, elevator shensor, temperature sensor .
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
Sinoder offer not only products with good quality and competitive price, but also top service and solution.
