kitchen scale load cells,bathroom scale load cell,load cell for silo

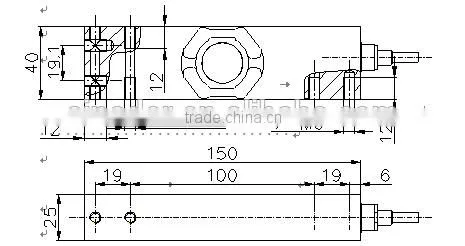

Single load cell T704 :
1. Made of Stainless Steel,Strong stability
2. Used in various automated stamping applications,IP68 protection
3. Mainly used for Food and pharmaceutical industry and industrial measuring system
Specifications |
Technique |
Capacity |
10,20,50,100kg |
Accuracy class |
C3 |
Rated output |
2.0±10%mV/V |
Zero balance |
±5%F.S. |
Non-linearity |
0.0166%F.S. |
Hysteresis |
0.0166%F.S. |
Repeatability |
0.018%F.S. |
Creep(30min) |
0.0166%F.S. |
Temp.effect on output |
0.0175%F.S./10℃ |
Temp.effect on zero |
0.0125%F.S./10℃ |
Input impedance |
390±5Ω |
Output impedance |
350±5Ω |
Insulation |
≥5000MΩ/100VDC |
Recommended excitation |
5V |
Maximum excitation |
12V |
Compensated temp range |
-10~40℃ |
Operation temp range |
-10~50℃ |
Safe overload |
150%F.S. |
Ultimate overload |
300%F.S. |
Cable size |
Φ5.4×1500mm |
Weight approx. |
0.5kg |
Material |
Stainless Steel |
IP Class |
IP68 |
Max.platform size |
500mm×400mm |

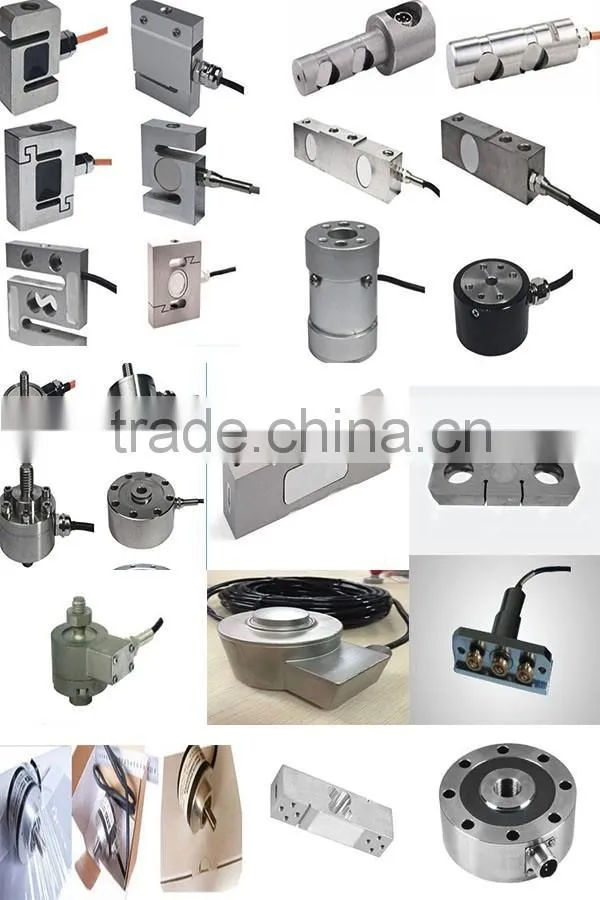

we also sell other model load cell for your reference :such as pressure sensor, S type load cell , miniature sensor, parallel beam load cell, double shear beam type load cell, spoke type load cell , column type load cell , digital load cell, elevator shensor, temperature sensor .
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
Sinoder offer not only products with good quality and competitive price, but also top service and solution.
Website:
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
If you want to know more information , Pls to contact us
Tel: 0371 55933391 Fax: 0371 55919082
