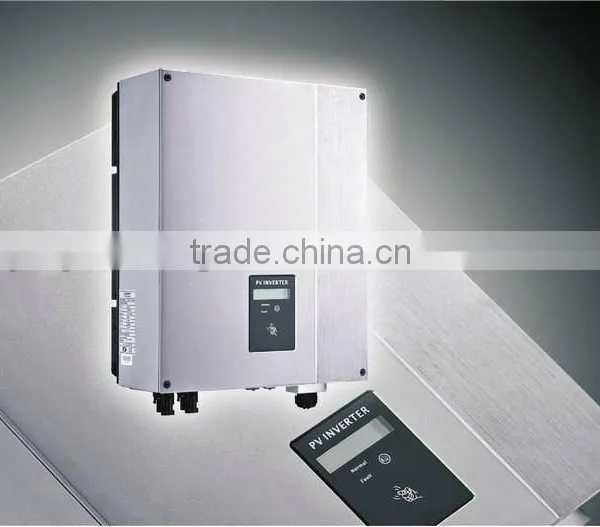

Help Center3600MTL pv Inverter
Related Products
Specifications
1.Leading-Edge Technology2.Maximum efficiency of 97.9 % and wide input voltage range
3.Bluetooth technology
General Descriptions
Leading-Edge Technology
> Maximum efficiency of 97.9 % and wide input voltage range
> Muti MPP controller
> Internal DC switch
> Transformerless H6 topology
> Compact design
> Muti MPP control
> MTL-String
> Bluetooth technology
> Easy installation
> Sound control
Europe /Australia ENS
> Simple national setting of line supply monitoring (ENS)
> Easy country configuration
> Muti-language display
> Currently available for Germany,France,UK,Austria,Switzerland,Italy and Spain
Communications
> RS485 /RS232/GPRS interfaces
> Computer monitoring software
Safety
> Full protection functions:DC reverse polarity, AC short-circuit protection, ground fault monitoring, grid monitoring, integrate all-pole sensitive, leakage current monitoring unit.
> Standards complied:CE, VDE 0126-1-1,IEC 62109,RD 1663,G83,EN 61000-6-1,EN61000-6-2 ,EN61000-6-3,EN61000-6-4,AS4777, AS/NZS 3100, VDE-AR-N4105, CEI 0-21
Technical Specifications
Model |
3600MTL |
4200MTL |
5000MTL |
INPUT DATA |
|
|
|
Max. DC Voltage |
600V |
600V |
600V |
MPP Voltage Range |
120V~550V |
120V~550V |
120V~550V |
Max. DC Power |
3800W |
4400W |
4600W |
Max. Input Current |
10A/10A |
15A/15A |
15A/15A |
Number of MPP Trackers/ |
2/2 |
2/2 |
2/2 |
Strings Per MPP Tracker | |||
OUTPUT DATA |
|
|
|
Nominal AC Output |
3600W |
4200W |
4600W/5000W |
Max.Output Current |
18A |
21A |
25A |
Grid Voltage Range |
180~280V |
180~280V |
180~280V |
Rated Grid Frequency |
50Hz/60Hz |
50Hz/60Hz |
50Hz/60Hz |
Output Current THD |
< 3% |
< 3% |
< 3% |
AC connection |
Single phase |
Single phase |
Single phase |
SYSTEM |
|
|
|
Max. Efficiency |
97.60% |
97.90% |
97.90% |
Euro. Efficiency |
97.00% |
97.40% |
97.40% |
Protection Degree |
IP65(outdoor) |
IP65(outdoor) |
IP65(outdoor) |
Operating Temperature |
-25~+60°C |
-25~+60°C |
-25~+60°C |
Cooling Method |
No fan |
No fan |
No fan |
DISPLAY AND COMMUNICATIONS | |||
Display |
LCD |
LCD |
LCD |
Standard Comm. Interfaces |
RS485/RS232 |
RS485/RS232 |
RS485/RS232 |
Optional Comm. Interfaces |
GPRS/blue tooth |
GPRS/blue tooth |
GPRS/blue tooth |
MECHANICAL DATA |
|
|
|
Dimensions(WxHxD) |
360/510/188mm |
360/510/188mm |
360/510/188mm |
Net Weight |
24kg |
24kg |
24kg |
