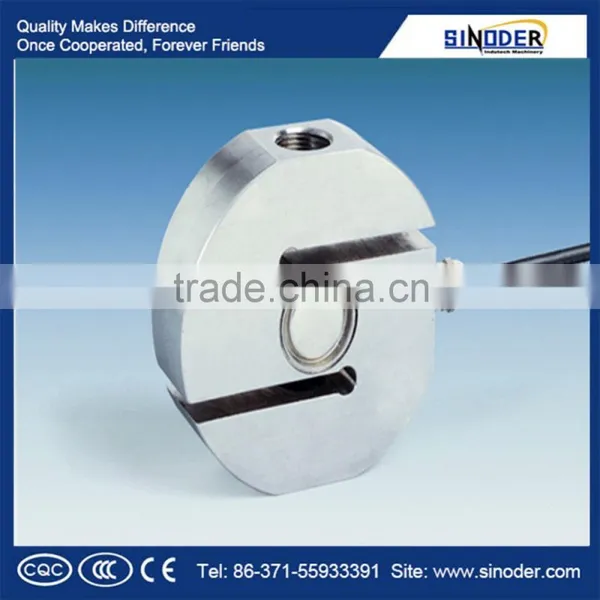

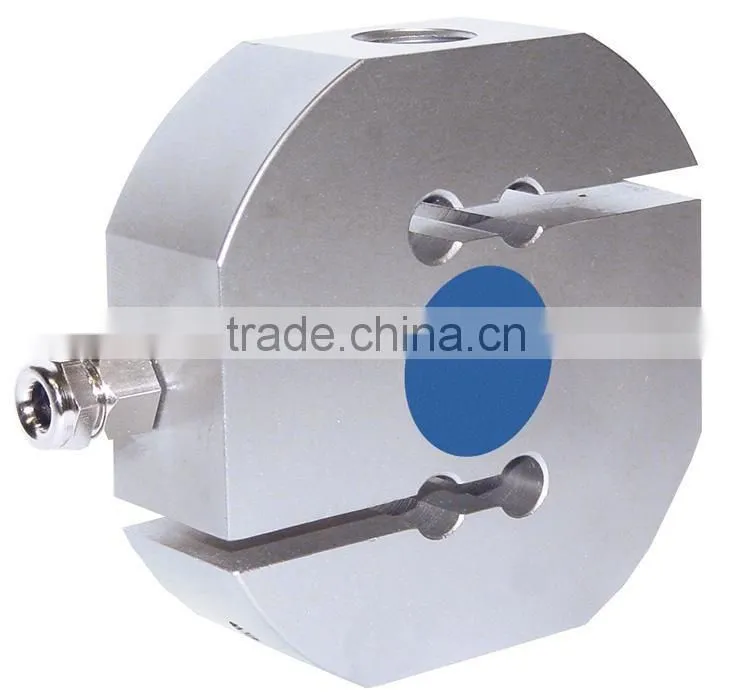

Help Center20kg to 10t Load Alloy Steel Load Cell Sensor for Sale
Related Products
-
Prices of Load CellUS$ 20 - 100MOQ: 100 Pieces -
Wholesale Load Sensor ManufactureUS$ 20 - 100MOQ: 100 Pieces
-
Factory Price Load Cell SensorUS$ 20 - 100MOQ: 100 Pieces
-
Microwave Motion Sensor Modulemicrowave Motion Sensor ModuleUS$ 20 - 100MOQ: 100 Pieces
-
Electronic Weight Sensor With a Variety of Range for SaleUS$ 20 - 100MOQ: 100 Pieces
Alloy Steel Load cells for sale
Parameter
Model |
SNHV-S05 |
Rated capacities(Emax) |
20,30,50,75,100,150,200,250,300,500,750kg1.2, 1.5,2,2.5,3,5,7.5,10t |
Sensitivity |
2.0±0.002mv/v |
Total error |
±0.02 percent |
Creep(30min) |
±0.02 percent |
Zero balance |
±1 percent |
TCO |
±0.02 percent |
TC SPAN |
±0.02 percent |
Input resistance |
400±10Ω |
Output resistance |
350 ±2Ω |
Insulation resistance |
≥5000MΩ |
Temperature range,compensated |
-10~+40℃ |
Temperature range,operating |
-30~+70℃ |
Maximum safe overload |
120 percent F.S |
Ultimate overload |
200 percent |
Excitation,recommend |
5V~12V DC |
Excitation,maximum |
15V DC |
Protection Class |
IP67(20-1000kg)IP68(1.2-7.5t) |
Construction |
Alloy Steel |
Cable |
Length:3m Diameter: Φ5mm(20-1000kg) Φ6mm(1.2t-10t) |
Send Inquiry to This Supplier
