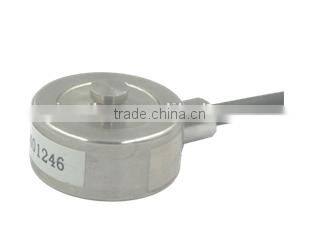

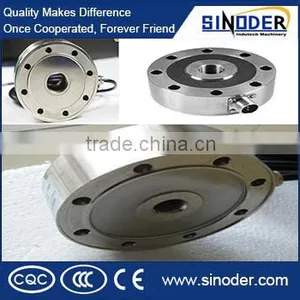

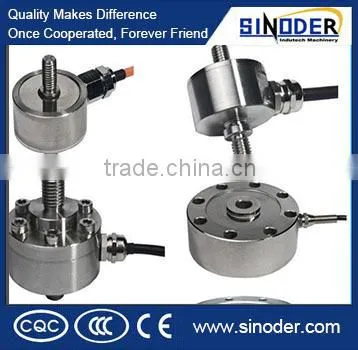

T102 compression load cell,force sensor,spoke compression type load cell
Brief introduction of compression load cell : T102
Small size,low profile,small deflection
Made of stainless steel
Customizabble
Suitable for force measurement in limited spaces.Widely used for industrial measurement and control, R&D and other applications

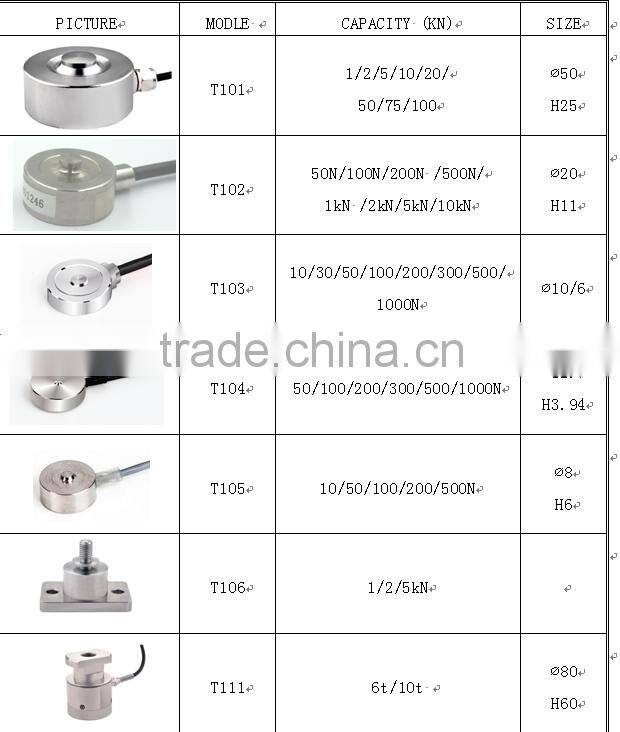

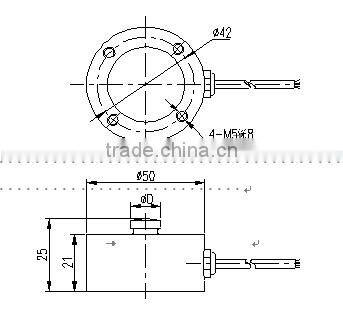

T102
Main technical parameter
Specifications |
Technique |
Capacity |
50,100,200,500N 1,2,5,10kN |
Rated output |
1.0±20%mV/V |
Zero balance |
±2% F.S. |
Non-linearity |
0.20%F.S. |
Hysteresis |
0.20%F.S. |
Repeatability |
0.20%F.S. |
Creep(30min) |
0.20%F.S. |
Temp.effect on output |
0.05%F.S./10℃ |
Temp.effect on zero |
0.05%F.S./10℃ |
Input impedance |
350±5Ω |
Output impedance |
350±5Ω |
Insulation |
≥5000MΩ/100VDC |
Recommended excitation |
5V |
Maximum excitation |
10V |
Compensated temp range |
-10~60℃ |
Operation temp range |
-20~80℃ |
Safe overload |
150%F.S. |
Ultimate overload |
200%F.S. |
Cable size |
φ3×1500mm |
Weight approx. |
0.1kg |
Material |
Stainless Steel |
IP Class |
IP66 |
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
We sell load cell, high precision resistance strain gauge, sensor, fittings for electronic weighing apparatus and automatic control system .electronic products are with good performance and high-level quality, which are widely used in electronic weighing apparatus, metallurgy, construction machinery, chemical and other industries. The products are not only sold very well in domestic, but also welcomed in Europe, America, Southeast Asia and other main countries in abroad.
.
Sinoder offer not only products with good quality and competitive price, but also top service and solution.
Website:
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
If you want to know more information , Pls to contact us
Tel: 0371 55933391 Fax: 0371 55919082
