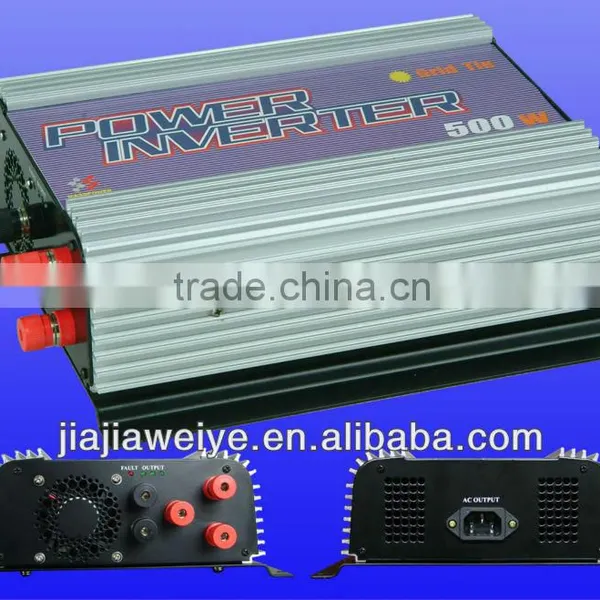

500w Wind Turbine Grid Tie Inverter Wind Turbines
US$ 145 - 160
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
cnjjwy
Model Number:
SUN-500G-WAL
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO or SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
cnjjwy
Model Number
SUN-500G-WAL
Output Power
401 - 500W
Output Type
Multiple
Size
332X265X135mm
Weight
3.5Kg
Input Voltage
10.8V ~ 30V / 22V~60V
Output Voltage
90V~130V/190V ~ 260V
Type
DC/AC Inverters
Output Frequency
46Hz ~ 65Hz
Output Current
2.2A
Specifications
advanced conversion technologysmall size, less weight,easy to use and causes less noise while working
safely,smoothly
Mechanical Specifications:
| Input | DC Input | ||
| Normal AC Output Power | 450W | ||
| Maximum AC Output Power | 500W | ||
| AC Output Voltage Range | 220V/230V/240V | 190V ~ 260V | |
| 110V/120V | 90V ~ 130V | ||
| AC Output Frequency Range | 46Hz ~ 65Hz | ||
| Total Harmonic Distortion(THD) | <5% | ||
| Power Factor | 0.99 | ||
| Input Voltage Range | 10.8V~30V ;22V~60V (test point is at the output of the rectifier) | ||
| Peak Inverter Efficiency | 92%(consumption of the rectifier is not calculated) | ||
| Standby Power consumption | <1.5W | ||
| Output Current Waveform | Pure Sine-wave | ||
| MPPT Function | Yes | ||
| Over Current Protection | Yes | ||
| Over Temperature Protection | Yes | ||
| Reverse Polarity Protection | Yes | ||
| Island Protection | Yes | ||
| Stackable | Yes | ||
| recommend dump load resistor | 5 ohm/500 watt | ||
| Operating Temperature Range | -40°C~85°C | ||
| N.W. | 3.5kg | ||
| G.W | 4.0kg | ||
| Dimension | 332×265×135 mm | ||
