Home > Electrical & Electronics > Inverter > Power Inverter > SUN-250G_WA 250w Grid Tie Inverter Wind

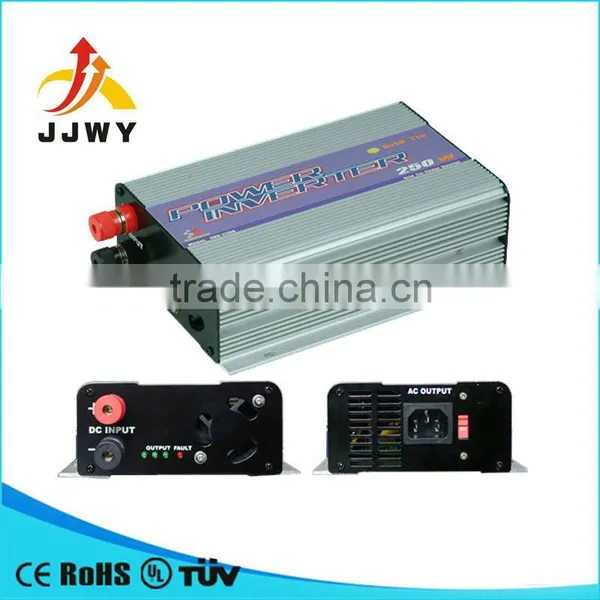

SUN-250G_WA 250w Grid Tie Inverter Wind
US$ 80 - 90
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
cnjjwy
Model Number:
SUN-250G_WA
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
cnjjwy
Model Number
SUN-250G_WA
Output Power
Other, 250W
Output Type
Multiple
Size
295x190x100mm
Weight
1.7Kg
Input Voltage
10.8V~30V or 22V ~ 60V
Output Voltage
90V~130V or 190V ~ 260V
Type
DC/AC Inverters
Output Frequency
46Hz ~ 65Hz
Output Current
1.14A
Specifications
advanced conversion technologysmall size, less weight,easy to use and causes less noise while working
safely,smoothly
u Electrical Specifications:
| Model | SUN-250GWA | |
| Input | AC Input | |
| Normal AC Output Power | 225W | |
| Maximum AC Output Power | 250W | |
| AC Output Voltage Range | Switch is at 230V Position |
190V ~ 260V |
Switch is at 115V Position |
90V ~ 130V | |
| AC Output Frequency Range | 46Hz ~ 65Hz | |
| Total Harmonic Distortion(THD) | <5% | |
| Power Factor | 0.99 | |
| Input Voltage Range | 10.8V ~ 30V / 22V~60V (the test point is at the output of the rectifier) | |
| Peak Inverter Efficiency | 92% | |
| Standby Power consumption | <1.5W | |
| Output Current Waveform | Pure Sine-wave | |
| MPPT Function | Yes | |
| Over Current Protection | Yes | |
| Over Temperature Protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Anti-Island Protection | Yes | |
| Stackable | Yes | |
u Mechanical Specifications:
| Operating Temperature Range | -10 °c ~ 45 °c |
| N.W. | 1.7Kg |
| G.W | 1.9Kg |
| Dimension | 295X190X100mm |
