Specifications
biomass sawdust burner1.material:bio pellets,wood waste etc.
2.capacity:50-600kg/h
Introduction:

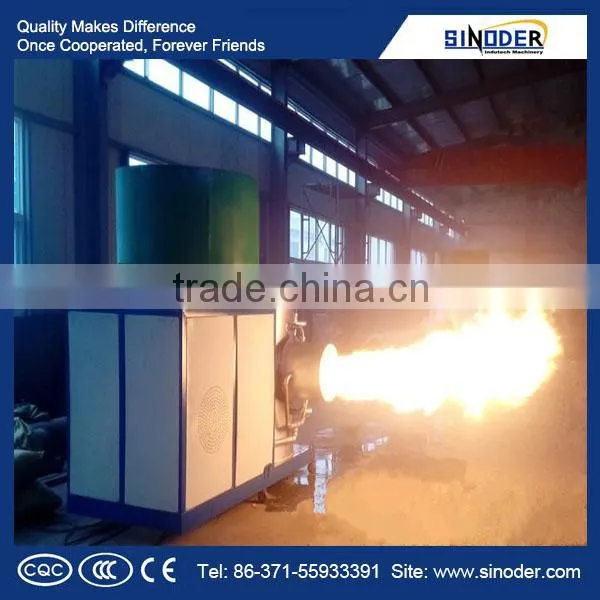

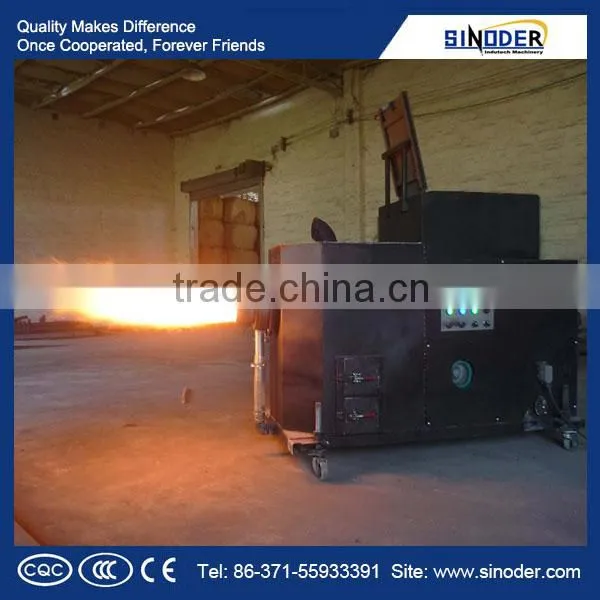

biomass sawdust burner boiler rotary dryer
Biomass burner is a kind of highly effective burning system. It is a systematized equipment which can substitude traditional fuel(coal, gas, oil) to provide heat sources for boiler or drying machine by taking use of the energy conversion in biomass materials. This equipment has smashing system and combustion system. It is the best choice for industries, enterprises and individuals to process indurstrial and agrocultural waste or reform and improve coal furnace,electrical furnace, oil furnace or gas furnace.
The biomass burner is designed and produced by our factory through many yearsefforts and research.We imported foreign techonology and combined with our countrys reality to produce this highly energy saving and environmental protection equipment. Our machine is suitable for many kinds of biomass materials. The equipment truly realizes effective and clean combustion of raw materials with the feature of energy saving and emission reduction.
Main Technical Parameter:
Model |
DZL1-1.25-M |
DZL2-1.25-M |
DZL3-1.25-M |
DZL4-1.25-M |
DZL6-1.25-M |
DZL8-1.25-M |
|
Rated capacity(t/h) |
1 |
2 |
3 |
4 |
6 |
8 |
|
Rated pressure(Mpa) |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
|
Thermal efficiency |
85% |
||||||
Fuel |
Biological pellets |
||||||
Fuel consumption(kg/h) |
175 |
350 |
520 |
700 |
1040 |
1400 |
|
|
External dimension |
Length(mm) |
3900 |
4800 |
5600 |
5900 |
7100 |
7700 |
Width(mm) |
1810 |
2170 |
2430 |
2430 |
3200 |
3200 |
|
Height(mm) |
3850 |
4150 |
4700 |
4700 |
6100 |
6200 |
|
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
The main products cover industrial drying machines,industrial crushingmachines, mineral processing machines, brick machines, biomass energetic machines, environment protection equipment, food oil press machines and other mechanical equipment. Our key product include stone crusher,sand maker, stone washing machine, ball mill, flotation cell, AAC block plant, rotaty drying machines, biomass burner, coal gasifier, oil press machine, packaging machine, breeding machines, fertilizer and pellets machineand other machines.
Packaging Detail:
Export standard container or nude package or in bulk or according to your order requirements, or we can give you the best suggestion.
Delivery Detail:
Within15--30 working days after receiving your 30% order payment
BSET SERVICE FOR CUSTOMERS:
1. Small trial order are acceptable for you to check our quality and service;
2. Bigger order with bigger discount;
3. Professional guidance are available all the time;
4. We can also help you to do ENGENEERING TEST in our own laboratory.
5. Professional technicians and skilled workers can promise you the top quality of world class;
6. Highly inspecting equipments in every working procedure, quality comes first;
7. Fast & Safe delivery .
Welcome to our factory in ZhengZhou, Henan province, China to have a visit.
To choose the appropriate biomass sawdust burner for you, we need to know the following information:
1.Material to be processed?
2.Capacity(tons or kg or litter per hour or day)?
3.Local power supply(voltage and frequency)?
4.Other special requirements.
If you want to know more information about the biomass sawdust burner and other machinery, pls do not hesitate to contact us.
