Specifications
rapeseed oil press machinehigh oil yield,pure oil
automatic oil press

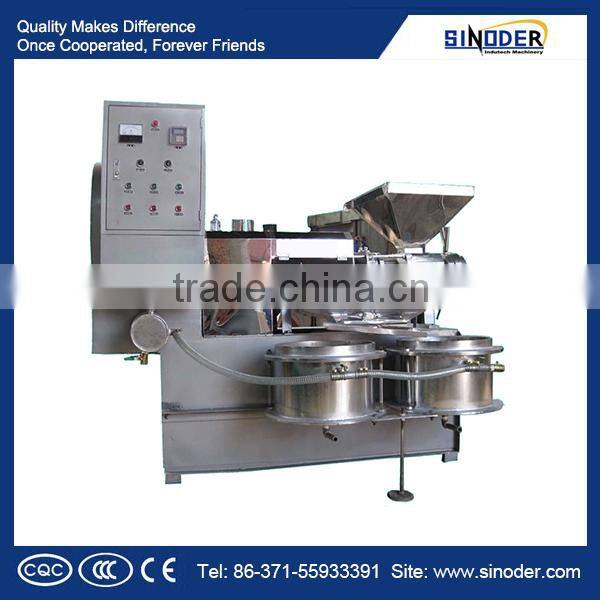

rapeseed oil press machine/ oil press machine / olive oil press machine for hot sale
Brief introduction of oil press machine
1)Oil press machine is widely used to process peanut, rice bran, soybean, rapeseed, cottonseed, sesame, sunflower, palm kernel, copra, grainy oil plant seeds as well as corn germ, etc. into high quality edible oil. Equipped with automatic temperature-controlling and oil filtering device, automatic screw oil press is more effeient and labor-saving.
2)Our 6YLseries oil press machine has multiple functions, including to screw oil press ,electrical element for heating chamber,vacuum filter for clearing oil .Before pressing some parts of the press such as the press chamber, press screw and press ring will be pre-heated. During pressing, the press can flite the oil in due time. Only one machine the user could get the better edible oil.
Feature of oil press machine
1. It can save labour and save cost : only 1 or 2people can finish the production.
2. Widely used to press various kinds of oil materials, like soybean, sunflower seeds,peanut, sesame,rapeseeds, flax seed, camellia, cotton seed, cashew, hemp seed, linseeds, coconut,and all the oil content crops.
3. Different oil materials have different oil yielding.
4. Small-land using: only 10-20square maters can meet the need of production.
5. The oil left in cake is less than 6% . And cake thickness can be adjusted once the machine stop running.
6. It is easy to operate . When operating, you should do as the instruction
Technical parameter
Screw type
Model |
6YL-80A |
6YL-100A |
6YL-120A |
6YL-130A |
|
Screw diameter |
80mm |
100mm |
120mm |
130mm |
|
Power |
Main Motor |
5.5kw |
7.5kw |
11kw |
18.5kw |
Vacuum pump |
0.55kw |
0.5kw |
1.1kw |
1.1kw |
|
Heater |
3kw |
3.5kw |
6kw |
6kw |
|
Capacity |
100-150kg/h |
200-250kg/h |
300~500kg/h |
450~600kg/h |
|
Specification(L*W*H ) |
1480*630*1570mm |
2200*810*1850mm |
2200*1650*1750mm |
2360*1090*1920mm
|
|
Weight |
700kg |
900kg |
1200kg |
1300kg |
|
Hydraulic Type:
Model |
SYY-190 |
SYY-190X |
SYY-220 |
Dia of oil cylinder(mm) |
190 |
190 |
220 |
Dia of cake cylinder(mm) |
220 |
230 |
248 |
Height of cake cylinder(mm) |
400 |
400 |
470 |
Valid feeding height(mm) |
355 |
355 |
430 |
Feed capacity (Kg) |
6.5 |
7.5 |
10 |
Capacity in one hour |
40-45kg |
50-55kg |
65-75kg |
System pressure (Mpa) |
60 |
60 |
60 |
Work Pressure (Ton) |
170 |
170 |
227 |
Materials Pressure(Mpa) |
44.7 |
41 |
47 |
Dimension(mm) |
1000*960*1460 |
1000*970*1460 |
1150*1000*1600 |
Weight(Ton) |
1 |
1.05 |
1.3 |

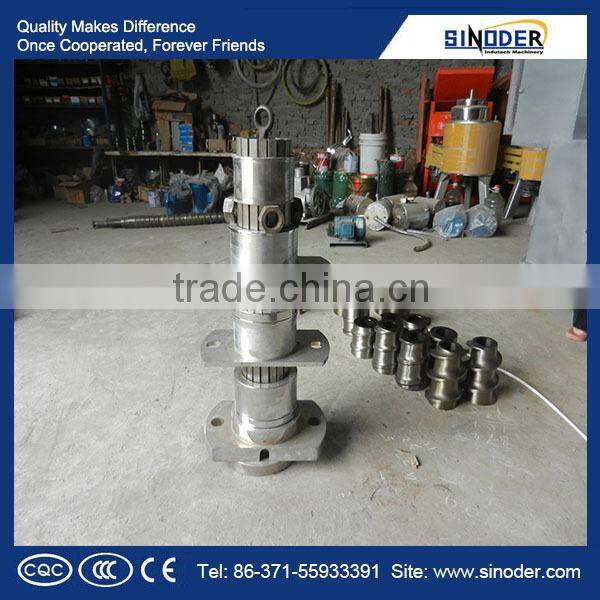

More picture
Raw material
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
The main products cover industrial drying machines,industrial crushing machines, mineral processing machines, brick machines, biomass energetic machines, environment protection equipment, food oil press machines and other mechanical equipment. Our key product include stone crusher,sand maker, stone washing machine, ball mill, flotation cell, AAC block plant, rotaty drying machines, biomass burner, coal gasifier, oil press machine, packaging machine, breeding machines, fertilizer and pellets machine and other machines.
Sinoder offer not only products with good quality and competitive price, but also top service and solution.
Website:
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
If you want to know more information , Pls to contact us
