Specifications
oil press machineEasy to operate, less labor
High oil rate, high economical profit

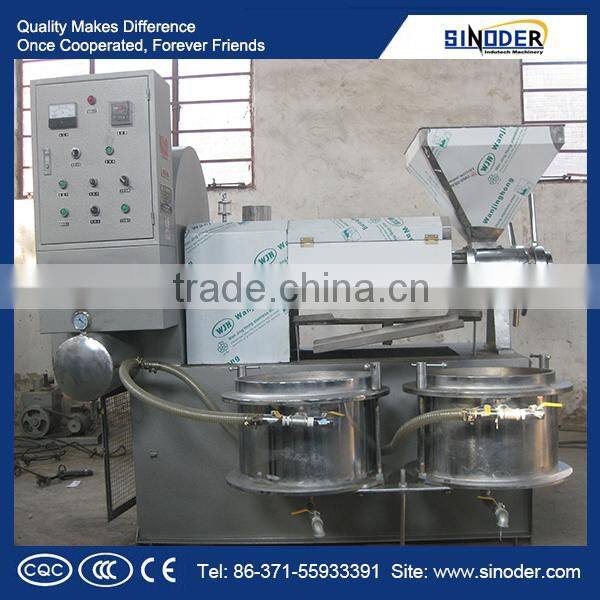

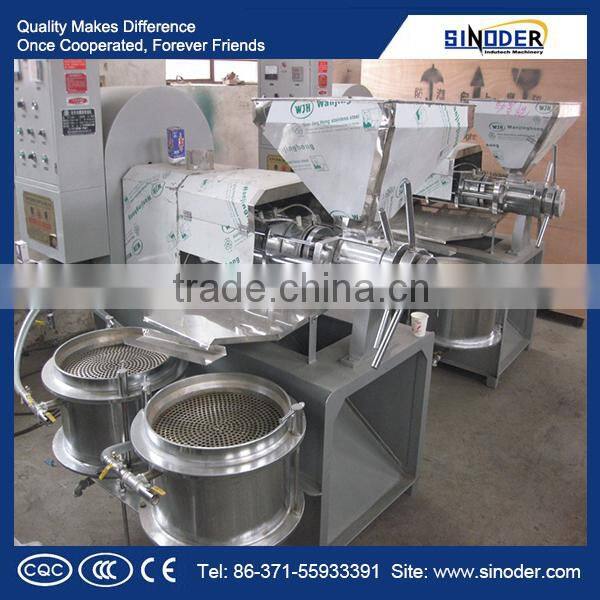

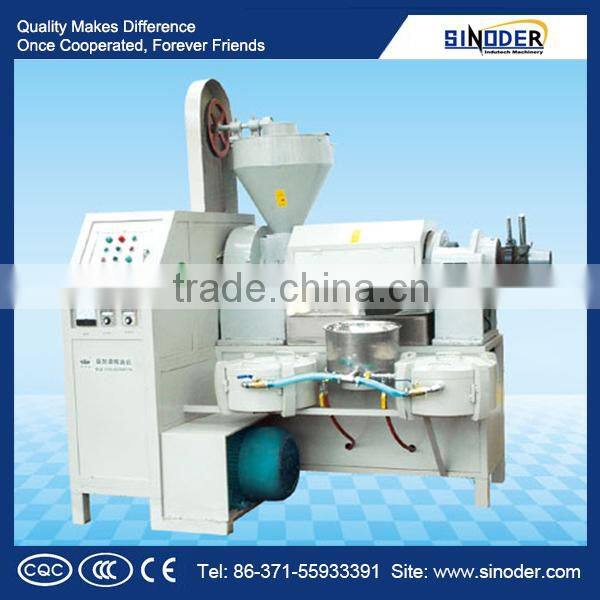

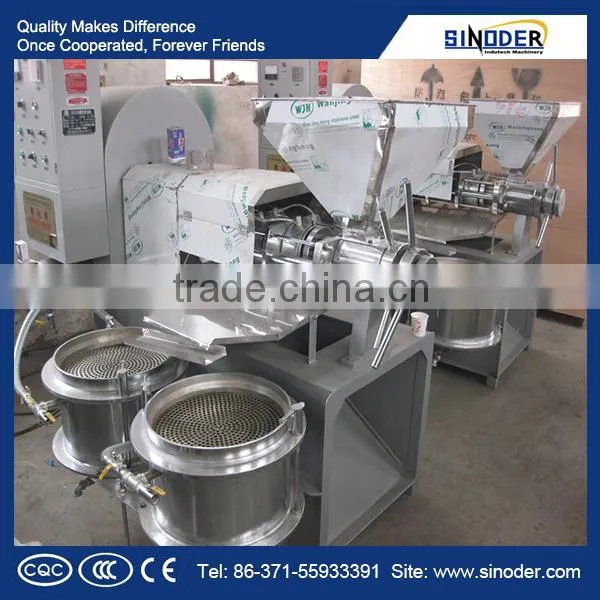

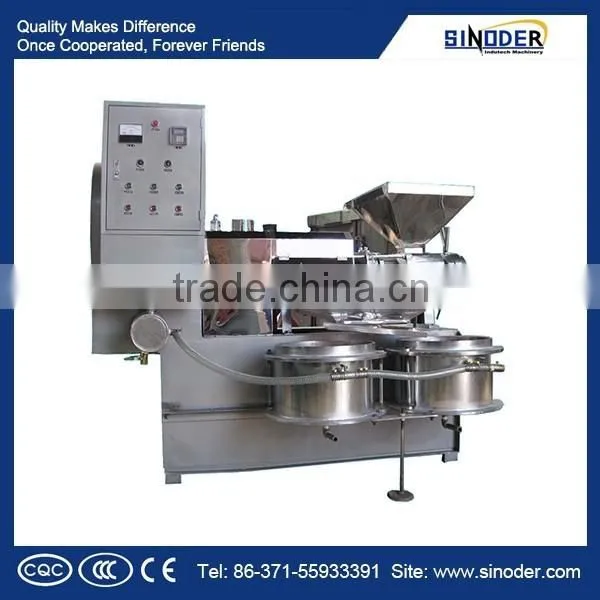

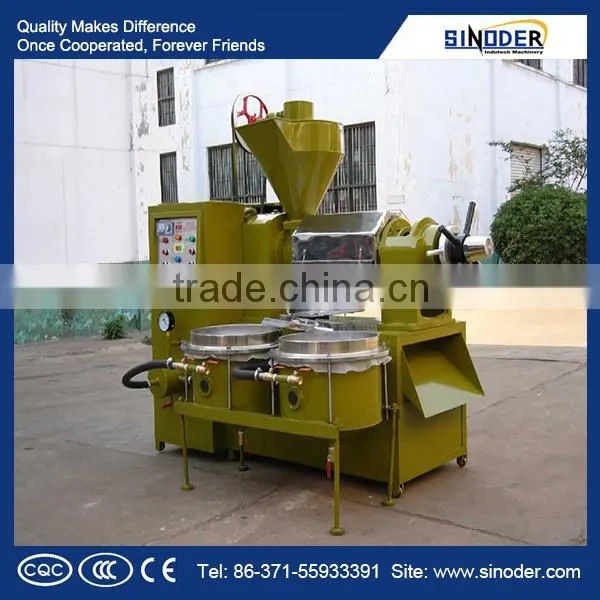

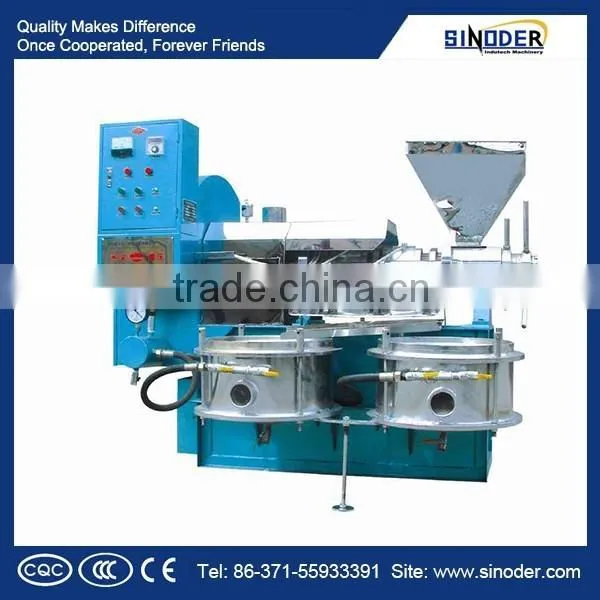

Supply soybean oil press machine /oil press machine to make edible oil
Brief introduction of oil press machine
Plant oils and animal fats are triglycerides, containing glycerine. The biodiesel process turns the oils and fats into esters, separating out the glycerine. The glycerine sinks to the bottom and the biodiesel floats on top and can be syphoned off.The process is cal led transest erification, which substitutes alcohol for the glycerine in a chemical reaction, using lye as a catalyst.Only give the small scale family biodiesel producing mill.
How to operate:
1.Ready the oil seeds and check the machine o assure its fuctions well.
2.Adjusting the oil expeller machine,such as electricity,handle flexibility,heating(accordingly)
3.Open the oil expeller,seeds put into the feeder.
4.Seeds pushed into the squeezing bolt,start oil pressing.
5.Crude oil out of Squeezing row,flow into the oil plate.
6.Then oil flow into vaccum filter,beging filteration
7.After filteration,pure oil out of the bottom pipe.
Feature
1.Saving labor: it can save 60% labor for equal output and 40% labor cost per day for one
or two people are able to make production.
2.Widely-used: it can be used to completely press more than 20 kinds of oil crops, such as peanuts, sesame, vegetable seeds, soybean, oil sunflower and flax by third levels for one time.
3.Pure oil quality: the vacuum oil filtering is used to remove residue so as to ensure the pure oil quality and meet the standard of health quarantine .
4.Small land-using: an area of 10-20 m2 workshop can meet the need of production.
5 Using vacuum filter, it is able to simply filter the crude oil after pressing
6. It is able to save labour, about 60% . One or two person is for per machine
7. Protection the environment, comparing with the traditional oil press machine,
Model |
D-1685 |
D-1688 |
ZL-120 |
|
Diameter of worm shaft (mm) |
80 |
100 |
120 |
|
Speed of worm shaft (r/min) |
60 |
40 |
36 |
|
Diameter of internal circle of pressing chest (mm) |
82 |
102 |
122 |
|
Power (kw) |
Main engine |
5.5 |
7.5 |
11 |
|
Heater |
3 |
3.5 |
4 |
Capacity (kg/h) |
80-160 |
150-260 |
260-400 |
|
Weight (kg) |
780 |
1100 |
1500 |
|
Size (L*W*H) (m) |
1.7*1.3*1.6 |
2.0*1.4*1.75 |
2.05*1.55*1.8 |
|
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
The main products cover industrial drying machines,industrial crushing machines, mineral processing machines, brick machines, biomass energetic machines, environment protection equipment, food oil press machines and other mechanical equipment. Our key product include stone crusher,sand maker, stone washing machine, ball mill, flotation cell, AAC block plant, rotaty drying machines, biomass burner, coal gasifier, oil press machine, packaging machine, breeding machines, fertilizer and pellets machine and other machines.
Sinoder offer not only products with good quality and competitive price, but also top service and solution.
Website:
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
If you want to know more information , Pls to contact us
Tel: 0371 55933391 Fax: 0371 55919082
