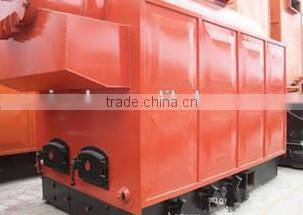

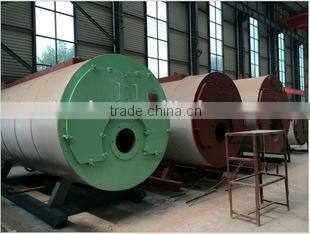

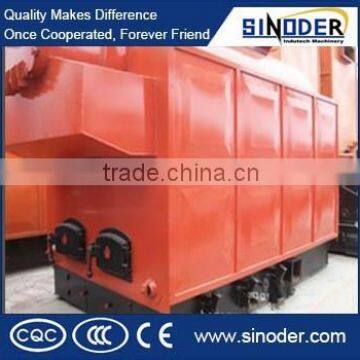

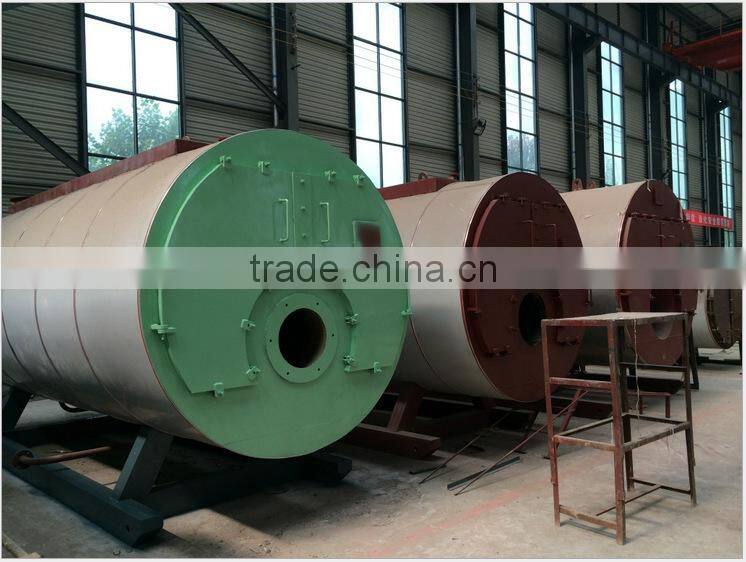

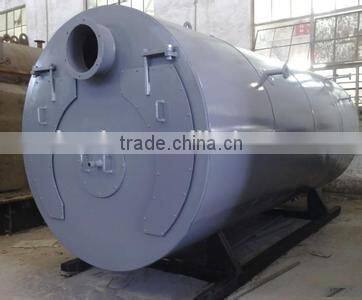

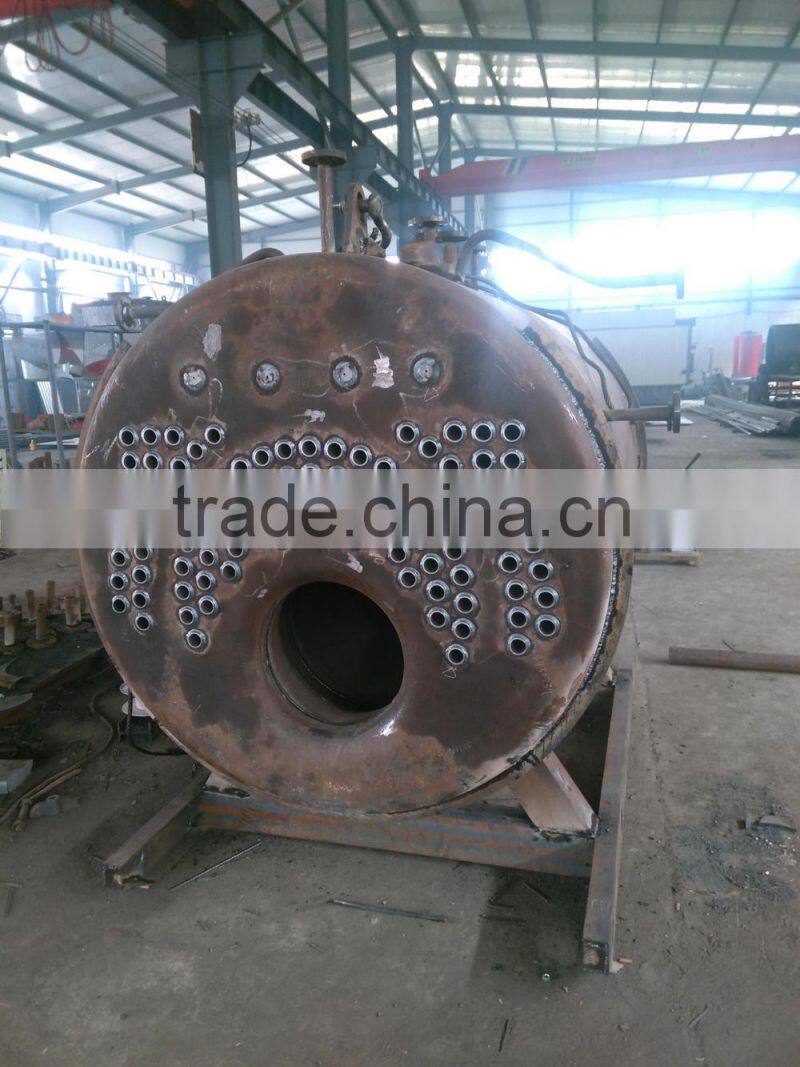

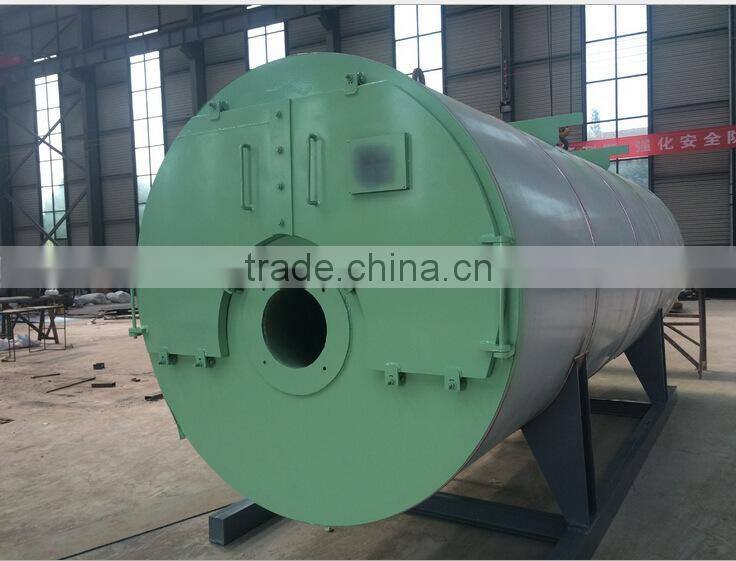

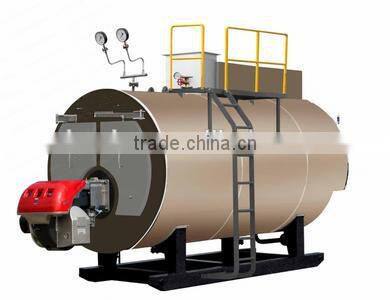

Industrial steam boiler / biomass steam boiler / gas fired steam boiler with high efficiency
Brief introduction of steam boiler

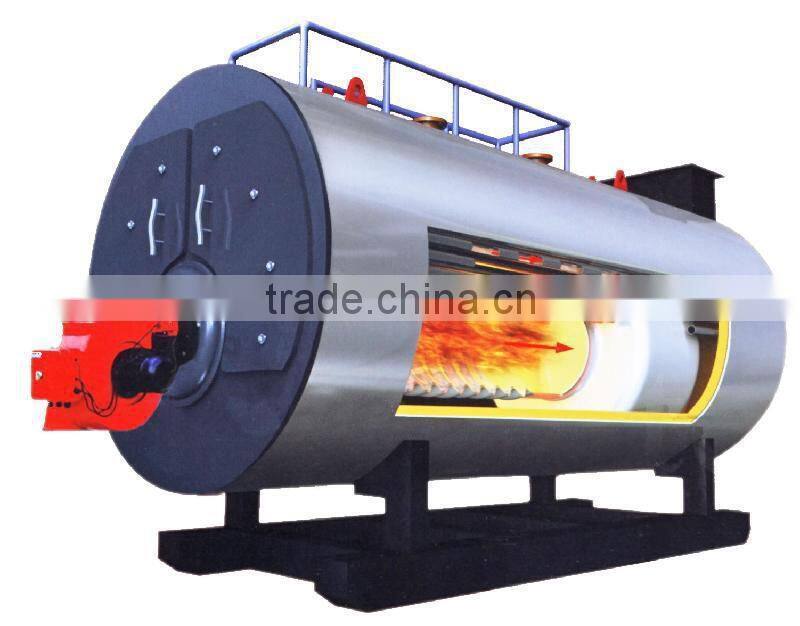

Steam boiler is fullautomatic oil(gas) fired steam boiler; adopting horizontal internal micro positive pressure combustion, full wetback design, high efficiency spirally corrugated tubes, fuel economizer and reasonable insulation package; the thermal efficiency can reach more than 90%. Its novel design, rational structural and nice performance achieved perfect quality and nice performance.
Usage
Steam boilers can be used for product manufacturing process in the weave factory, printing, dying, paper making, rubber, pharmaceutical, etc. And for heating room, bath, air conditional, daily life water in the departments, hotels, schools, restaurants, services industries etc.
Feature &Advantage
1. The large steam room and high quality steam.
2 The horizontal structure has adequate heating, heat transfer is full ,load changes operating is stable in boiler, high combustion efficiency. Furnace biliary low settings, the water level of security is large. Evaporation area of steam and steam quality is high.
3.Can greatly promote the boiler's efficiency, save fuel and lower the operation cost. so as to reach the aim of high performance, gas saving and safety of the boiler.
4.Automatically operation, PLC is control and display the equipment operating parameters and fault alarm by sound and light.
5.The unique design of the combustion chamber, increasing the radiation heating furnace area, reducing the size of the boiler, reducing NOx emissions.
6. After preseting, the purge functions to improve the working conditions of combustion and longevity
Main technical parameter .
Boiler type |
LNS0.2-0.4-Y(Q) |
LNS0.3-0.7-Y(Q) |
WNS0.5-1.0-Y(Q) |
WNS1-1.0-Y(Q) |
WNS2-1.25-Y(Q) |
WNS3-1.25-Y(Q) |
Rated output (t/h) |
0.2 |
0.3 |
0.5 |
1 |
2 |
3 |
|
Rated working pressure (Mpa) |
0.4 |
0.7 |
1.0 |
1.0 |
1.25 |
1.25 |
Feedwater temperature °C |
20 |
20 |
20 |
20 |
20 |
20 |
steam temperature °C |
151 |
169 |
184 |
184 |
194 |
194 |
Heating surface area (m2) |
6.22 |
9.15 |
14.3 |
28.08 |
59.13 |
87.3 |
Design fuel |
Oil/Gas |
Oil/Gas |
Oil/Gas |
Oil/Gas |
Oil/Gas |
Oil/Gas |
Design efficiency % |
85 |
86 |
86 |
86 |
86 |
88 |
Distribution volume(KW) |
0.25 |
0.25 |
0.55 |
1.11 |
2.2 |
7.5 |
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
The main products cover industrial drying machines,industrial crushing machines, mineral processing machines, brick machines, biomass energetic machines, environment protection equipment, food oil press machines and other mechanical equipment. Our key product include stone crusher,sand maker, stone washing machine, ball mill, flotation cell, AAC block plant, rotaty drying machines, biomass burner, coal gasifier, oil press machine, packaging machine, breeding machines, fertilizer and pellets machine and other machines.
Sinoder offer not only products with good quality and competitive price, but also top service and solution.
Website:
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site;
6) Distributing the guarantee fittings door-to-door;
7) Providing technical exchanging;
8) Providing maintenance for big item
If you want to know more information , Pls to contact us
Tel: 0371 55933391 Fax: 0371 55919082
