Specifications
1.Industrial rotary drying machine for drying sand, mine powder,wood shavings, wood sawdust, wood chips2.Professional supplier
Industrial rotary drying machine for drying sand, mine powder,wood shavings, wood sawdust, wood chips.
SINODER supply the following industrial rotary drying machine includes grain dryer, Rotary dryer, rotary drier, dryer, drier, wet material rotary dryer, rotary drying machine, sand dryer, sawdust dryer, coal dryer, coal slime dryer, bentonite dryer, steel powder dryer, ore concentrate dryer, wood chip dryer, cassava dryer, gypsum dryer, cow dung dryer, drying machine, Graphite dryer, Fiber dryer, Clay soil dryer, Fly ash dryer, Fertilizer drying machine, Micropowder dryer.
Sinoder Rotary drying Machine Working principle
Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal fins lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the rotary dryer, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow) of the rotary dryer, or toward the feed end from the discharge end (known as counter-current flow) of the dryer. The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the rotary dryer is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated.
SINODER High Efficiency Rotary drying machine
1. What the rotary dryer can be used for ?
This dryer can dry many kinds of materials which contain moisture, such as coal, coal slurry, slag, industrial waste, and clay stone. They are widely used in building materials, metallurgy, and chemical industry.
2. what the rotary dryer system consist of?
the dryer is formed by rotary body, lifting blade, driving device, supporting device and sealing ring.

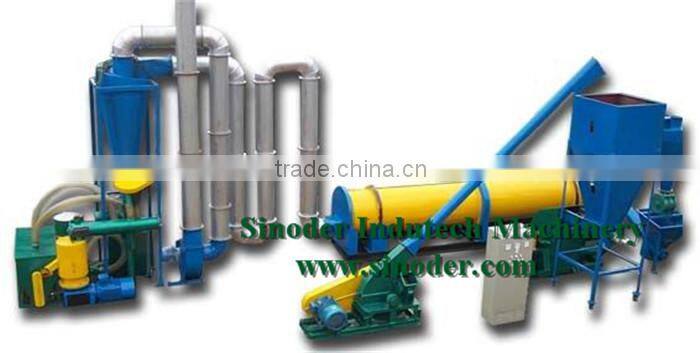

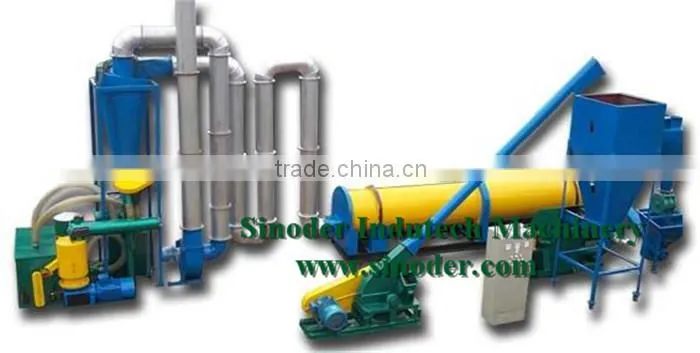

The rotary drying machine system includes heating system, feeding conveyor system, drying system, discharging system, dust collecting system, products storage system and even cooling system.
3. Can I use the coal or gas as the heating source?
Yea, you can use coal, gas, electricity, oil and wind power to heat the dryer machine.
4. How the rotary dryer to work?
The raw material plate is arranged conveniently to allow adjustable angle positions. The material to be dried is inserted to the rotary cylinder through the raw material plate. Hot air flows within the cylinder causing the separation of water from the material by converting it into vapor which is discharged into the atmosphere. At this point, the material becomes dry.

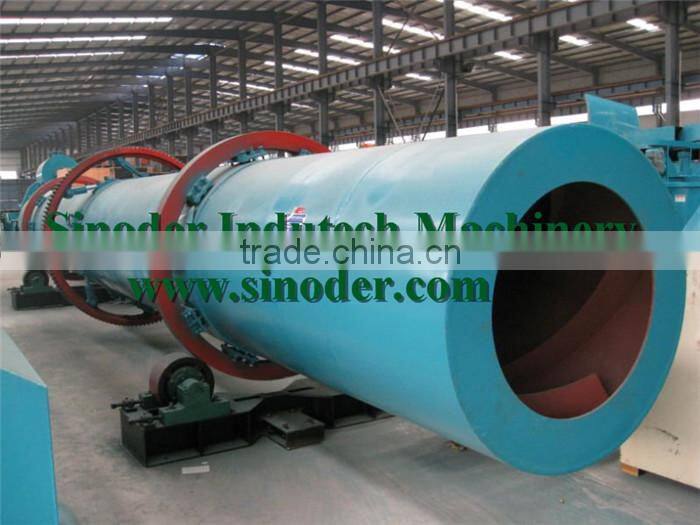

Main Specifications of Single-cylinder Dryer
| Model | Capacity (t/h) |
Main Motor Power(kw) | Weight (t) |
| Φ0.8*10 | 0.8-2 | 5.5 | 4.2 |
| Φ1.0*10 | 1.2-3 | 7.5 | 7.5 |
| Φ1.2*12 | 2.5-4 | 11 | 13.5 |
| Φ1.5*12 | 4-6 | 15 | 18.5 |
| Φ1.5*15 | 5-8 | 18.5 | 20.5 |
| Φ1.8*14 | 8-10 | 18.5 | 23.1 |
| Φ2.2*12 | 13-15 | 22 | 31.5 |
| Φ2.2*14 | 14-16 | 22 | 33.4 |
| Φ2.4*14 | 16-20 | 45 | 42.8 |
| Φ2.4*18 | 16-20 | 45 | 42.8 |
| Φ3.0*20 | 25-30 | 55 | 77.8 |
| Φ3.0*25 | 28-34 | 55 | 87.5 |

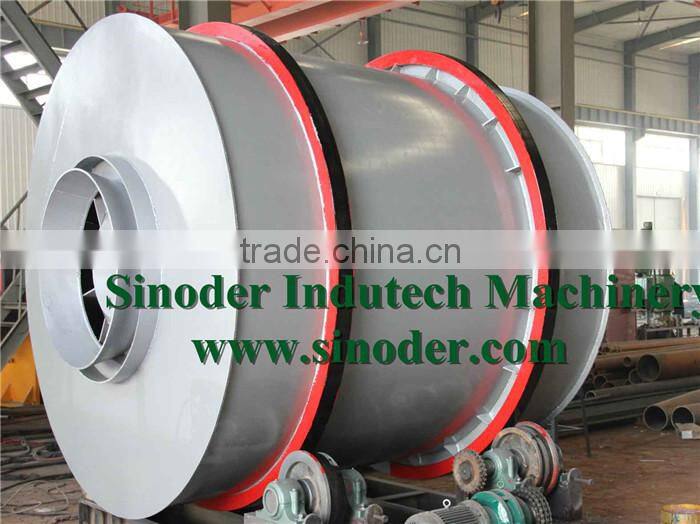

Triple Pass Dryer
To choose the appropriate Industrial Drying Machine model for you, we need to know the following information:
1. What's the raw materials(such as sawdust, clay, coal, mine powder) and its size(mm/inch)?
2. What's the infeeding size? Moisture content before and after the drying process?
3. What's the required output dried Capacity(tons per hour or TPH)?
4. What is the heating fuel?
5. Other special requirements.
We are one leading supplier of mining machinery in China with main products of all kinds of dryer , Rotary dryer, sand dryer, sawdust dryerR, coal dryer, wood chips dryer, gypsum dryer, limestone dryer, iron powder dryer, coconut shell, fly ash dryer, clay dryer., sand making machine and sand washer, belt conveyor, magnetic separator, brick making machine,etc.
If you want to know more information about the industrial drying machine and other machinery, pls do not hesitate to contact us.
Tel: 86 371 55933391
Fax: 86 371 55919082
Mobile:86 18037503060
Website:
Skype:sinoder
