Specifications
coal gasification generator1.quick start&small invest
2.safe and pro-environment
3.save 20% fuel
4.ISO9001-2008,CE
Introduction:

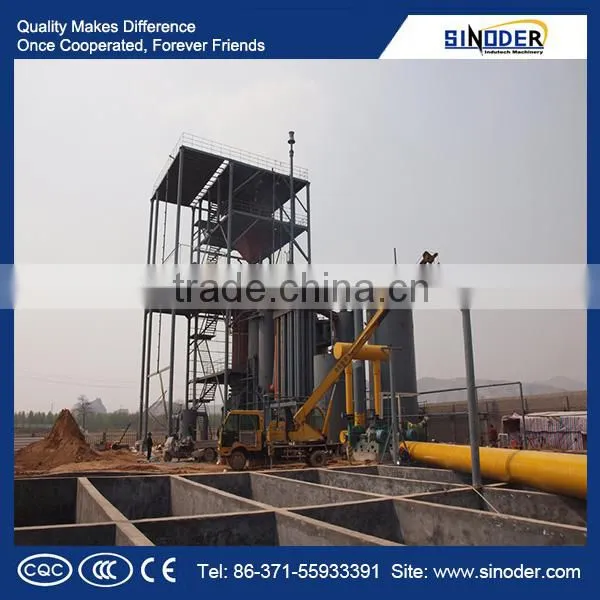

Coal gasification generator for producing gas as heat source.
The coal gas producer is a equipment that use coking coal,anthracite, weak conherent charcoal as fuel, air and steam as vaporization medicinalpreparation to produce gas as heat source.
It is widely used in the enviroment-friendly and energy-saving technological renovation of gas-processing heating furnace, gas forging furnace, gas crucible furnace, gas mold furnace, grilled ladle gas furnace, sand resin heating gas regenerater, glass melting gas furnace, ceramic gas furnace, smoke exausting refractory kiln and tunnel kiln, as well as the renovation of furnaces that burn coal or oil, kilns, and equipment that needs heat such as metallurgy, chemical industry, allumim, fire-resistant materials, glass products and existing kiln,with very good effect.
Features:
Meet the environmental protection indexes,
Safely and reliably to use,
Do not be limited by the kind of coal,
Use the special combustor,
Lighten the labor intensity
Working principle:
Use the scientific technology structure to analyze water molecules, produced hydrogen (H2)to combuste, oxygen (02) for helping combustion, so that the temperature increased rapidly in combustion studio. This cycle can make fuel burn fully in the oven, and produce great heat value. Because of the full combustionand and swirl cyclone combustion technology in the combustion chamber, the coal gas genetor can achieve high temperatures, avoid the emission of harmful gases, such as C0, C02, N0, S02, smoke removal, dust removal, desulfurization, achieve the requirements of environmental protection department.
Main Technical Parameter:
Name |
Coal gasifier |
||||||||||
Internal Diameter(m) |
0.6 |
0.6 |
1 |
1.2 |
1.4 |
1.6 |
1.8 |
||||
Sectional Area(m³) |
0.28 |
0.5 |
0.78 |
1.13 |
1.53 |
2 |
2.54 |
||||
Fuel Consumption(kg/h) |
60-90 |
100-130 |
150-210 |
220-265 |
250-300 |
350-450 |
480-580 |
||||
Gas Production(Nm/h) |
180/270 |
300/270 |
450/630 |
600/295 |
750/900 |
1050/1350 |
1440/1740 |
||||
Cleaner Way |
Hand Cleaner |
||||||||||
Internal Diameter(m) |
2 |
2.2 |
2.4 |
2.6 |
2.8 |
3 |
3.2 |
||||
Sectional Area(m³) |
3.14 |
3.29 |
4.52 |
5.3 |
6.15 |
7.06 |
8.03 |
||||
Fuel Consumption(kg/h) |
600-850 |
900-1000 |
1000-1200 |
1200-1500 |
1600-1800 |
2400-2600 |
2400-2600 |
||||
Gas Production(Nm/h) |
1800/2550 |
2700/3000 |
3000/3600 |
3600/4500 |
4800/5400 |
6000/7200 |
7200/7800 |
||||
Cleaner Way |
Machine Cleaner |
Worm Gear |
|||||||||
Fuel Standard |
anthracite,bitumite, lignite,coke |
||||||||||
Gasification Agent |
Gas + Water |
||||||||||
Gas Caloricity(Kj/nm) |
5025-5650(1200-1450 Kcal) |
||||||||||
Gas Outlet Temperature( |
200-450 Can be adjusted according to the coal quality situation) |
||||||||||
Gas Outlet Pressure(Pa) |
900 |
||||||||||
Saturation Temperature() |
45-70 |
||||||||||
Quality Of Coal |
<70 |
||||||||||
Working Pressure |
Heat should be over 6000 Kcal,Per kilogram of coal can produce three cubic coal gas |
||||||||||
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
The main products cover industrial drying machines,industrial crushingmachines, mineral processing machines, brick machines, biomass energetic machines, environment protection equipment, food oil press machines and other mechanical equipment. Our key product include stone crusher,sand maker, stone washing machine, ball mill, flotation cell, AAC block plant, rotaty drying machines, biomass burner, coal gasifier, oil press machine, packaging machine, breeding machines, fertilizer and pellets machineand other machines.
Sinoder offers not only products with good quality and competitive price, but also possesses the powerful ability in developing the new products and top service.
Sinoder has independent export rights and offices in many countries & areas. Our products have passed CE certificate, exported to Russia, Kazakhstan, Azerbaijan, Turkey, Kuwait, South Africa, Egypt, Vietnam, Malaysia, India, Indonesia, Australia, Korea, Canada, EU, etc. with annual sale 520 million RMB, earning foreign exchange USD 28 million.
Packaging Detail:
Export standard container or nude package or in bulk or according to your order requirements, or we can give you the best suggestion.
Delivery Detail:
Within15--30 working days after receiving your 30% order payment
BSET SERVICE FOR CUSTOMERS:
1. Small trial order are acceptable for you to check our quality and service;
2. Bigger order with bigger discount;
3. Professional guidance are available all the time;
4. We can also help you to do ENGENEERING TEST in our own laboratory.
5. Professional technicians and skilled workers can promise you the top quality of world class;
6. Highly inspecting equipments in every working procedure, quality comes first;
7. Fast & Safe delivery .
Welcome to our factory in ZhengZhou, Henan province, China to have a visit.
To choose the appropriate Coal gasification generator for you, we need to know the following information:
1. What's the raw materials coal property?
2. What's the raw material coal size?
3. What's the required gas Capacity? Or coal consumption?
4. Other special requirements.
If you want to know more information about the Coal gasification generator and other machinery, pls do not hesitate to contact us.
