Home > Products > Coal Gasification Machinery > Gas generator used in coal-fired, fuel boilers, kiln, metallurgy which need heat source equipment.
Gas generator used in coal-fired, fuel boilers, kiln, metallurgy which need heat source equipment.
- 120 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | SINODER |
Model Number: | ALL KINDS FOR YOUR NEEDS | Usage: | Hydrogen | Production Rate: | REFER TO THE MODEL |
Voltage: | REFER TO THE MODEL | Power(W): | REFER TO THE MODEL | Weight: | REFER TO THE MODEL |
Dimension(L*W*H): | REFER TO THE MODEL | Certification: | ISO | Warranty: | 18 NONTHS |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Gas generator1.Easy to operate
2.Heating uniformity
3.Supply gas continuously and steadily
Introduction:

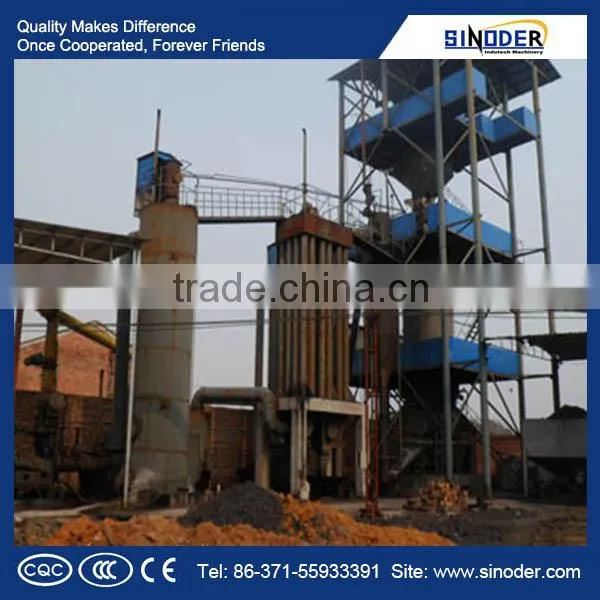

Gas generator used in coal-fired, fuel boilers, kiln, metallurgy which need heat source equipment.
Coal gasifier is one of the high production capacity and high gasification efficient gasifier. The coal gasifier is widely used in metallurgical,mechanical,chemical industry, nonferrous metal industry and other industries. It is used to convert the combustible matter into combustible gas which could utilize the industrial gas and heating various furnaces or the products directly. The coal gasifier has the characteristics of high yield, high efficiency, convenient to operate and with better adaptability, etc.
Features:
Meet the environmental protection indexes,
Safely and reliably to use,
Do not be limited by the kind of coal,
Use the special combustor,
Lighten the labor intensity
Working principle:
The coal granularity in 20-80mm is the ideal fuel. The small granules are in the stove, increasing the stove’s intensity of gasification, quickening reaction speed, improving the gasification efficiency of coal, to reach a state of complete gasification, make coal gas continuously and stably.
Advantages:
1) Convenient to remove slags;
2) Easy to operate and maintain;
3) Long service life;
4) Continual and cyclical manufacturing;
5) It is safe to use for with double safe control;
Main Technical Parameter:
Name | Coal gasifier | ||||||||||
Internal Diameter(m) | 0.6 | 0.6 | 1 | 1.2 | 1.4 | 1.6 | 1.8 | ||||
Sectional Area(m³) | 0.28 | 0.5 | 0.78 | 1.13 | 1.53 | 2 | 2.54 | ||||
Fuel Consumption(kg/h) | 60-90 | 100-130 | 150-210 | 220-265 | 250-300 | 350-450 | 480-580 | ||||
Gas Production(Nm/h) | 180/270 | 300/270 | 450/630 | 600/295 | 750/900 | 1050/1350 | 1440/1740 | ||||
Cleaner Way | Hand Cleaner | ||||||||||
Internal Diameter(m) | 2 | 2.2 | 2.4 | 2.6 | 2.8 | 3 | 3.2 | ||||
Sectional Area(m³) | 3.14 | 3.29 | 4.52 | 5.3 | 6.15 | 7.06 | 8.03 | ||||
Fuel Consumption(kg/h) | 600-850 | 900-1000 | 1000-1200 | 1200-1500 | 1600-1800 | 2400-2600 | 2400-2600 | ||||
Gas Production(Nm/h) | 1800/2550 | 2700/3000 | 3000/3600 | 3600/4500 | 4800/5400 | 6000/7200 | 7200/7800 | ||||
Cleaner Way | Machine Cleaner | Worm Gear | |||||||||
Fuel Standard | anthracite,bitumite, lignite,coke | ||||||||||
Gasification Agent | Gas + Water | ||||||||||
Gas Caloricity(Kj/nm) | 5025-5650(1200-1450 Kcal) | ||||||||||
Gas Outlet Temperature( | 200-450 Can be adjusted according to the coal quality situation) | ||||||||||
Gas Outlet Pressure(Pa) | 900 | ||||||||||
Saturation Temperature() | 45-70 | ||||||||||
Quality Of Coal | <70 | ||||||||||
Working Pressure | Heat should be over 6000 Kcal,Per kilogram of coal can produce three cubic coal gas |
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
The main products cover industrial drying machines,industrial crushingmachines, mineral processing machines, brick machines, biomass energetic machines, environment protection equipment, food oil press machines and other mechanical equipment. Our key product include stone crusher,sand maker, stone washing machine, ball mill, flotation cell, AAC block plant, rotaty drying machines, biomass burner, coal gasifier, oil press machine, packaging machine, breeding machines, fertilizer and pellets machineand other machines.
Sinoder offers not only products with good quality and competitive price, but also possesses the powerful ability in developing the new products and top service.
Sinoder has independent export rights and offices in many countries & areas. Our products have passed CE certificate, exported to Russia, Kazakhstan, Azerbaijan, Turkey, Kuwait, South Africa, Egypt, Vietnam, Malaysia, India, Indonesia, Australia, Korea, Canada, EU, etc. with annual sale 520 million RMB, earning foreign exchange USD 28 million.
Packaging Detail:
Export standard container or nude package or in bulk or according to your order requirements, or we can give you the best suggestion.
Delivery Detail:
Within15--30 working days after receiving your 30% order payment
BSET SERVICE FOR CUSTOMERS:
1. Small trial order are acceptable for you to check our quality and service;
2. Bigger order with bigger discount;
3. Professional guidance are available all the time;
4. We can also help you to do ENGENEERING TEST in our own laboratory.
5. Professional technicians and skilled workers can promise you the top quality of world class;
6. Highly inspecting equipments in every working procedure, quality comes first;
7. Fast & Safe delivery .
Welcome to our factory in ZhengZhou, Henan province, China to have a visit.
To choose the appropriate Gas generator for you, we need to know the following information:
1. What's the raw materials coal property?
2. What's the raw material coal size?
3. What's the required gas Capacity? Or coal consumption?
4. Other special requirements.
If you want to know more information about the Gas generator and other machinery, pls do not hesitate to contact us.
