Product Details
| Place of Origin: | Guangdong, China | Brand Name: | QIHAN | Model Number: | QH-D6008AHM-N380 |
Product Description
8 channels AHD DVR security surveillance CCTV camera systems
surveillance cctv camera systems features:
• H.264 dual-stream video compression
• Compatible with AHD 1080P, AHD 720P, Analog 960H/D1
• AHD new technology 1080N(960x1080) Decoding & Recording, 1080P image quality while save 50% storage space
• 2*USB2.0, USB Disk up to 32G(Kingston)
• Audio talk back supported
• Support 10M/100Mbit/s network interface
• Mobile surveillance supported,Including iPhone, iPad, Android
• Support browser IE 6.0 Above
• Free ISS PC, ISS Mobile Management software
• Free DDNS server: HDCCTVDDNS
• HDMI & VGA 1080P HD Diaplay
• Max 4TB per HDD
surveillance cctv camera systems specifications:
| Model NO. | QH-D6008AHM | |
| OPERATION SYSTEM | LINUX | |
| VIDEO | VIDEO SYSTEM | NTSC/PAL Switch Selectable |
| INPUT | BNC*8, 1.0Vp-p, 75ohm | |
| CVBS OUTPUT | 1 CVBS Output | |
| SPOT | NA | |
| HDMI OUTPUT | 1 HDMI Output | |
| VGA OUTPUT | 1 VGA Output | |
| AUDIO | INPUT | 4CH, RCA |
| OUTPUT | 1CH, RCA | |
| TALK BACK | YES | |
| CONTROL | MOUSE | 2*USB2.0 |
| IR CONTROLLER | YES | |
| STORAGE | BUILD IN INTERFACE | SATA *1(1*HDD 4TB ) |
| DISPLAY | DIVISION | 1, 4, 9 |
| ZOOM | Preview&Playback Zoom Support | |
| RECORDING | COMPRESSION | H.264(High profile) |
| RECORDING MODE | Manual/Schedule/Motion Detection/Sensor(Optional) | |
| ENCODING ABILITY | 8*1080N@15fps | |
| DECODING ABILITY | 4*1080N@15fps | |
| RESOLUTION | Analog:8*1080N ; Hybird:4*1080N(Analog)+4*720P(Network); Network:8*720P; | |
| QUALITY | Worst, Worse, Bad, Normal, Better, Best | |
| PLAYBACK | SYNC PLAYBACK | 1, 4 |
| SPEED | Normal, FF(1X, 2X, 4X, 8X,), Slow (1/2X, 1/4X, 1/8X) | |
| SEARCH METHOD | Time, Event, Channels and Calendar | |
| COMMUNICATION | REMOTE ACCESS | IE ( 10.0 and below), ISS ( Windows XP/WIN7/WIN8/WIN10 ), ISS MOBILE2 ( IOS, Android ) |
| REMOTE OPERATION | Remote View, Remote Playback, Remote Setup | |
| NETWORK SERVICE | TCP/IP,PPPOE ,DDNS,FTP,NTP UPNP | |
| MOBILE DEVICE | iPone, iPad, Android | |
| WAN RJ45 | 10/100Mbit/s | |
| 3G EXTERNAL MODULE | Yes, with USB 2.0 Port | |
| WIFI EXTERNAL MODULE | Yes, with USB 2.0 Port, 100Meters | |
| GUI INTERFACE | Supported GUI 16 Bit True Color | |
| PTZ PROTOCOL | PELCO-D, PELCO-P, etc 17 kinds of protocol | |
| BACKUP | INTERNAL | NA |
| EXTERNAL | 2*USB2.0 | |
| NETWORK | YES | |
| FILE FORMAT | AVI/dav | |
| GENERAL | ALARM IN/OUT | 4 Alarm Input, 1 Alarm Output |
| RS-485 | 1 | |
| RS-232 | NA | |
| UNIT DIMENSION(mm) | 260(L) x 44(H) x 221(W) | |
| OPERATION TEMPERATURE | 10°~40° | |
| WORKING HUMIDITY | 10% ~ 90% | |
| POWER CONSUMPTION | DC 12V,2A, <6W (Exclude HDD) |

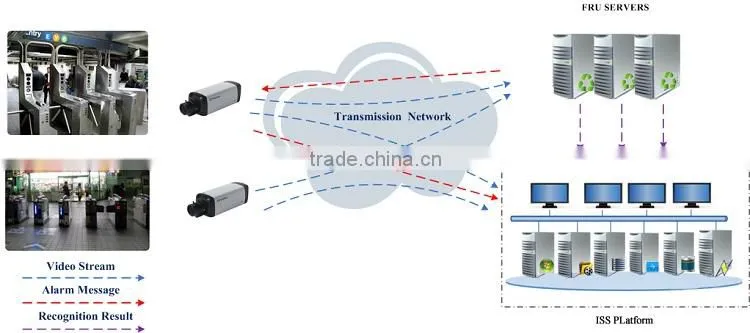

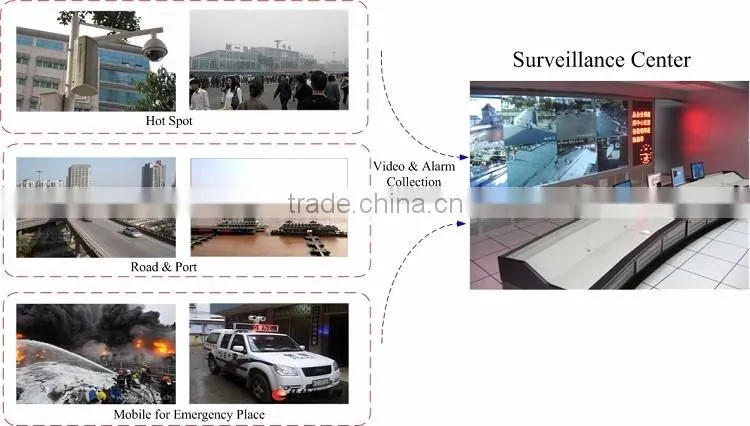

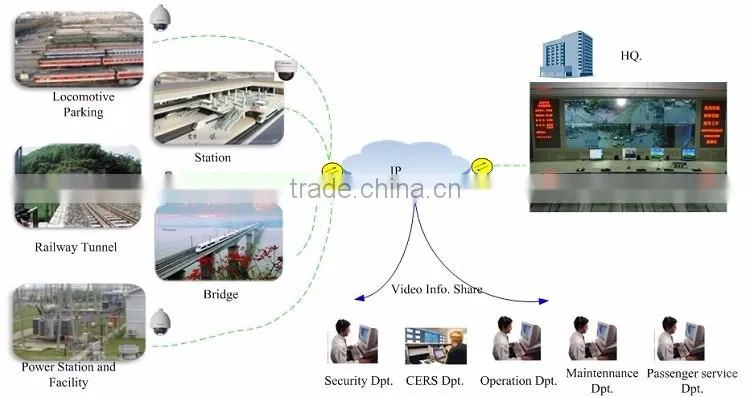

surveillance cctv camera systems photos:
Qihan Technology Co., LTD is one of the leading factories which develops and produces CCTV products in China, supported by the Chinese government as the most importantly developed company.Qihan has a R&D headquarter in Shenzhen high-tech research center, possessing the most advanced patent for electronic R&D technique, leading us to be among the best in China.
Each month we produce about 80,000 units of cameras and 20,000 units of DVRs, and our capacity is about 100,000 units of cameras and 50,000 units of DVRs monthly. Which accounts for nearly 38 million US Dollars in value in the year of 2011. All the high-tech electronic components are integrated by machine automatically, and the semi-products are assembled in our 12 professional production lines.
1 . If I miss some accessory parts of my QIHAN device, what should I do?
Please contact the dealer/ retailer/ e-tailer/ system integrator or the distributor where you purchased the unit. They can help you to order the parts.
2 . I bought a refurbished QIHAN device but it is dead on arrival (DOA), what should I do?
Please contact the original reseller for DOA return.
You can contact local QIHAN authorized dealer/ retailer/ e-tailer/ system integrator or the distributor for more information about extended warranty.
4 . How do I know that I am buying from QIHAN authorized retailer?
You can email us at our offical websitefor more information.
