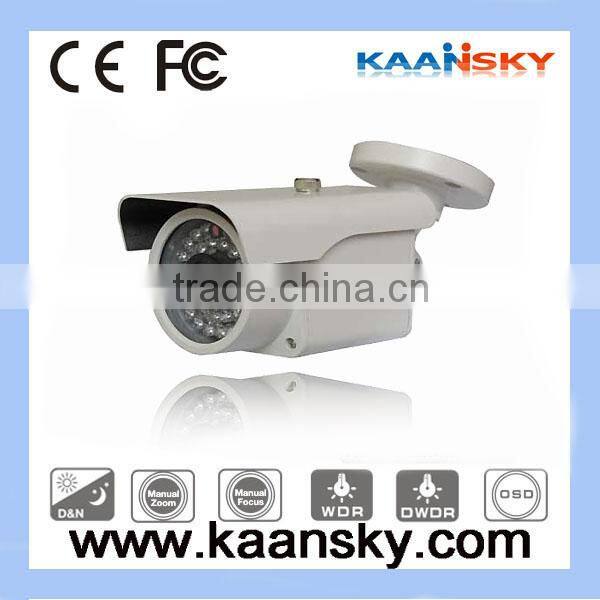

Main Features:
Waterproof IR Camera R+/OSD
IR Distance 25-30M
Adopting 36PCs F5mm IR Leds
Standard lens: 3.6mm lens;(2.8mm, 6mm optional)
Dual glass, no IR diffusion and fog
IP66, outdoor installation
Cable-managed Bracket: to prevent external force of destruction such as cutting
| Model | KST-I714-C90 | KST-I714-N70 | KST-I714-E65 | KST-I714-EV800 | |
| Image Sensor | 1/3" COLOR Super HAD DIS |
1/3" COLOR NVP SONY CCD |
1/3" COLOR SONY EFFIO |
1/3" COLOR SONY EFFIO-V |
|
| TV System | PAL/NTSC | ||||
| Image Resolution | PAL:976(H)×582(V), NTSC:976(H)×494(V) |
PAL:976(H)×582(V), NTSC:976(H)×494(V) |
PAL:976(H)×582(V), NTSC:976(H)×494(V) |
PAL:976(H)×582(V), NTSC:976(H)×494(V) |
|
| Horizontal Resolution | 900TVL | 700 TVL | 700 TVL | 800TVL | |
| CCD+DSP | DIS1099 DIS138+FH8510+IR CUT |
811ccd+NVP2090 2341ccd+NVP2090 | 811ccd+EFFIO4151 673ccd+EFFIO4151 | 663ccd+EFFIO4141 ISRAEL K700 |
|
| Digital to Analog | 9Bit | ||||
| Minimum illuminator | 0.1LUX/F1.2 | ||||
| S/N Ratio | ≥48dB | ≥58dB | |||
| AES | 1/50-1/100,000sec(PAL),1/60-1/100,000sec(NTSC) | ||||
| WDR | D-WDR | D-WDR | D-WDR | SUPPER WDR | |
| DNR | 2D-DNR | 2D-DNR | 3D-DNR | 3D-DNR | |
| OSD | OSD | OSD | OSD | OSD | |
| White Balance | ATW/Manual/Auto | ||||
| AGC | Auto/Manual/Off | ||||
| BLC | ON/OFF | ||||
| Gamma Adjusting | 0.45 | ||||
| synchronization System | Internal Synchronization | ||||
| Video Output | 1.0Vp-p,75Ω | ||||
| IR | 36PCs F5mm | ||||
| IR Distance | 25-30 Meter | ||||
| LENS | 3.6mm | ||||
| Voltage | DC12V (9V ~ 15V) | ||||
| Operating Enviroment | ~ / 10% ~ 95%RH | ||||
| Size | Body: 130x65x50mm; Bracket: 70x90x69mm | ||||
| Weight | 0.55kgs/0.45kgs | ||||
| packing | Color box: 195x123x117mm; 25pcs per caton; Dimension: 650x400x325mm, appro. 0.0845cbm; | ||||
Why choose KAANSKY:
Professional manufacturer
Shenzhen Kaansky Technology Co.,Ltd is a professional manufacturer of CCTV camera.
The factory address is 2nd Floor,Block A,Yuandong Industrial Zone,Xuegang South Road,Bantian,Buji,Shenzhen,China.
Found in the year of 2006, which has more than 8 years ODEM and OEM experience.
Certificates:
The factory runs strictly according to ISO9001 and most products have got CE, FCC, CCC, ROHS, and IP66.
And most of the staff have more than 5 years operation experience.
Great factory is the essurance of high quality.
Warranty
We provide 2 years warranty for all of our products.
