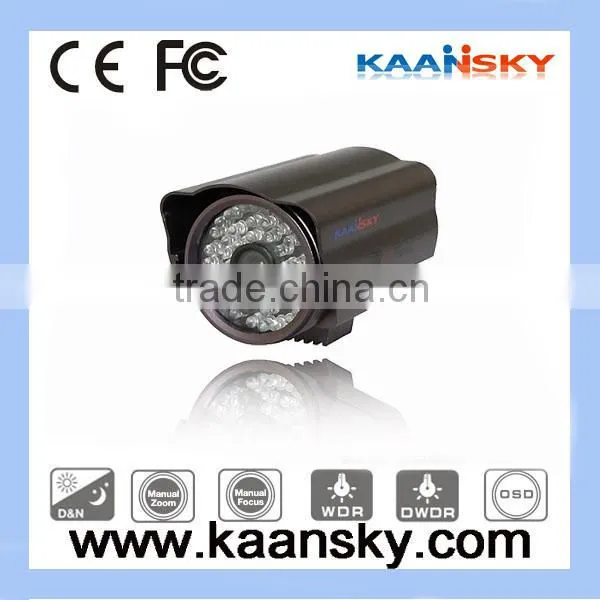

1/3 Sony CCD 420TVL IR CAMERA WATERPROOF CCTV CAMERA

1/3 Sony CCD 420TVL IR CAMERA WATERPROOF CCTV CAMERA thumbnail-1
1/3 Sony CCD 420TVL IR CAMERA WATERPROOF CCTV CAMERA photo-1
US$ 10 - 80 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KAANSKY
Model Number:
KST-I701-S342
Contact Supplier Request Quote Chat Now
Shenzhen Kaansky Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KAANSKY
Model Number KST-I701-S342
Type Analog Camera
Style Bullet Camera
Sensor CCD
Technology Infrared
Special Features Waterproof / Weatherproof

1/3 sony ccd 420tvl ir camera

Features:

IR Distance 25-35M
Adopting 48PCs F5mm IR Leds
Standard lens: 3.6mm lens;(2.8mm, 6mm optional)
Dual glass, no IR diffusion and fog
IP66, outdoor installation
Cable-managed Bracket: to prevent external force of destruction such as cutting



1/3 Sony CCD 420TVL IR CAMERA WATERPROOF CCTV CAMERA

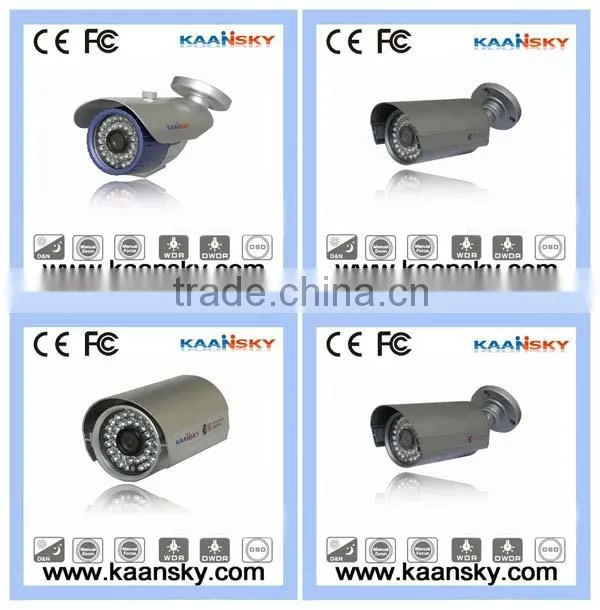

Model KST-I701-C90 KST-I701-N70 KST-I701-E65 KST-I701-EV800
Image Sensor 1/3" COLOR
Super HAD DIS		 1/3" COLOR
NVP SONY CCD		 1/3" COLOR SONY
 EFFIO		 1/3" COLOR SONY
EFFIO-V
TV System PAL/NTSC
Image Resolution PAL:976(H)×582(V),
 NTSC:976(H)×494(V)		 PAL:976(H)×582(V),
 NTSC:976(H)×494(V)		 PAL:976(H)×582(V),
 NTSC:976(H)×494(V)		 PAL:976(H)×582(V),
 NTSC:976(H)×494(V)
Horizontal Resolution 900TVL 700 TVL 700 TVL 800TVL
CCD+DSP DIS1099
DIS138+FH8510+IR CUT		 811ccd+NVP2090  2341ccd+NVP2090 811ccd+EFFIO4151 673ccd+EFFIO4151 663ccd+EFFIO4141
ISRAEL K700
Digital to Analog 9Bit
Minimum illuminator 0.1LUX/F1.2
S/N Ratio ≥48dB ≥58dB
AES 1/50-1/100,000sec(PAL),1/60-1/100,000sec(NTSC)
WDR D-WDR D-WDR D-WDR SUPPER WDR
DNR 2D-DNR 2D-DNR 3D-DNR 3D-DNR
OSD OSD OSD OSD OSD
White Balance ATW/Manual/Auto
AGC Auto/Manual/Off
BLC ON/OFF
Gamma Adjusting 0.45
synchronization System Internal Synchronization
Video Output 1.0Vp-p,75Ω
IR  48PCs F5mm
IR Distance 35-40 Meter
LENS 3.6mm
Voltage DC12V (9V ~ 15V)
Operating Enviroment ~ / 10% ~ 95%RH
Size Body: 120x79x85mm;
Weight 0.5kgs/0.45kgs
packing Color box: 158x115x91mm; 40pcs per caton; Dimension: 650x400x325mm, appro. 0.0845cbm;



1/3 Sony CCD 420TVL IR CAMERA WATERPROOF CCTV CAMERA



1/3 Sony CCD 420TVL IR CAMERA WATERPROOF CCTV CAMERA



 1/3 Sony CCD 420TVL IR CAMERA WATERPROOF CCTV CAMERA

1/3 Sony CCD 420TVL IR CAMERA WATERPROOF CCTV CAMERA1/3 Sony CCD 420TVL IR CAMERA WATERPROOF CCTV CAMERA



 1/3 Sony CCD 420TVL IR CAMERA WATERPROOF CCTV CAMERA

1/3 Sony CCD 420TVL IR CAMERA WATERPROOF CCTV CAMERA
