PRODUCTS INFORMATION
1, WQ whole casting type stainless steel submersible sewage pump is composed of the company research and development of precision casting, pump can be used according to different customers environment there are two types of installation
A: mobile installation: water pump with elbow, directly connect the hose to realize mobile installation
B: fixed installation: remove the elbow pumps, export into 6 kg national standards flange, screw, directly for the connection of flange type fixed installation.
Because of the appearance is smooth and neat and beautiful welcome by the market.This pump our comprehensive domestic and foreign advanced technology, adopt stainless steel design of drainage structure, because generally sewage pump has certain corrosion and wear, on the design used the wear-resisting, corrosion resistance of stainless steel as the main material, it has the common all the advantages of the submersible sewage pump, at the same time increased the wear-resisting corrosion resistance characteristics, expand the scope of application.
2. WQ whole casting type stainless steel submersible sewage pump in different environments, according to the practical use of stainless steel submersible sewage pump can be mounted to the cutter blade device, directly tear type processing, where the water inlet at the bottom to the impeller discharge, the implementation never jam (general for environment contains weeds, fibers, granular, paper tape).Also can be mounted to the stirring wheel, water inlet at the bottom after mischief makers, again by the pump impeller discharge, the implementation of silt.
3. WQP whole casting type stainless steel submersible sewage pump has no blockage, winding, compact structure, small volume, wear resistance, corrosion resistance, small volume, long service life, sewage pumping medium, heavy solid particles and short fiber, size, etc.In addition to dirt medium wear-resisting corrosion resistance, chemical industry, food industry is the ideal product.
4. this series of products are all made of precision casting and become, in addition to being able to produce 304 outside, also can produce 316, 316 l, etc.
Applications
1.Wastewate treatment
2.Building site drainage
3.Sewage pool drainage
4.Flood protection drainage
5.Stroage tank evacuation
6.Sewage treatment
Technical Characteristic
Advanced stamping and welding technology
Casing impeller back cover SUS304
Pump shaft:SUS304
Motor casing drive end shield and non-drive end shiedl :SUS304
Double mechanical seal :oil luvrication room
Mechanical seal:carboon/SIC/NBR
Max diving depth :10m
Max liquid temp:40°C
The Pump should be immerged intothe water

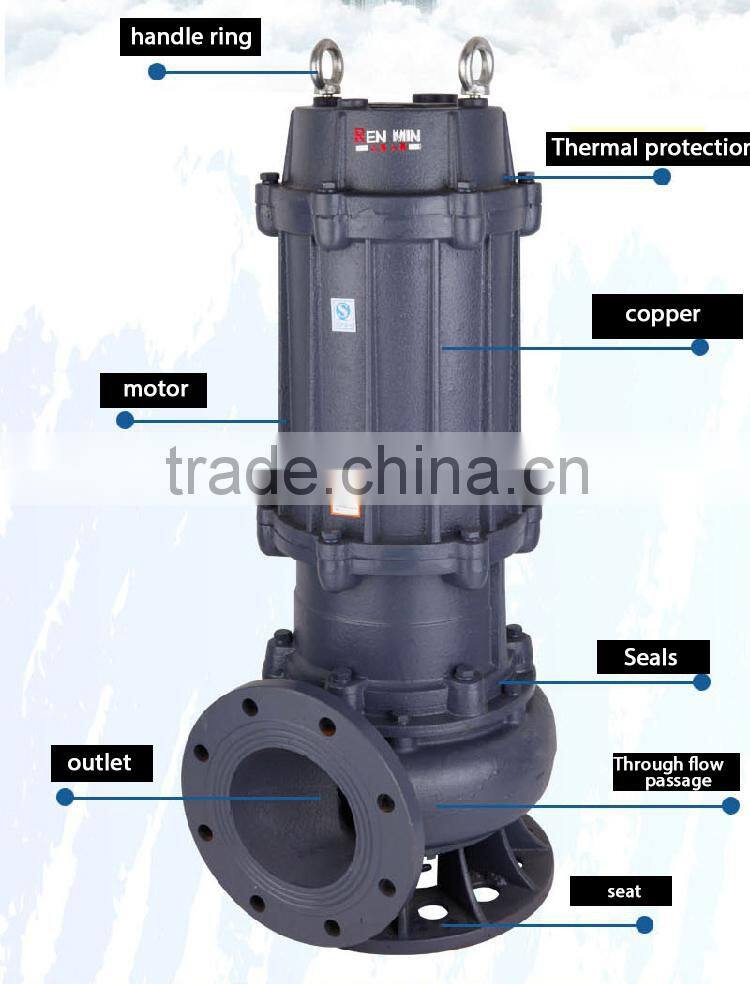

STRUCTURE
Parameters
| Model Number |
Flow Rate (m³ /h) |
Head(m) | Power(kW) |
Voltage (V) |
Caliber (mm) |
| 50WQP10-10-0.75 | 10 | 10 | 0.75 | 220 | 50 |
| 50WQP10-10-0.75 | 10 | 10 | 0.75 | 380 | 50 |
| 50WQP15-10-1.1 | 15 | 10 | 1.1 | 220 | 50 |
| 50WQP15-10-1.1 | 15 | 10 | 1.1 | 380 | 50 |
| 50WQP15-12-1.5 | 15 | 12 | 1.5 | 220 | 50 |
| 50WQP15-12-1.5 | 15 | 12 | 1.5 | 380 | 50 |
| 50WQP15-20-2.2 | 15 | 20 | 2.2 | 380 | 50 |
| 65WQP25-15-2.2 | 25 | 15 | 2.2 | 380 | 65 |
| 80WQP40-9-2.2 | 40 | 9 | 2.2 | 380 | 80 |
| 100WQP50-7-2.2 | 50 | 7 | 2.2 | 380 | 100 |
| 50WQP15-25-3 | 15 | 25 | 3 | 380 | 50 |
| 65WQP25-20-3 | 25 | 20 | 3 | 380 | 65 |
| 80WQP40-15-3 | 40 | 15 | 3 | 380 | 80 |
| 100WQP50-10-3 | 50 | 10 | 3 | 380 | 100 |
| 50WQP15-32-4 | 15 | 32 | 4 | 380 | 50 |
| 65WQP25-25-4 | 25 | 25 | 4 | 380 | 65 |
| 80WQP40-18-4 | 40 | 18 | 4 | 380 | 80 |
| 100WQP50-15-4 | 50 | 15 | 4 | 380 | 100 |
| 50WQP20-32-5.5 | 20 | 32 | 5.5 | 380 | 50 |
| 65WQP30-25-5.5 | 30 | 25 | 5.5 | 380 | 65 |
| 80WQP50-18-5.5 | 50 | 18 | 5.5 | 380 | 80 |
| 100WQP80-10-5.5 | 80 | 10 | 5.5 | 380 | 100 |
| 150WQP100-7-5.5 | 100 | 7 | 5.5 | 380 | 150 |
| 50WQP20-40-7.5 | 20 | 40 | 7.5 | 380 | 50 |
| 65WQP30-32-7.5 | 30 | 32 | 7.5 | 380 | 65 |
| 80WQP45-22-7.5 | 45 | 22 | 7.5 | 380 | 80 |
| 100WQP80-15-7.5 | 80 | 15 | 7.5 | 380 | 100 |
| 150WQP100-10-7.5 | 110 | 10 | 7.5 | 380 | 150 |
| 150WQP140-7-7.5 | 140 | 7 | 7.5 | 380 | 150 |

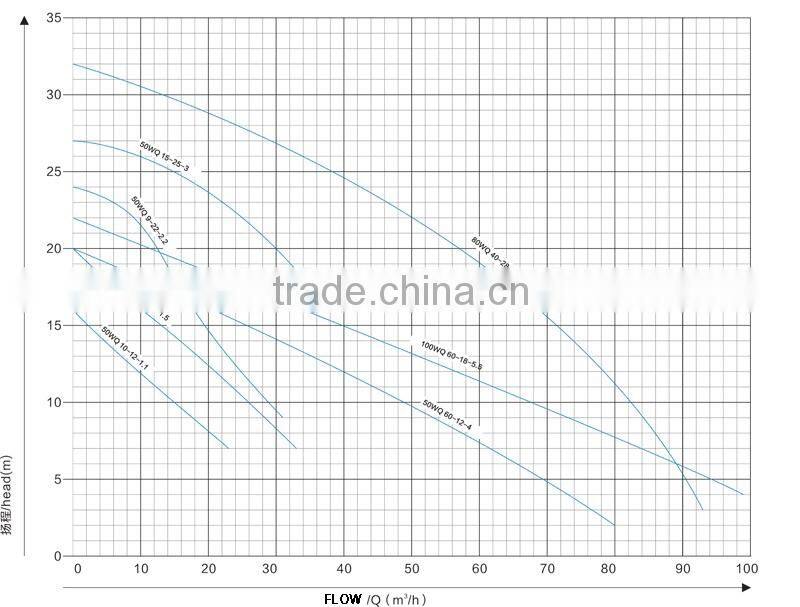

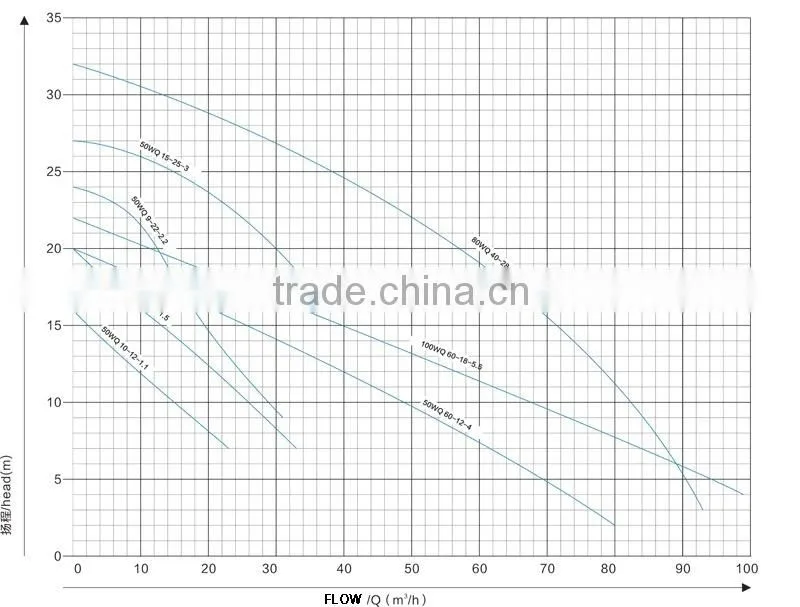

CRUVE:
PACKAGE:
HOW TO CONTACT US:
GUANGZHOU JOTO MECHANCIAL CO.,LTD
DAISY CHAN
Mob: +8615018400139
Tel:+86 020-31175638
Skype:Baohuachan
QQ:526926857
http://joto.en.china.cn/
