Specifications
QBY series pneumatic Diaphragm Pump1.MOQ:1set
2.Flow Rate:16-480L/min
3.Head Range: 0-50m
4.speed:1390r/min-2900r/min

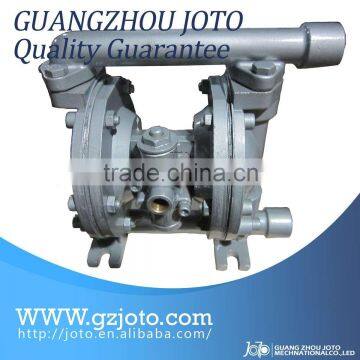

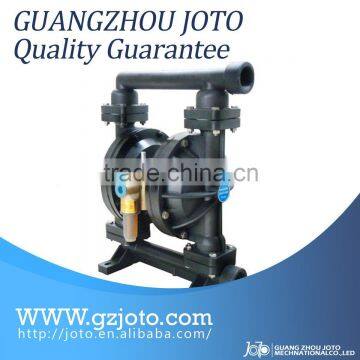

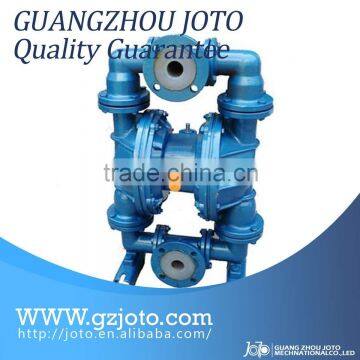

China QBY series Cast iron or stainless steel pneumatic Diaphragm Pump
Product Description
The QBY pneumatic diaphragm pump uses the compressed air as the power to take out and suck in various liquid that is corrosive, containing particles, high viscous,easy volatile, inflammable, explosive or poisonous. The performance parameters of this series are close to that of German WILDEN-PUMPS and American MARIO-WPUMPS.

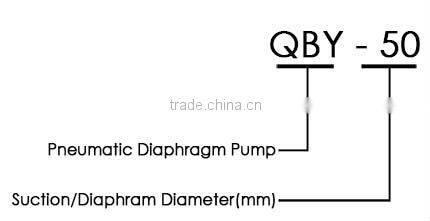

Model Meaning:
Model Parameters
|
Model |
Flow (m3/h) |
Head (m) |
Outlet (kgf/cm2) |
Suction Lift (m) |
Max. particle Dia.(mm) |
Max Air Pressure (kbf/cm2) |
Max. Air Consumption (m3/min) |
QBY-10 |
0~0.8 |
0~60 |
6 |
5 |
1 |
7 |
0.3 |
QBY-15 |
0~1 |
0~60 |
6 |
5 |
1 |
7 |
0.3 |
QBY-25 |
0~2.4 |
0~60 |
6 |
7 |
2.5 |
7 |
0.6 |
QBY-40 |
0~8 |
0~60 |
6 |
7 |
4.5 |
7 |
0.6 |
QBY-50 |
0~12 |
0~60 |
6 |
7 |
8 |
7 |
0.9 |
QBY-65 |
0~16 |
0~60 |
6 |
7 |
8 |
7 |
0.9 |
QBY-80 |
0~24 |
0~60 |
6 |
7 |
10 |
7 |
1.5 |
QBY-100 |
0~30 |
0~60 |
6 |
7 |
10 |
7 |
1.5 |
How to Contact us :
PERY
Mobile Phone:+86 13527876159
Company Name : Guangzhou JOTO Mechanical Co., Ltd
Landline telephone : +86 20-31175638-804
Fax Line : +86 20-84645306
Website :

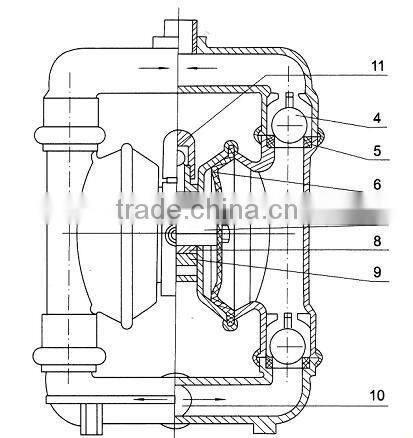

Struture
1.Air inlet 2. Distribution valve body 3. Distributing valve 4. A globe 5. ball seat
6.diaphragm nnecting rob nnecting rod brass 9.intermediate support 10. Pump inlet 11.vent

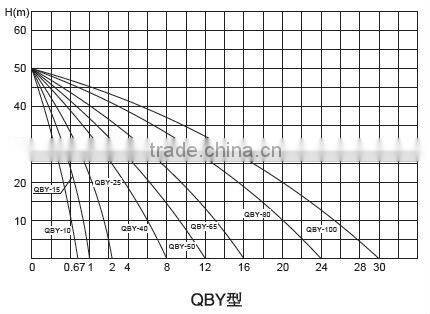

Chart curve
