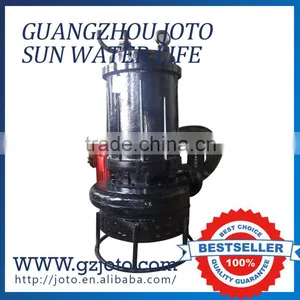

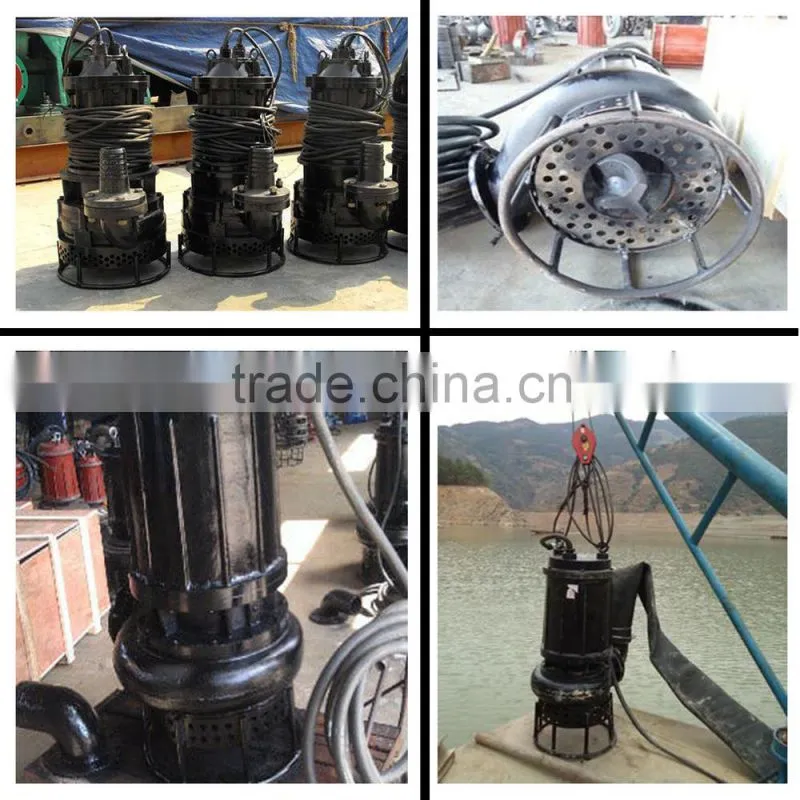

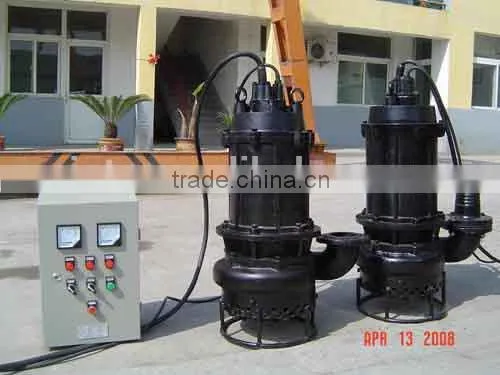

ZSQ (NSQ) type Best Product for Import Best Price Vertical submersible sand dredging pump
SAND PUMP SERIVICE CONDITIONS:
1. Power supply: The power standard source is 50Hz/380V three-phase alternating-current supply, and the capacity of the substation transformator is two to three times of the rated capacity of the motor. we can design the pump and motor under your requirement.
2. Temperature of the medium: The temperature of the medium cannot exceed 60Celsius, and the medium does not contain inflammable or explosive gases.
3. Max weight density of the solid particle: The maximum weight concentration of the solid particles in the medium: the maximum weight concentration of the ash is 45% and the maximum weight concentration of the slag is 60%.
4. Submerged depth: not more than 20 meters, and not less than 1 meter.
5.The unit works in the medium vertically, and the working status is continuous.
SAND PUMP APPLICATION:
Pumping tailing slurry for industrial and mining organizations, clearing silt in sedimentation basin, pumping silty sand or fine sand for seashore or port, pumping powdery iron ore for foreign countries, etc. The overflowing parts adopt wear-resistant alloy material and have long service life. In suitable construction environment, the mating is simple and convenient in operation and application. If the sand is large, high pressure gun can be added to increase the medium concentration.
SAND PUMP PARAMETER:
no. |
model |
dia.(mm) |
flow(m3/h) |
head(m) |
power(kw) |
particles(mm) |
1 |
50ZSQ(NSQ)20-15-1.5 |
50 |
20 |
15 |
1.5 |
20 |
2 |
50ZSQ(NSQ)25-10-1.5 |
50 |
25 |
10 |
2.2 |
20 |
3 |
50ZSQ(NSQ)25-15-2.2 |
50 |
25 |
15 |
2.2 |
20 |
4 |
50ZSQ(NSQ)30-10-2.2 |
50 |
30 |
10 |
3 |
20 |
5 |
50ZSQ(NSQ)15-25-3 |
50 |
15 |
25 |
3 |
20 |
6 |
50ZSQ(NSQ)40-12-3 |
50 |
40 |
12 |
3 |
25 |
7 |
80ZSQ(NSQ)50-10-3 |
80 |
50 |
10 |
3 |
25 |
8 |
50ZSQ(NSQ)24-20-4 |
50 |
24 |
20 |
4 |
25 |
9 |
50ZSQ(NSQ)40-15-4 |
50 |
40 |
15 |
4 |
25 |
10 |
80ZSQ(NSQ)60-13-4 |
80 |
60 |
13 |
4 |
25 |
11 |
100ZSQ(NSQ)70-10-4 |
100 |
70 |
10 |
4 |
25 |
12 |
50ZSQ(NSQ)25-30-5.5 |
50 |
25 |
30 |
5.5 |
25 |
13 |
50ZSQ(NSQ)45-20-5.5 |
50 |
45 |
20 |
5.5 |
25 |
14 |
80ZSQ(NSQ)45-15-5.5 |
80 |
45 |
15 |
5.5 |
25 |
15 |
80ZSQ(NSQ)30-22-5.5 |
80 |
30 |
22 |
5.5 |
25 |
16 |
80ZSQ(NSQ)65-13-5.5 |
80 |
65 |
13 |
5.5 |
25 |
17 |
100ZSQ(NSQ)80-10-5.5 |
100 |
80 |
10 |
5.5 |
25 |
18 |
100ZSQ(NSQ)100-7-5.5 |
100 |
100 |
7 |
5.5 |
25 |
19 |
100ZSQ(NSQ)35-22-5.5 |
100 |
35 |
22 |
5.5 |
25 |
20 |
150ZSQ(NSQ)120-10-5.5 |
150 |
120 |
10 |
5.5 |
25 |
21 |
50ZSQ(NSQ) 30-30-7.5 |
50 |
30 |
30 |
7.5 |
30 |
22 |
80ZSQ(NSQ) 50-22-7.5 |
80 |
50 |
22 |
7.5 |
30 |
23 |
100ZSQ(NSQ)75-15-7.5 |
100 |
75 |
10 |
7.5 |
30 |
24 |
100ZSQ(NSQ)80-12-7.5 |
100 |
80 |
12 |
7.5 |
30 |
25 |
100ZSQ(NSQ)100-10-7.5 |
100 |
100 |
10 |
7.5 |
40 |
26 |
100ZSQ(NSQ) 80-20-11 |
100 |
80 |
20 |
11 |
40 |
27 |
100 ZSQ(NSQ) 50-26-11 |
100 |
50 |
26 |
11 |
40 |
28 |
100 ZSQ(NSQ) 70-22-11 |
100 |
70 |
22 |
11 |
50 |
29 |
100ZSQ(NSQ) 100-15-11 |
100 |
100 |
15 |
11 |
50 |
30 |
100ZSQ(NSQ)85-30-15 |
100 |
85 |
30 |
15 |
50 |
31 |
100ZSQ(NSQ)60-35-15 |
100 |
60 |
35 |
15 |
50 |
32 |
100ZSQ(NSQ)50-40-15 |
100 |
50 |
40 |
15 |
50 |
33 |
100 ZSQ(NSQ) 100-28-15 |
100 |
100 |
28 |
15 |
50 |
34 |
150ZSQ(NSQ) 140-18-15 |
150 |
100 |
60 |
15 |
50 |
35 |
150ZSQ(NSQ) 150-15-15 |
150 |
150 |
15 |
15 |
50 |
36 |
150ZSQ(NSQ)200-10-15 |
150 |
200 |
10 |
15 |
50 |
37 |
100ZSQ(NSQ)70-40-18.5 |
100 |
70 |
40 |
18.5 |
50 |
38 |
150ZSQ(NSQ)180-15-18.5 |
150 |
180 |
15 |
18.5 |
50 |
39 |
100ZSQ(NSQ)130-30-22 |
100 |
130 |
30 |
22 |
50 |
40 |
100ZSQ(NSQ)80-35-22 |
100 |
80 |
35 |
22 |
50 |
41 |
150ZSQ(NSQ)150-22-22 |
150 |
150 |
22 |
22 |
50 |
42 |
150ZSQ(NSQ)200-15-22 |
150 |
200 |
15 |
22 |
50 |
43 |
150ZSQ(NSQ)300-15-30 |
150 |
300 |
20 |
30 |
50 |
44 |
150ZSQ(NSQ)240-20-30 |
150 |
240 |
20 |
30 |
50 |
45 |
100ZSQ(NSQ)70-38-30 |
100 |
70 |
38 |
30 |
50 |
46 |
100ZSQ(NSQ)60-45-30 |
100 |
60 |
45 |
30 |
50 |
47 |
10ZSQ(NSQ)100-35-30 |
100 |
100 |
35 |
30 |
50 |
48 |
150ZSQ(NSQ)150-30-30 |
150 |
150 |
30 |
30 |
50 |
49 |
150ZSQ(NSQ)300-20-37 |
150 |
300 |
20 |
37 |
50 |
50 |
100ZSQ(NSQ)100-50-37 |
150 |
100 |
50 |
37 |
50 |
51 |
150ZSQ(NSQ)400-15-37 |
150 |
400 |
15 |
37 |
50 |
52 |
150ZSQ(NSQ)200-30-45 |
150 |
200 |
30 |
45 |
50 |
53 |
150ZSQ(NSQ)500-15-45 |
150 |
500 |
15 |
45 |
50 |
54 |
150ZSQ(NSQ)150-35-45 |
150 |
150 |
35 |
45 |
50 |
55 |
150ZSQ(NSQ)250-35-55 |
150 |
250 |
35 |
55 |
50 |
56 |
150ZSQ(NSQ)150-45-55 |
150 |
150 |
45 |
55 |
50 |
57 |
200ZSQ(NSQ)600-15-55 |
200 |
600 |
15 |
55 |
50 |
58 |
150ZSQ(NSQ)350-35-75 |
150 |
350 |
35 |
75 |
50 |
59 |
150ZSQ(NSQ)200-45-75 |
150 |
200 |
45 |
75 |
50 |
60 |
200ZSQ(NSQ)500-20-75 |
200 |
500 |
20 |
75 |
50 |
61 |
150ZSQ(NSQ)150-50-75 |
150 |
150 |
50 |
75 |
50 |
62 |
150ZSQ(NSQ)200-60-90 |
200 |
200 |
60 |
90 |
50 |
63 |
200ZSQ(NSQ)450-30-90 |
250 |
450 |
30 |
90 |
50 |
64 |
200ZSQ(NSQ)480-37-110 |
200 |
480 |
37 |
110 |
50 |
65 |
300ZSQ(NSQ)1000-18-110 |
300 |
1000 |
18 |
110 |
50 |
66 |
200ZSQ(NSQ)500-50-132 |
200 |
500 |
50 |
132 |
50 |
67 |
300ZSQ(NSQ)1000-22-132 |
300 |
1000 |
22 |
132 |
50 |
