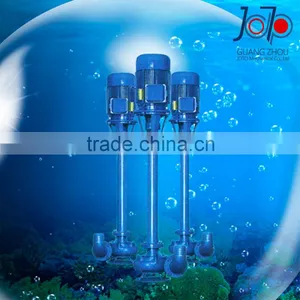

NL-type sewage mud single-stage single-suction centrifugal multi-purpose solution pump
- 10000 Piece / Pieces per Month
- Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Guangdong, China | Brand Name: | JOTO | Model Number: | NL series |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric |
Pressure: | Low Pressure | Application: | Sewage |
Product Description
Sewage Mud Pump
The pump is a single-stage single suction centrifugal pump, the fluid along the axis of pump shaft is 70 degrees to the direction of outflow, the main components of a volute, impeller, pump, pump shell, a supporting cylinder, a motor seat, motor etc. Volute pump base, motor seat and the impeller nut are cast iron, wear resistance, good corrosion resistance, easy processing.
Impeller for the three single - string bending garden leaves, uses a semi enclosed impeller, and the use of malleable iron, the high strength, corrosion resistance; the processing is convenient, good passing ability, high efficiency.
In order to reduce weight and reduce the amount of turning, the pump shaft is made of quality carbon steel cold drawn steel.
The pump can be vertical or inclined to use, small footprint, volute working medium to be buried in work, easy to start, without diversion. From the direction of motor rotation is clockwise direction to see the end of the work.
Switchboard length with a variety of specifications for the use of units selected according to the application according to local conditions.

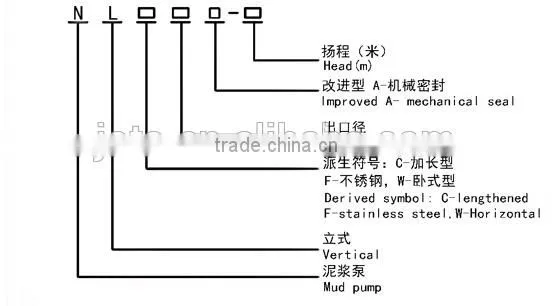

MODEL MEANING:

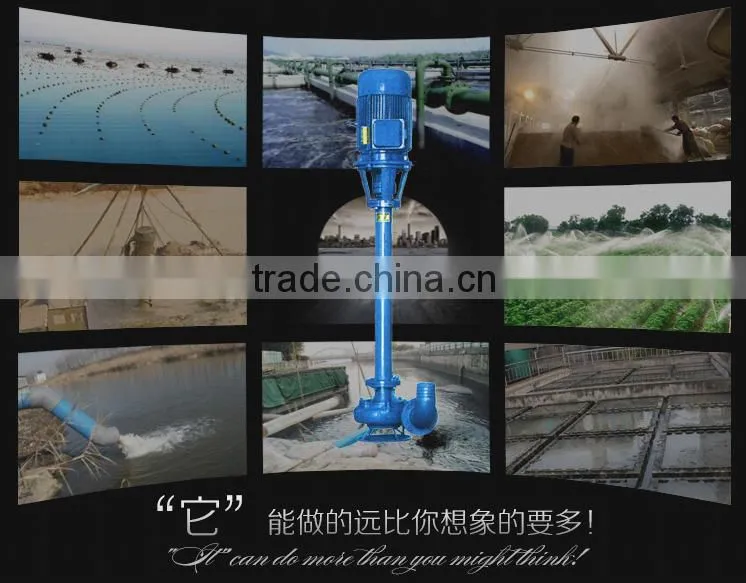

USAGE:
1.Mainly used in rural river mud, manure, water, pulp feedstuff poured, instead of man bear, and make drainage, drought purposes, but also for car coast head on the river mud and other manure production but also for the rural simple fire pump.
2.Used in municipal engineering, chemical industry, printing and dyeing, pharmaceutical, food industries such as shipbuilding, casting, pump thick liquid, foul liquid, paste, the flow of sand and city river flow sludge can also be used as a small coal mines fluid containing mud gravel.
3.If the water with high pressure pump, hydraulic machinery, earthmoving machine, used for ground leveling, dredging, drilling and other small-scale water conservancy project River and pond excavation and transportation, as well as the city's air defense engineering, underground engineering.
4.Fish used as a water pond, fish pond oxygen etc..
IF YOU NEED OTHER VOLATGE,PLS LET US KNOW.
MODEL | SPEED(R/MIN) | FLOW(M3/H) | HEAD(M) | EFF.(%) | POWER(KW) | WEIGHT(KG) | LENGTH(MM) |
NL50-8 | 1430 | 20-30 | 8-9 | 42 | 1.5 | 63 | 1310 |
NL50A-8 | 1430 | 20-30 | 8-9 | 42 | 1.5 | 63 | 1310 |
NL50-12 | 1430 | 25-38 | 12-14 | 41 | 3 | 80 | 1310 |
NL50A-12 | 1430 | 25-38 | 12-14 | 41 | 3 | 80 | 1310 |
NL65-16 | 1430 | 50-60 | 15-18 | 42 | 5.5 | 152 | 1430 |
NL65A-16 | 1430 | 50-60 | 15-18 | 42 | 5.5 | 152 | 1430 |
NL76-9 | 1430 | 50-70 | 9-10 | 59 | 3 | 80 | 1330 |
NL76A-9 | 1430 | 50-70 | 9-10 | 59 | 3 | 80 | 1330 |
NL80-12 | 1430 | 80-120 | 11-13 | 56 | 7.5 | 145 | 1430 |
NL80A-12 | 1430 | 80-120 | 11-13 | 56 | 7.5 | 145 | 1430 |
NL100-16 | 1430 | 80-100 | 15-17 | 61 | 15 | 270 | 1510 |
NL100A-16 | 1430 | 80-100 | 15-17 | 61 | 15 | 270 | 1510 |
NL150-12 | 1430 | 100-150 | 11-13 | 66 | 18.5 | 350 | 1690 |
NL150A-12 | 1430 | 100-150 | 11-13 | 66 | 18.5 | 350 | 1690 |
NL150-16 | 1430 | 120-180 | 15-20 | 65 | 22 | 390 | 1690 |
NL150A-16 | 1430 | 120-180 | 15-20 | 65 | 22 | 390 | 1690 |
IMAGE:
