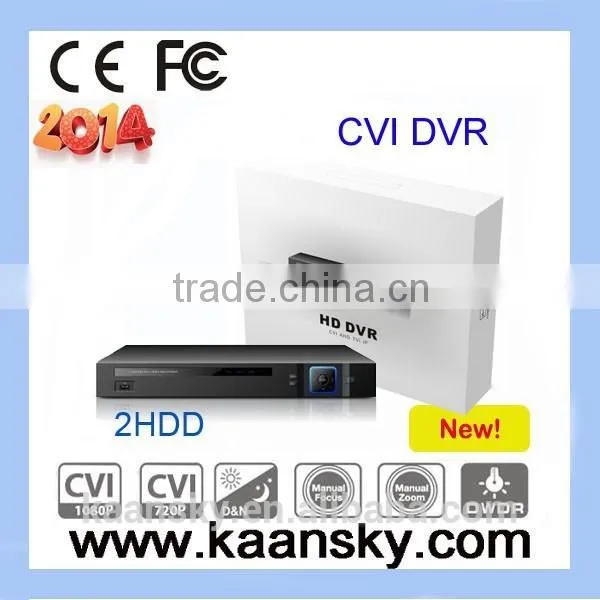

2015 Dahua HD CVI DVR for Recording HD CVI Camera,CVI DVR 4CH,CVI DVR 8CH,CVI DVR 16CH Optional

2015 Dahua HD CVI DVR for Recording HD CVI Camera,CVI DVR 4CH,CVI DVR 8CH,CVI DVR 16CH Optional thumbnail-1
2015 Dahua HD CVI DVR for Recording HD CVI Camera,CVI DVR 4CH,CVI DVR 8CH,CVI DVR 16CH Optional photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
KAANSKY
Model Number:
KST-7108
Contact Supplier Request Quote Chat Now
Shenzhen Kaansky Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name KAANSKY
Model Number KST-7108

Specifications

fessional manufacturer in Shenzhen.
2.OEM,ODM
3.CE,FCC,CCC,RoHS
4Focus on IP camera,HD-SDI camera,high speed dome camera

Features:

1.The latest H.264 compression

2.User friendly Graphic interface

3.with 4/8CH 720P resolution recording

4.Remote full access via IE&client software

5.Mobile viewing from smart phone and pad

6.Unique files system for security

7.E-sata connector for fast backup,HDMI output for high definition images

Model KST-7104 KST-7108 KST-6216
Operating System Embedded LINUX
Video Input 4 channel, BNC 8channel, BNC 16 channel, BNC
Standard NTSC(525Line, 60f/s), PAL(625Line, 50f/s)
Audio Input 4 channel, BNC   Output:1channel,BNC
Video Interface 1 HDMI, 1 VGA ,1 BNC
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Video/Audio Compression H.264 / G.711
Record Resolution 720P(1280×720/1280×600)/960H(960×576/960×480)/D1/4CIF(704×576/704×480) / CIF(352×288/352×240) / QCIF(176×144/176×120)
Record Rate Main stream 720P/960H/D1/HD1/2CIF/CIF(1~25/30fps)
Extra stream CIF/QCIF(1~25/30fps)
Recording Mode Manual, Schedule(Regular(Continuous), MD, Alarm), Stop
Recording Interval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video detection Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank
Alarm Input 4 channel 8channel 16channel
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen tips
Sync Playback 1/4 1/4/8 1/4/8/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Backup Mode USB Device / Network
Ethernet RJ-45 port (10/100M/1000M)
Network Functions HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Alarm Server
Max.User access 128users
Smart Phone iPhone, iPad, Android, Windows Phone
Internal HDD 1 SATA port,up to 4TB 2SATA port,up to 4TB
USB interface 2ports(1 rear)USB2.0
RS485 1port,for PTZ control
Power Supply AC 100~240 V, 50/60 Hz
Working Environment -10 ~+55°C / 10~90%RH / 86~106kpa
