YDB and BDB Drive Shaft Dynamic Balancing Machine
Description:
This series balancing machine is hard bearing, use frequency motor drive, belt drive, two side balance, the test system using RYW(suit to batch balance) and YYW(suit to balance many kinds YDB of workpieces), install industrial control computer and control cabinet. You can only change the clamps to install workpiece, then balance and test every type cars drive shafts, the system test precision highly, good quality, easy to operate.

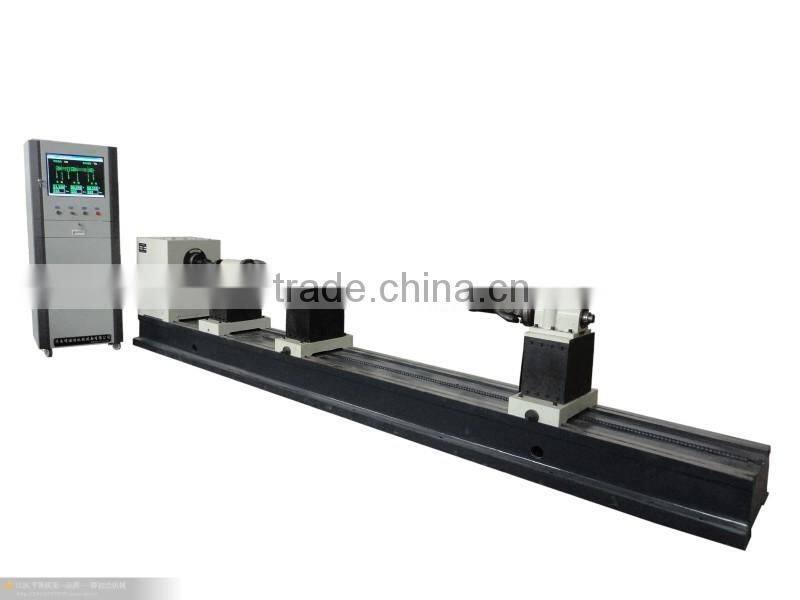

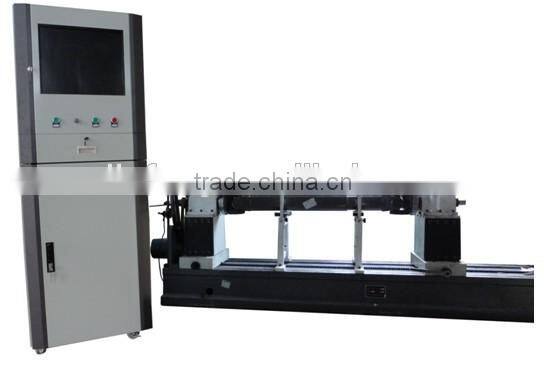

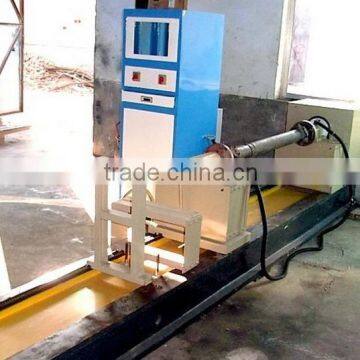

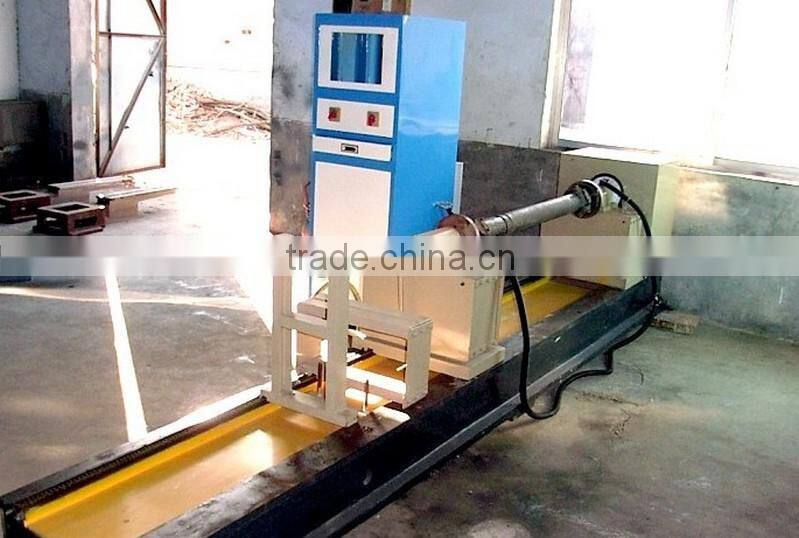

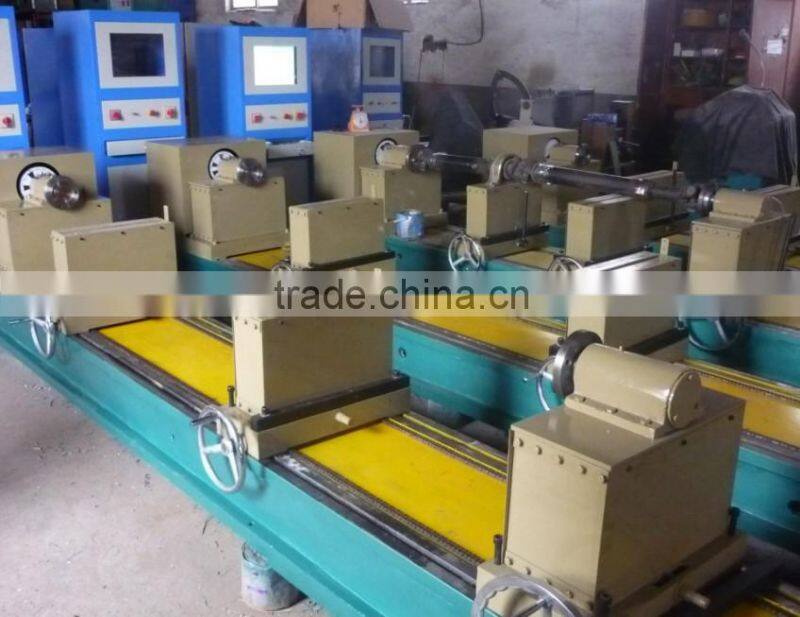

Pictures:
Specificaton:
Model |
YDB-16A |
YDB-50A |
YDB-100A |
YDB-160A |
YDB-200A |
YDB-300A |
Max.weight(kg) |
16kg |
50 |
100 |
160 |
200kg |
300 |
Max.diameter(mm) |
140 |
160 |
180 |
200 |
220 |
240 |
Max.length between two bearings(mm) |
500 |
1000 |
2100 |
2300 |
2400 |
2600 |
Balancing speed(rpm) |
900/1800 |
900/1800 |
900/1800 |
900/1800 |
500-3600 |
500-3600 |
|
min. achievable residual unbalance(g.mm/kg): |
5 |
5 |
5 |
5 |
5 |
5 |
Unbalance reduction ratio(%): |
≥85% |
≥85% |
≥85% |
≥85% |
≥85% |
≥85% |
Motor power(kw) |
0.45/0.55 |
0.8/1.1 |
2/2.4 |
2/2.4 |
4 |
4.5 |
Adjusting speed type |
Frequency |
Frequency |
Frequency |
Frequency |
Frequency |
Frequency |
