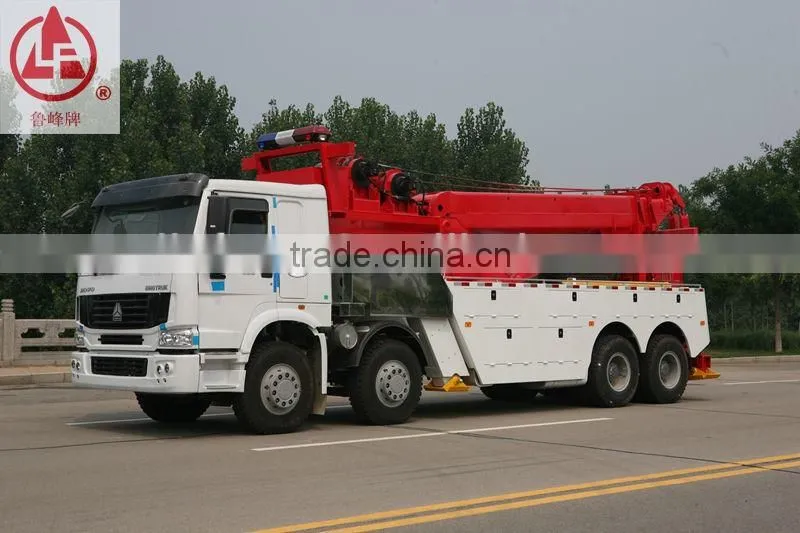

Help CenterChina Brand LUFENG Tow Truck Rotator 50T FROM MAUFACTURER FOR SALE
Related Products
-
Heavy Duty Roation Road Recovery Truck for Bus,tractor and Heavy TrucksNegotiableMOQ: 1 Set -
New Condition 50 Ton SINOTRUK HOWO Chassis Rotator Recovery Tow Truck for SaleUS$ 130,000 - 148,000MOQ: 1 Set
-
Heavy Futy Road Recovery Truck ,tow Truck and WreckerNegotiableMOQ: 1 Set
-
ST5310TQZCZ Tow Truck WreckerNegotiableMOQ: 1 Set
-
ST5310TQZMZ Tow Truck WreckerNegotiableMOQ: 1 Set
Specifications
Tow Truck Rotator 50TRated Tow Weight:55ton
Axle Number:4 axles
driving type 8x4
Engne:Euro II emission standard
Tow Truck Rotator 50T
MAIN DESCRIPTION | ||||
Overall Dimensions |
11210mm*2496mm*3820mm(L*W*H) |
|||
Dead Weight |
32800kg |
Front Overhang |
1500mm |
|
Wheelbase |
1800mm+4600mm+1350mm |
Rear Overhang |
1960mm |
|
Rated Tow Weight |
55ton |
|||
CHASSIS | ||||
Chassis Brand& Model |
SINOTRUK HOWO ZZ1317N4667W |
|||
Axle Number |
4 axles, driving type 8x4 |
|||
Cab |
HW76, left hand drive, air-conditioner, one sleeper |
|||
Engine |
SINOTRUK WD615.69, 336hp, Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L |
|||
Transmission |
HW15710, No. of speeds: 10 forward & 2 reverse |
|||
Steering |
German ZF8098, turning system pressure 18MPa |
|||
Clutch |
Model 430, Single-plate dry clutch |
|||
Rear Axle |
HW1697 tandem axle, rated load 2x13ton, ratio 4.22 |
|||
Wheels and tires |
Rim 8.5-20; tire 12.00-20, 10 units, with one spare wheel |
|||
Brakes |
Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake |
|||
TOW BODY | ||||

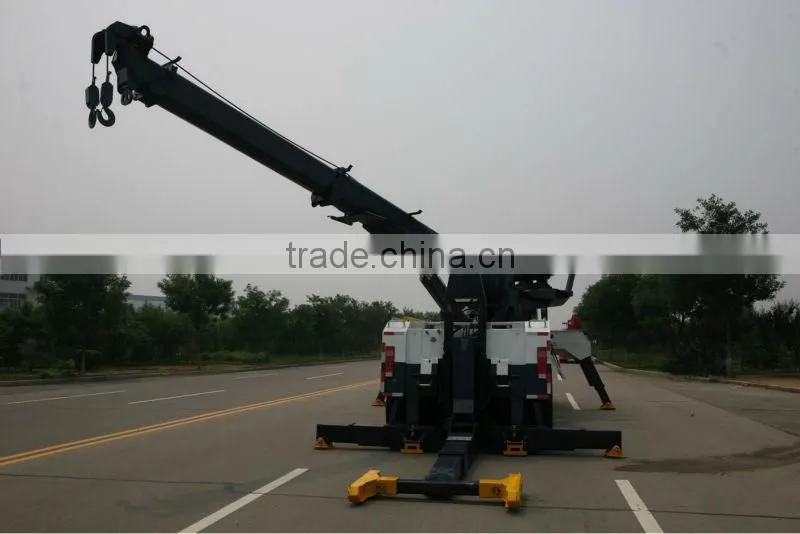

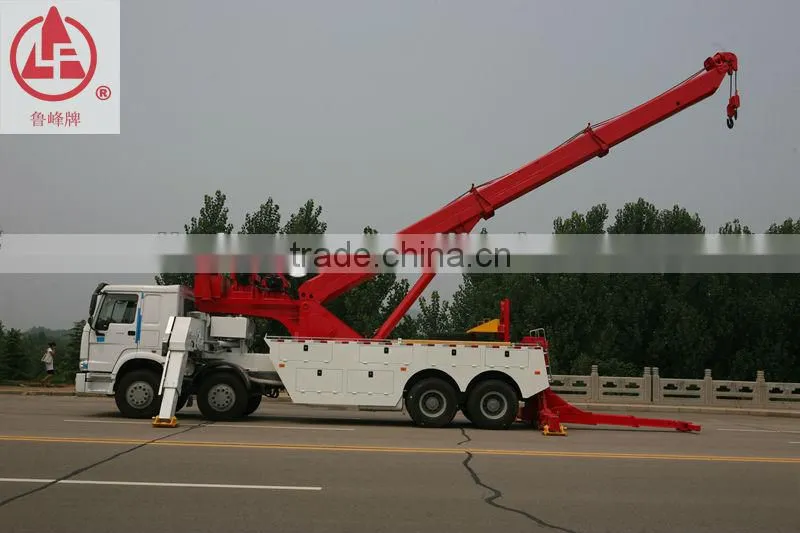

BOOM |
Max. lift weight when boom all retracted |
50000kg |
||
Max. lift height when boom all extended |
12500mm |
|||
Telescopic distance |
6000mm |
|||
Range of elevation angle |
5-60° |
|||
Rotation angle |
360°continuous |
|||

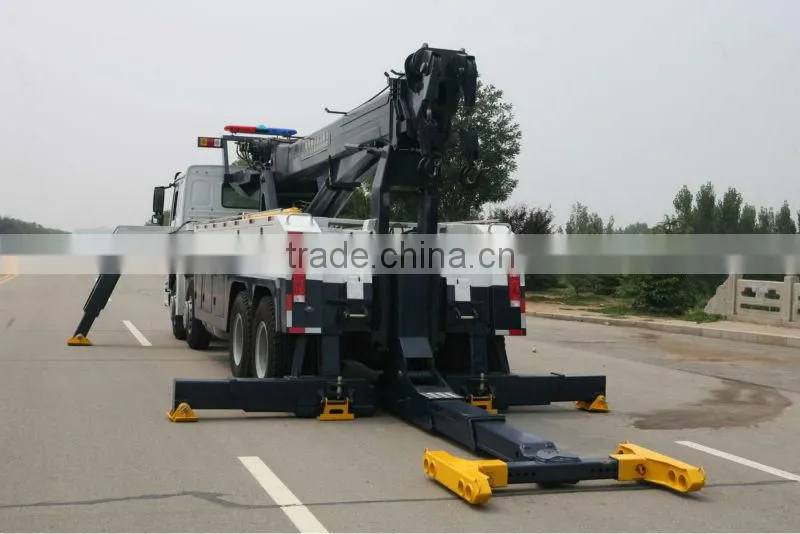

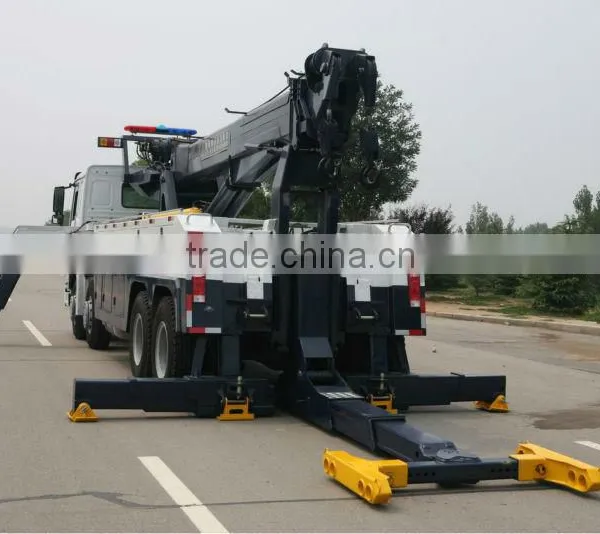

UNDER-LIFT |
Max. parking lift weight when under-lift all retracted |
25000kg |
||
Max. parking lift weight when under-lift all extended |
8500kg |
|||
Rated running lift weight when under-lift all retracted |
13800kg |
|||
Max. effective length |
3390mm |
|||
Telescopic distance |
1850mm |
|||
Range of elevation angle |
-9°-93° |
|||
Folding angle |
102° |
|||
WINCH& CABLE |
Rated pull of winch |
250KNx2units |
||
Cable diameter*Length |
18mm*50m |
|||
Min. line speed of cable |
5m/min |
|||
LANDING LEG |
Support force of landing legs |
4x147KN |
||
Longitudinal span of front and rear landing legs |
7760mm |
|||
Transverse span of front outriggers |
6300mm |
|||
Transverse span of rear landing legs |
4320mm |
|||
