Home > Transportation > Specialized Vehicle > Wrecker > Heavy Futy Road Recovery Truck ,tow Truck and Wrecker

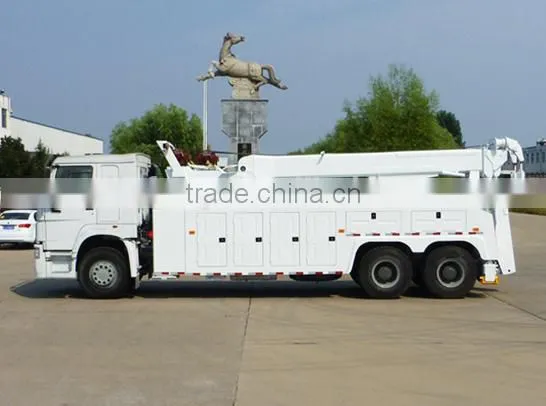

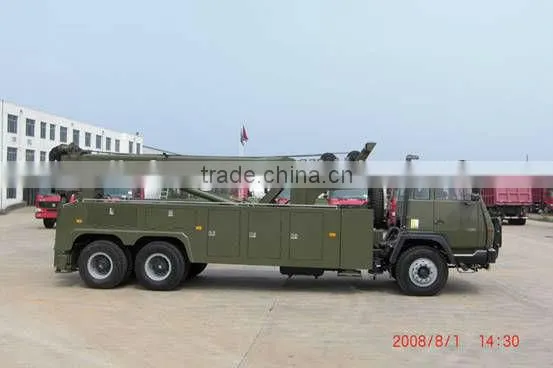

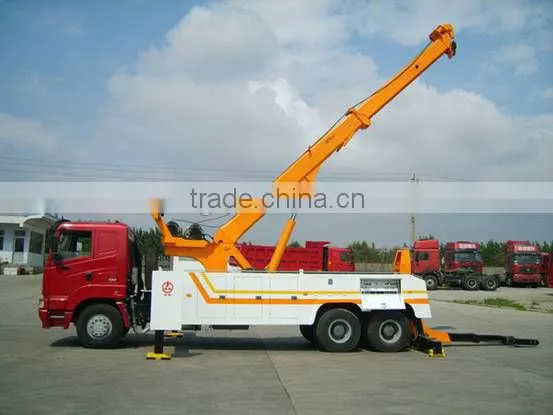

Heavy Futy Road Recovery Truck ,tow Truck and Wrecker

Name: Heavy Futy Road Recovery Truck ,tow Truck and Wrecker
Brand: LUFENG,SINOTRUK HOWO
SKU: 122028087

Heavy Futy Road Recovery Truck ,tow Truck and Wrecker thumbnail-1

Heavy Futy Road Recovery Truck ,tow Truck and Wrecker photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Fuel Type:

Diesel

Emission Standard:

Euro 3

Condition:

New

Contact Supplier Request Quote Chat Now

Shandong Lufeng Special-Purpose Vehicle Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO TIANJIN SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Fuel Type Diesel

Emission Standard Euro 3

Condition New

Transmission Type Manual

Dimensions (L x W x H) (mm) 10540mm*2496mm*3640mm

Place of Origin Shandong, China

Brand Name LUFENG,SINOTRUK HOWO

Model Number ST5310TQZCZ

Specifications

Tow Truck ST5310TQZCZ (Rotator)
Max. lift weight when boom all retracted:20000kg
Axle Number:3 axles, driving type 6x4

Product Description

Tow Truck ST5310TQZCZ (Rotator)

MAIN DESCRIPTION
Overall Dimensions		10540mm2496mm3640mm(LWH)
Dead Weight		23710kg	Front Overhang	1500mm
Wheelbase		5800mm+1400mm	Rear Overhang	1840mm
Rated Tow Weight		30ton
CHASSIS
Chassis Brand& Model		SINOTRUK HOWO ZZ1257M5841W
Axle Number		3 axles, driving type 6x4
Cab		HW76, left hand drive, air-conditioner, one sleeper
Engine		SINOTRUK WD615.87, 290hp, Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L
Transmission		HW15710, No. of speeds: 10 forward & 2 reverse
Steering		German ZF8098, turning system pressure 18MPa
Clutch		Model 430, Single-plate dry clutch
Rear Axle		HW1697 tandem axle, rated load 2x13ton, ratio 4.22
Wheels and tires		Rim 8.5-20; tire 12.00-20, 10 units, with one spare wheel
Brakes		Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake
TOW BODY
BOOM	Max. lift weight when boom all retracted				20000kg
	Max. lift height when boom all extended				9500mm
	Telescopic distance				3510mm
	Range of elevation angle				0-50°
	Rotation angle				360°continuous
UNDER-LIFT	Max. parking lift weight when under-lift all retracted				16000kg
	Max. parking lift weight when under-lift all extended				5600kg
	Rated running lift weight when under-lift all retracted				7600kg
	Max. effective length				2980mm
	Telescopic distance				1640mm
	Range of elevation angle				-9°-93°
	Folding angle				102°
WINCH& CABLE	Rated pull of winch				100KNx2units
	Cable diameter*Length				18mm*30m
	Min. line speed of cable				5m/min
LANDING LEG	Support force of landing legs				4x147KN
	Longitudinal span of front and rear landing legs				6300mm
	Transverse span of front outriggers				5110mm
	Transverse span of rear landing legs				4060mm

Company Information

Shandong Lufeng Special-Purpose Vehicle Co.,Ltdis a group company with over 40 years history on automobile manufacturing. Our company main products consist of LUFENG brand semi-trailer, dump truck, concrete mixer truck, tow truck and other special vehicles. The annual output capacity has reached 10000 units. Our company develop ourselves in providing special vehicles for global market. Lufeng group has two subsidiaries:

Tai’an Tongyuan Machinery Co.,Ltd & Shanghai Luqing International Trade Co.,Ltd.

Tai’an Tongyuan Machinery Co.,Ltd is a professional manufacturer of high quality tow trucks, and tow truck capacity is from 3 ton to 60 ton.

Shanghai Luqing International Trade Co.,Ltd founded in Shanghai Free Trade Zone by Lufeng Group. We engaged in import and export of vehicles, equipments and machineries. With particular location and policies advantages of Shanghai free trade zone, the products have been exporting to majority countries of the world.

FAQ

Loading Port: QINGDAO,TIANJIN,SHANGHAI or other ports at China

Payment term: by T/T,30% advanced payment, and balance before shipment by T/T ;

by L/C,50% deposit by T/T, and 50% by irrevocable L/C at sight

Delivery time: The goods shall be prepared for shipment within seven days after receiving balance payment by T/T

Min. order quanlity: 1 set

Supply ability: 200 sets/month
