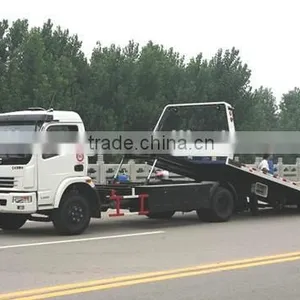

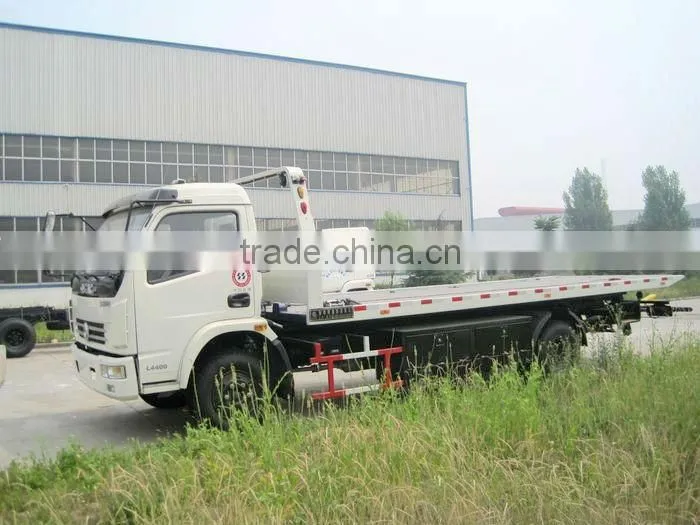

Help CenterST5081TQZBP Platform Wrecker,flatbed Tow Truck & Road Wrecker
Related Products
-
14m Aerial Working Platform Truck With Best PriceNegotiableMOQ: 1 Set -
14m Aerial Working Platform Truck Competitive PriceNegotiableMOQ: 1 Set
-
China Brand LUFENG Tow Truck Rotator 50T FROM MAUFACTURER FOR SALENegotiableMOQ: 1 Set
-
Heavy Duty Roation Road Recovery Truck for Bus,tractor and Heavy TrucksNegotiableMOQ: 1 Set
-
New Condition 50 Ton SINOTRUK HOWO Chassis Rotator Recovery Tow Truck for SaleUS$ 130,000 - 148,000MOQ: 1 Set
Specifications
ST5081TQZBT platform wreckerengine power:100/136(kw/hp)
platform max.loaded weight:5000kg
underlift rating tower mass:8000kg
ST5081TQZBP road wrecker
chassis model: EQ1081TJ12D5
engine model: CY4102-C3B
engine power: 100/136(kw/hp)
wheel base: 4400mm
Platform
dimension of the flatform:6400*2450mm
extension stroke: 3600mm
max.loaded weight: 5000kg
min.obliquity: 11
rating pulling force of winch: 54KN
Underlift
rating lifting mass: 2500kg
rating tower mass: 8000kg
max.effective length of underlift: 2150mm
extension stroke: 1500mm
Flatbed tow truck & wrecker technical characteristics:
1.Digestion and absorption in the United States and Britain repair car technology design and manufacturing
2.Key components with finite element stress analysis (CAE)
3.Important parts adopt high quality carbon steel rectangular tubes, no welding deformation
4.Hydraulic system adopt two-stage filtration technology, ensure that the hydraulic system clean
5.Hydraulic line key sealers adopt Germany imported seals
6.Gas through the pipeline protection valve lead to air units to ensure the safety of the vehicle brake system
7.Equipped with ratchet bundling device to rescue them quickly and securely
8.Equipped with three kinds of specifications fork lift, so as to adapt to all kinds of models
9.Folding plate, more suitable for the rescue front bumper ultra-low limousine
10.Voice prompt: "please take off take driving force device", highlights the humanized design
11.Optional automatic tire holding fixture type, trailer more quickly
12.Choose dedicated to rescue the state of the wheel braking roller device (patent technology)
13.Optional side device, and improve rescue ability
