Specifications
Tri-axle Fuel Tank Semi-trailer ST9400GYY1.payload:34680kg
2.tank volume:40.8cbm
3.Rim:steel disc,8.0-20;Tire:11.00R20,12

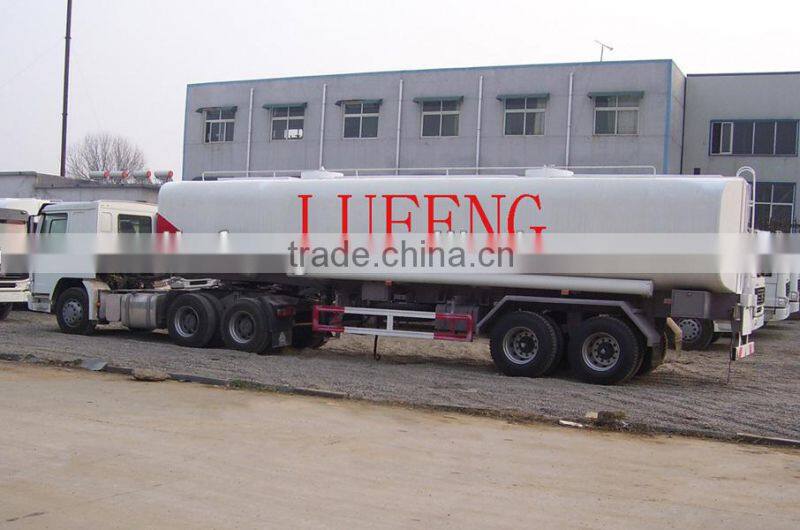

Tri-axle Fuel Tank Semi-trailer ST9400GYY
GENERAL | |||||||
Overall Dimension |
13,000mm*2,500mm*3,900mm(L*W*H) |
||||||
King Pin Setting |
1,450mm |
Pay Load |
34,680kg |
Dead Weight |
13,630kg |
||
RUNNING GEAR | |||||||
Suspension |
Under mount tri-axle suspension with equalizer, 11-leaf spring |
||||||
Hub |
Cast steel 10 studs, oil seals |
||||||
Rim & Tire |
Rim: steel disc, 8.0-20; Tire: 11.00R20, 12units |
||||||
Axles |
CNHTC axle, 13 tons load capacity |
||||||
Brakes |
Dual lines pneumatic brake system; Emergency relay valve, made in China; 30/30+30chambers, air-actuated |
||||||
TANK | |||||||
Tank Volume |
40.8cbm |
||||||
Tank Material |
Steel material Q235, Thickness 6mm |
||||||
Structure |
Containing 8 anti-surge baffles, Three lockable manholes 500mm in diameter. |
||||||
Other Fittings |
A steel ladder is equipped at the rear of the tank, 2 fire extinguishers, 2 pcs of hose, diameter 100mm of 6 meters. |
||||||
UNDERFRAME | |||||||
Main Beam |
I shape,Mild Alloy (16Mn) by Automatic submerged arc welding, Hight 420mm, Top flange thickness 8mm, middle flange thickness 8mm, bottom flange thickness 16mm |
||||||
King pin |
Welded kingpin, size 50# (2'') or 90#(3.5’’) |
||||||
Landing Gear |
Both sides manual operation type with sand shoe, made in China |
||||||
Appendix |
1 tool box, length 1.5m |
||||||
ELECTRICAL & PAINT | |||||||
Lights & Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
||||||
Wiring |
24V, 6 lines |
||||||
Air/Elec. Connector |
ISO standard air connector |
||||||
24V 7 pin plug socket | |||||||
Color |
Upon request |
||||||
we alo have:
