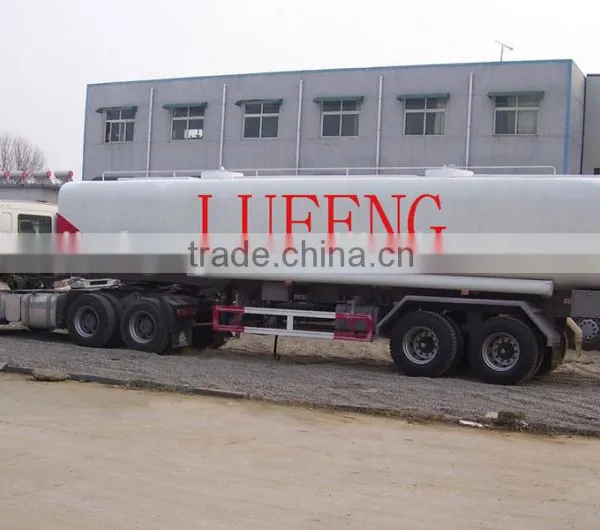

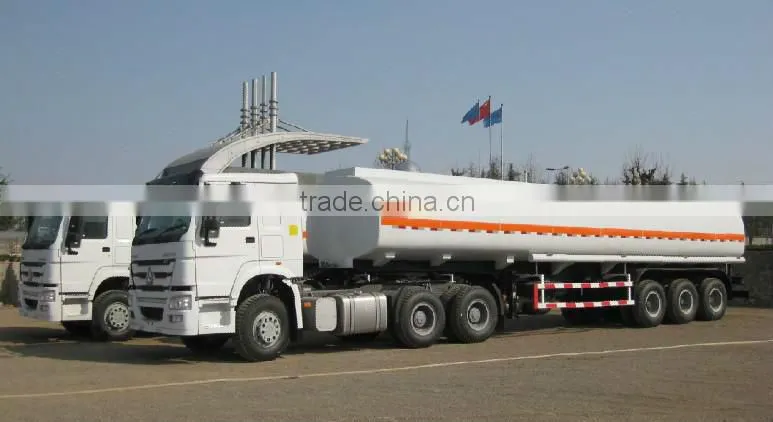

Tri-Axle Fuel/Oil Tank Semi-trailer,transport Oil,LPG

Name: Tri-Axle Fuel/Oil Tank Semi-trailer,transport Oil,LPG
Brand: LUFENG
SKU: 122025853

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Semi-Trailer

Material:

Aluminum / Alloy

Size:

13500mm*2500mm*3900mm

Shandong Lufeng Special-Purpose Vehicle Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Aluminum / Alloy

Size 13500mm*2500mm*3900mm

Max Payload 38400kg

Place of Origin Shandong, China

Brand Name LUFENG

Model Number ST9400GYY

Specifications

Three Axle Oil Tank Semi-trailer
Overall Dimension:13500mm*2500mm*3900mm(L*W*H)
King Pin Setting:1450mm
Pay Load:38,400kg

GENERAL
Overall Dimension				13,500mm2,500mm3,900mm(LWH)
King Pin Setting				1,450mm	Pay Load	38,400kg	Curb Weight	12,700kg
RUNNING GEAR
Suspension		Under mount three axle suspension with equalizer, 11-leaf spring
Hub		Cast steel 10 studs, oil seals
Tire		315/80R22.5, 12units
Axles		BPW axle, load capacity 13 tons per axle
Brakes		Dual lines pneumatic brake system; Emergency relay valve; 30/30 chambers, air-actuated
TANK
Tank Capacity			42800 Liters
Tank Material			Steel material Q235, Thickness 5mm
Structure			Containing 4 separated compartments.
Discharging system			With pump, No flow meter.
Other Fittings			A steel ladder is equipped at the rear of the tank, 2 pcs of hose, diameter 100mm of 6 meters. Balcony on top(protection of man).
UNDERFRAME
Main Beam		I shape, Steel Q345 by Automatic submerged arc welding
King pin		Size 3.5'', Bolt on king pin
Landing Gear		Both sides manual operation type with sand shoe.
Appendix		1 tool box, length 1.5m
ELECTRICAL & PAINT
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector
	24V 7 pin plug socket
Color	White
