Specifications
20' and 40' container carrier flatbed semi trailerPrfessional manufacturer with high quality and competitive price

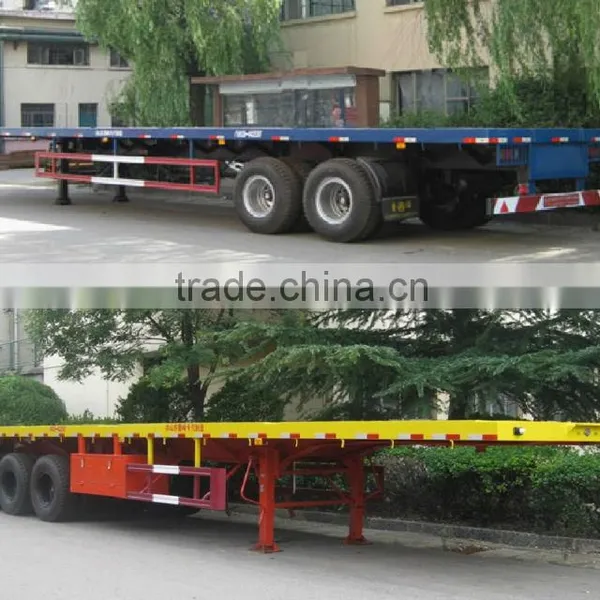

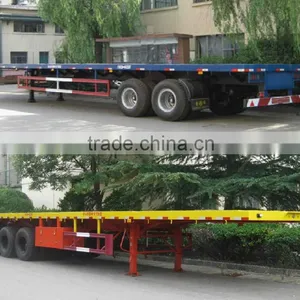

20' and 40' container carrier flatbed semi trailer
Model |
Dual-axle Flatbed Semi-trailer |

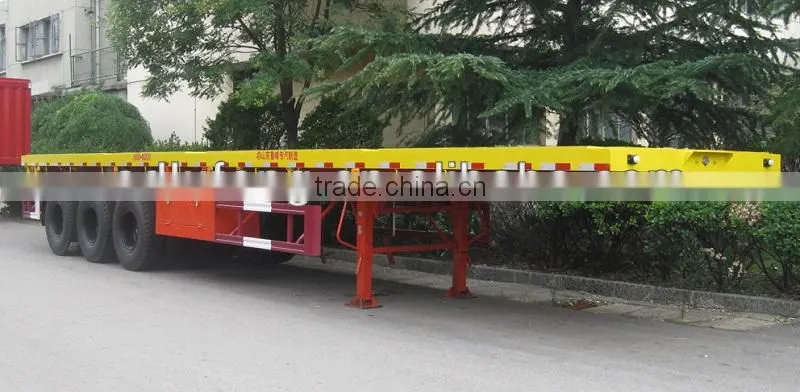

Tri-axle Flatbed Semi-trailer |
|
|
General |
Overall Dimension |
12340mm×2490mm×1600mm |
|
Tare Weight |
4900kg |
7630kg |
|
Pay Load |
31ton |
40ton |
|
King Pin Setting |
1240mm |
||
Rear Overhang |
1845mm |
1690mm |
|
Track |
1840mm |
||
Wheelbase |
7950mm+1305mm |
6800mm+1305mm+1305mm |
|
|
Running Gear |
Suspension |
Dual-axle 11-pcs leaf spring suspension with equalizer beam |
Tri-axle 11-pcs leaf spring suspension with equalizer beam |
Tires |
11.00R20, 8units |
11.00R20, 12units |
|
Axles |
CNHTC axle, 13T capacity |
||
Brakes |
Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30 air chamber; parking brake |
Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake |
|
|
Under Frame |
Main Beam |
I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. |
|
Cross Beam |
Mild Alloy Q235 |
||

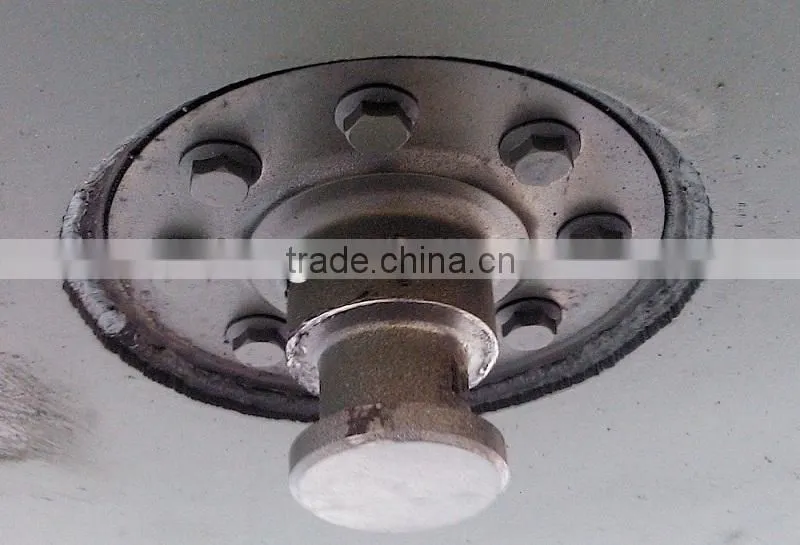

King Pin |
Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled |
||

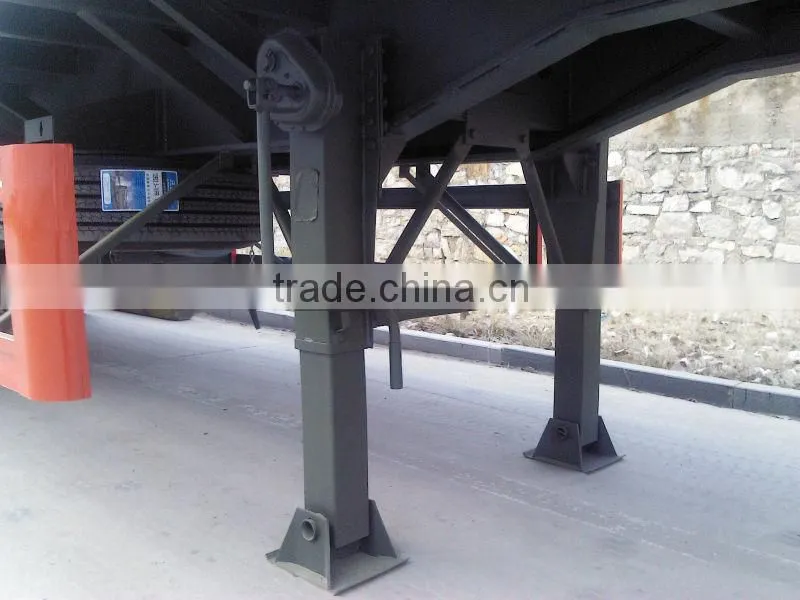

Landing Gear |
Single side operation or double side operation, Static capacity 25Ton |
Single side operation or double side operation, Static capacity 30Ton |
|
Twist Lock |
12 lock positions with 8 twist locks |
||
Flatbed Floor |
Checkered sheet, thickness 2.5mm |
||
Toolbox |
1 tool box, length 1.5m |
||
|
Electrical & Paint |
Lights & Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
Wiring |
24V, 6 lines |
||
Air/Elec. Connector |
ISO standard air connector, 24V 7 pin plug socket |
||
Paint |
color upon request |
||
Nude Packgae.Shipping in container,bulk carrier,deck cargo,roller boat,etc.
Shandong Lufeng Special-purpose Vehicle Co.,Ltd is a professional manufacturer in China ,now we have:
Dump truck & dump semi trailer;
Concrete mixer truck & semi trailer;
Semi Trailer serier(container carrier semi trailer,lowbed semi trailer,bulk cargo semi trailer,cage semi trailer,van box semi trailer,car carrier semi trailer);
Tow truck & wrecker;
Fuel/oil tank truck & semi trailer;
Bulk cement and powder material tank truck & semi trailer;
Truck mounted crane;
Aerial working platform truck;
Dry mortar tank truck,and other special vehicles.
Now we have ISO 9001:2000 and CCC certificate. Lufeng possesses the most advanced domestic designs of special vehicles, and we can design and produce vehicles according to different requirements of customers. Most of our products and technology are national scientific and technological projects, filling the blank of domestic products, being substituted for import and having obtained national patents and awards of national scientific and technological progress. Especially the design and production of our wrecker has reached internationally advanced level.
Loading Port: QINGDAO,TIANJIN,SHANGHAI or other ports at China
Payment term:by T/T,30% advanced payment,and balance before shipment by T/T
Delivery time:The goods shall be prepared for shipment within seven days after receiving balance payment.
Min.order quanlity:1 set
Supply ability:300 sets/month
