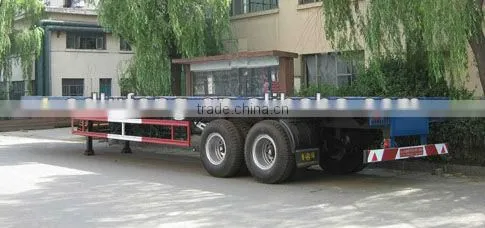

Help CenterDual-axle Flatbed Container Semi-trailer for Transporting Container With 12 Lock Positions
Related Products
-
China Famouse Brand LUFENG Three Axles Gooseneck Cargo Semi TrailerNegotiableMOQ: 1 Unit -
China Hot Sale,LUFENG Brand Two Axles Low-bed Semi-trailer for Heavy and Large MachinesNegotiableMOQ: 1 Set
-
20ft,40ft Container Transport Tri-axle Skeletal Semi-trailer ST9371TJZNegotiableMOQ: 1 Set
-
ST9403 Tri-axle Bulk Cargo Semi-trailerNegotiableMOQ: 1 Set
-
ST9401TJZ Container Transport Semi-trailerNegotiableMOQ: 1 Set
Specifications
Dual-axle Flatbed Semi-trailer ST9261TJZ1.payload:31T
2.Tires:11.00R20,8 units
3.Axles:two axle,load capacity 13T
Dual-axle Flatbed Semi-trailer ST9261TJZ
General | ||||
Overall Dimension |
12340mm*2490mm*1600mm |
|||
Tare Weight |
4900kg |
Pay Load |
31ton |
|
King Pin Setting |
1240mm |
Rear Overhang |
1845mm |
|
Track |
1840mm |
Wheel base |
7950mm+1305mm |
|
Running Gear | ||||
Suspension |
Dual-axle 11-pcs leaf spring suspension with equalizer beam |
|||
Tires |
11.00R20, 8units |
|||
Axles |
CNHTC axle, 13T capacity |
|||
Brakes |
Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30 air chamber; parking brake |
|||
Under Frame | ||||
Main Beam |
I shape, Mild Alloy (16Mn) by Automatic submerged arc welding. |
|||
Cross Beam |
Mild Alloy Q235 |
|||
King Pin |
Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled |
|||
Landing Gear |
Single side operation or double side operation, Static capacity 25Ton |
|||
Twist Locks |
12 lock positions with 8 twist locks |
|||
Flatbed Floor |
Checkered sheet, thickness 2.5mm |
|||
Toolbox |
1 tool box, length 1.5m |
|||
Electrical & Paint | ||||
Lights & Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|||
Wiring |
24V, 6 lines |
|||
Air/Elec. Connector |
ISO standard air connector, 24V 7 pin plug socket |
|||
Paint |
color upon request |
|||
SHANDONG LUFENG SPECIAL-PURPOSE VEHICLE CO.,LTD
There are more than 100 product varieties of 14 series: 9 - 60t various types of semi trailers of fences, container car, flat semitrailer, goose-neck semitrailer of low loading face, 1.5 t-50t carriage transport vechicle, 1.5 t-20t road wrecker, 4.5 t-40t auto-unloading vehicle and semitrailer, 11-50 m3 transport vehicle of particle materials, concrete agitating transport vehicle, compressed dust cart, tank car and virescence insufflation thawing car etc.
Loading Port: QINGDAO,TIANJIN,SHANGHAI or other ports at China
Payment term: by T/T,30% advanced payment, and balance before shipment by T/T ;
by L/C,50% deposit by T/T, and 50% by irrevocable L/C at sight
Delivery time: The goods shall be prepared for shipment within seven days after receiving balance payment
Min. order quanlity: 1 set
Supply ability: 200 sets/month
