Home > Transportation > Trailer > Truck Trailer > Low Bed Semi-trailer for Heavy Equipments and Construction Machinery Transportation

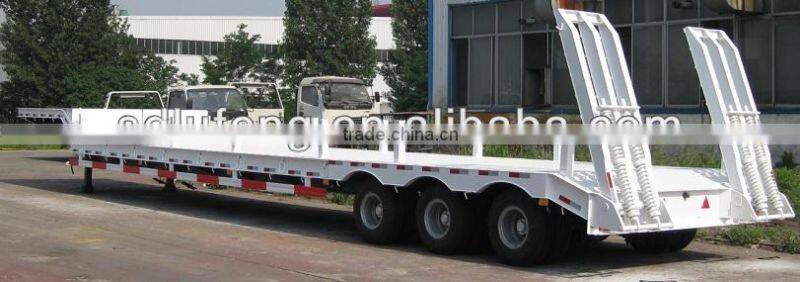

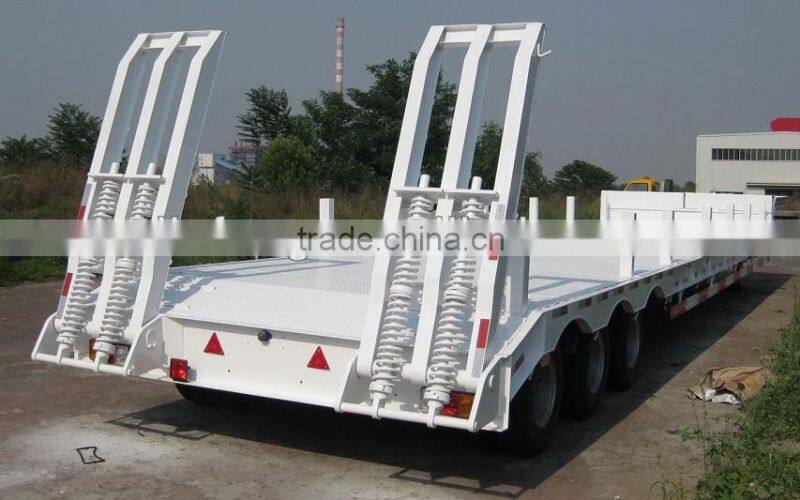

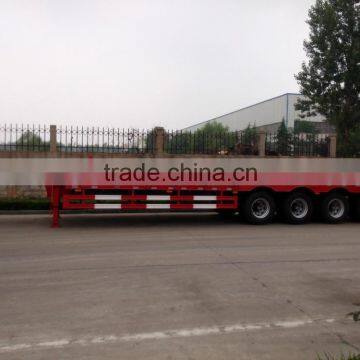

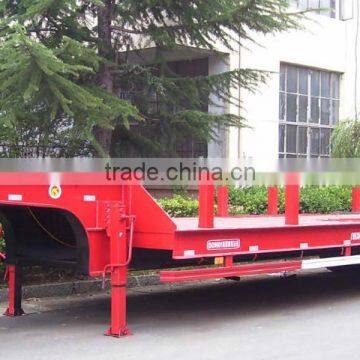

Low Bed Semi-trailer for Heavy Equipments and Construction Machinery Transportation

Name: Low Bed Semi-trailer for Heavy Equipments and Construction Machinery Transportation
Brand: LUFENG
SKU: 122025169
Availability: InStock

Low Bed Semi-trailer for Heavy Equipments and Construction Machinery Transportation thumbnail-1

Low Bed Semi-trailer for Heavy Equipments and Construction Machinery Transportation thumbnail-2

Low Bed Semi-trailer for Heavy Equipments and Construction Machinery Transportation thumbnail-3

Low Bed Semi-trailer for Heavy Equipments and Construction Machinery Transportation photo-1

Low Bed Semi-trailer for Heavy Equipments and Construction Machinery Transportation photo-2

Low Bed Semi-trailer for Heavy Equipments and Construction Machinery Transportation photo-3

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, CCC,ISO

Contact Supplier Request Quote Chat Now

Shandong Lufeng Special-Purpose Vehicle Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Semi-Trailer

Material Steel

Certification Other, CCC,ISO

Size 11960mm*3000mm*2600mm

Max Payload 50 ton

Place of Origin Shandong, China

Brand Name LUFENG

Model Number ST9390TD

Specifications

Tri-axle Lowbed Semi-trailer ST9390TD
1.payload:38T
2.Tires:8.25R20,12units
3.Axles:three axle,load capacity 13T

Product Description

Tri-Axle Lowbed Semi-trailer ST9390TD

General
Overall Dimension		11960mm3000mm2600mm
Flatbed Dimension		8000mm*3000mm
Tare Weight		9630kg	Pay Load	38 ton
King Pin Setting		450mm	Rear Overhang	1250mm
Wheel base		7650mm+1305mm+1305mm	Loading surface height	1150mm
Track		2160mm
Running Gear
Suspension		Tri-axle 8-pcs leaf spring suspension with equalizer beam
Tires		8.25R20, 12 units
Axles		CNHTC axle, 13T capacity
Brakes		Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30 air chamber; parking brake
Under Frame
Main Beam		I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross Beam		Mild Alloy Q235, 25# channel beam
King Pin		Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled
Landing Gear		Single side operation or double side operation, Static capacity 30Ton
Flatbed Floor		Checkered sheet, thickness 4mm
Rear Ladders		Spring power-assisted
Electrical & Paint
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector, 24V 7 pin plug socket
Paint	Color upon request

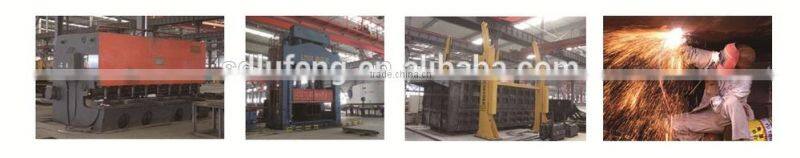

SHANDONG LUFENG SPECIAL-PURPOSE VEHICLE CO.,LTD

There are more than 100 product varieties of 14 series: 9 - 60t various types of semi trailers of fences, container car, flat semitrailer, goose-neck semitrailer of low loading face, 1.5 t-50t carriage transport vechicle, 1.5 t-20t road wrecker, 4.5 t-40t auto-unloading vehicle and semitrailer, 11-50 m3 transport vehicle of particle materials, concrete agitating transport vehicle, compressed dust cart, tank car and virescence insufflation thawing car etc.
