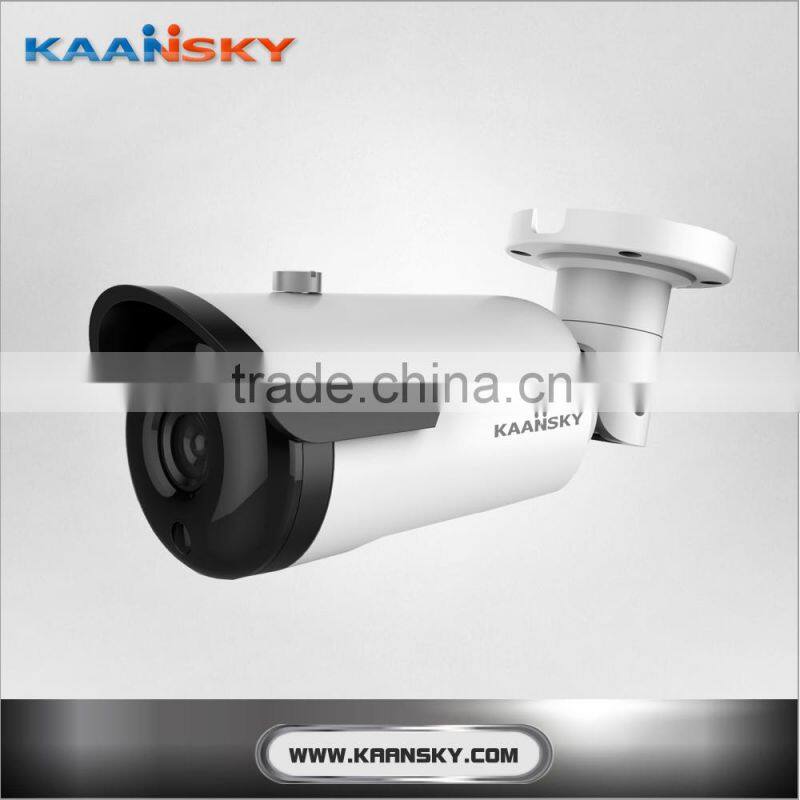

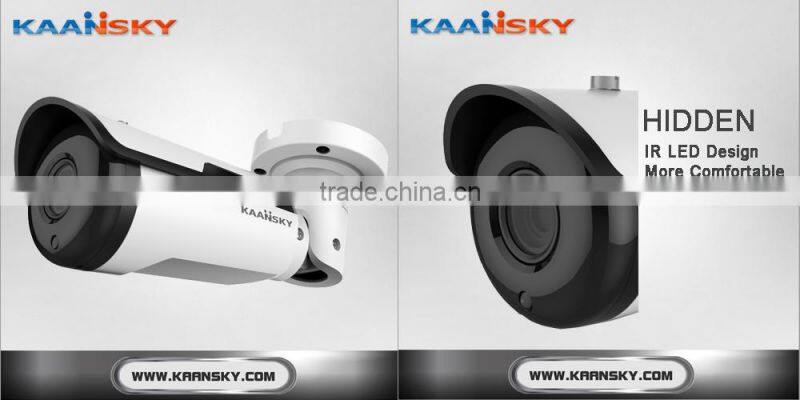

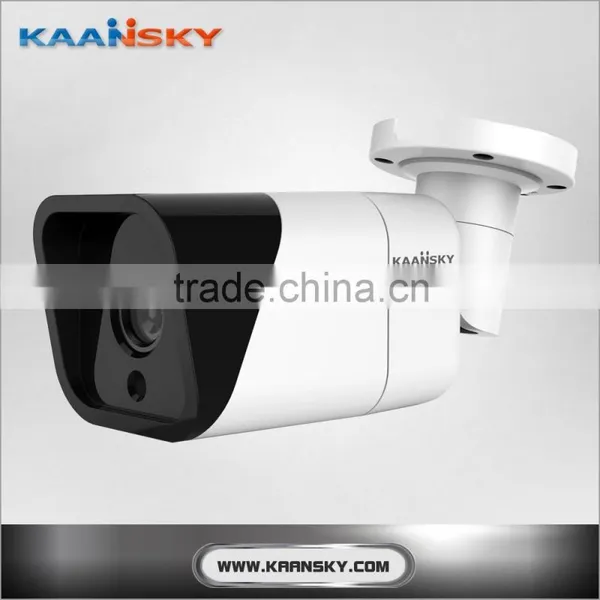

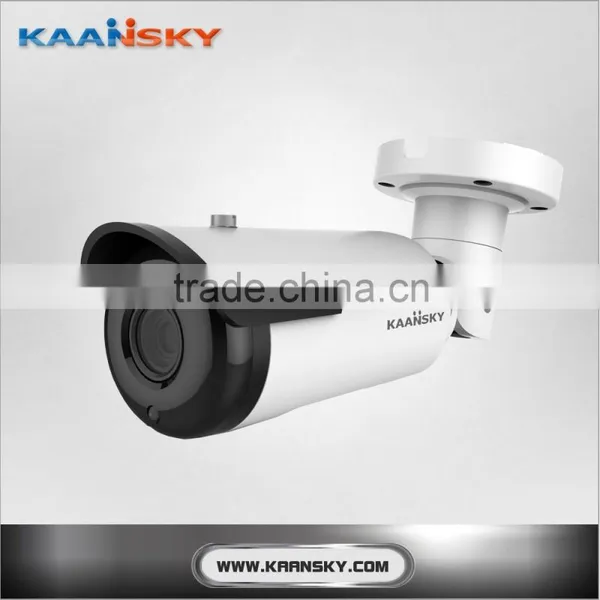

Help CenterHD Coaxial AHD Camera Bullet With Micphone 1MP HD Cctv Camera With Sound 960P hd Ahd Camera
Related Products
-
Outdoor Varifocal AHD Camera Bullet 1MP and 1.3MP Real Time 2.8-12mm Lens by OEMNegotiableMOQ: 1 Piece -
HD 2MP AHD NEW Design Indoor and Outdoor AHD Dome CameraNegotiableMOQ: 1 Piece
-
KAANSKY Best Quality Ahd 1.3 Megapixels Camera 960p Array IR Led Security Ahd Camera SystemNegotiableMOQ: 1 Piece
-
KAANSKY New Style 720p/960p/1080p Security Camera System AHD Camera for Home Use With Hidden IRUS$ 16 - 25MOQ: 1 Piece
-
KAANSKY New Product AHD Camera 1mp 1.3mp 2mp Dome Camera Accept OEM OrderUS$ 16 - 25MOQ: 1 Piece
KST-K1-AHD1301
1. 1 / 3 Megapixel sensor
2.720P/960p:1280*720/ 1280 *960 real-time image
3.IR Visible Range: 30-40m
4. user coxial cable transfer, Max 500meter.
5. Compare with HD-SDI Camera, the transfer image not via compress. real real time. but long transfer distance.
6. Compare with IP camera, the image is not compress, real real time. use coaxial cable transfer. easy install.
| Model | K1-AHD1001 | K1-AHD1301 |
| Image Sensor | 1/4"CMOS 1.0 Megapixel | 1/3"CMOS 1.3 Megapixel |
| Effective Pixels | 1280(H)×720(V) | 1280(H)×960(V) |
| Video Frame Rate | PAL: 25fps/720P NTSC: 30fps/720P |
PAL: 25fps/960P NTSC: 30fps/960P |
| Electronic Shutter | Auto: PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec | |
| Synchronization | Internal | |
| Mini. Illumination | 0.001Lux/F1.2(AGC ON), 0Lux IR on | |
| Video Output | 1-channel BNC HDAHD high definition video output | |
| Max. IR LEDs Length | 20-30M, Smart IR | |
| IR LEDs | 2PCS IR ARRARY | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Noise Reduction | 2D | |
| Lens | 2.8-12MM | |
| General | ||
| Transmission Distance | Over 500m via 75-3 coaxial cable | |
| Power Supply | DC12V±10% | |
| Ingress Protection | IP66 | |
| Power Consumption | Max 4W | |
| Working Environment | -30°C~+60°C / Less than 95%RH | |

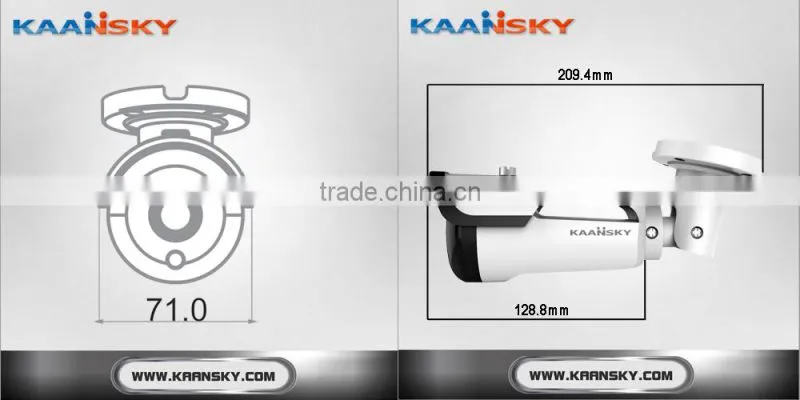

| Dimensions(W×D×H) | 158X115X95mm | |
| Weight | 0.6kg | |

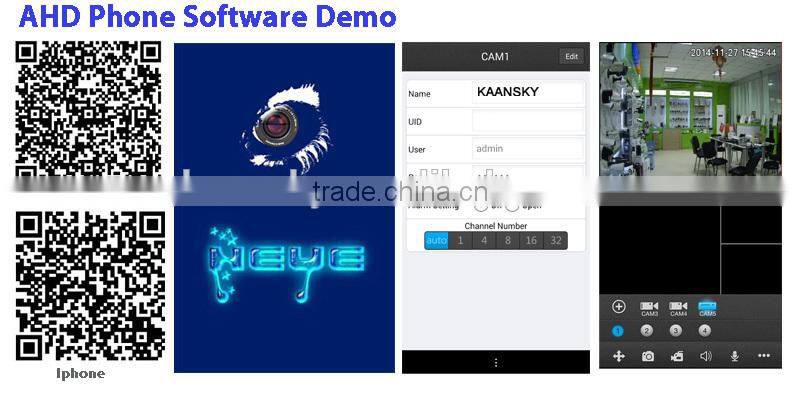

AHD Phone Demo view
Certifications

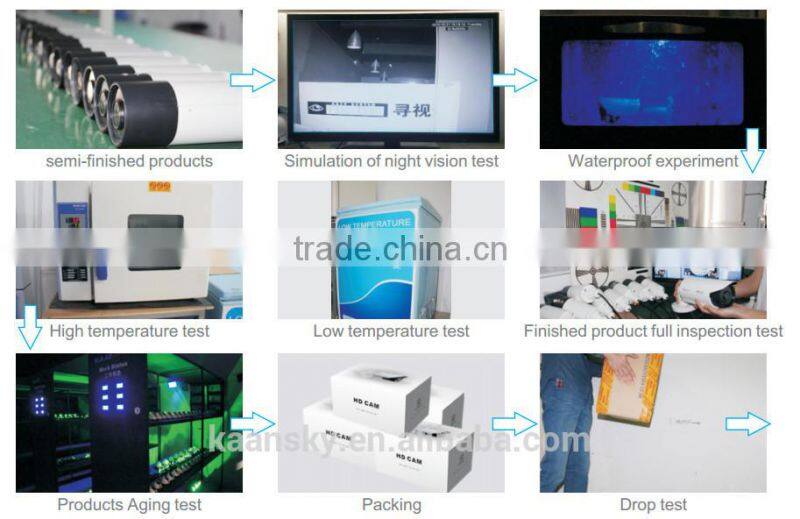

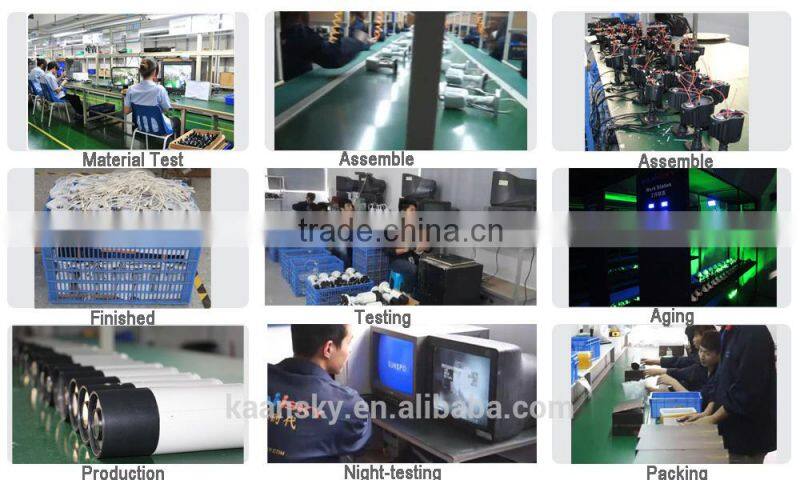

Factory information
Trade Show
More information you will interested :
Q:How can we get samples from you?
A:Clients select the interested items, including product name and quantity
B: We need your address for checking air shipping cost.
C: We make Sample PI for you
D: You make the transfer
E: Samples will be sent out once we get the transfer, and we'll provide the UPS Tracking number.
Q: How many days do we need to wait for the samples?
A: If for our brand products, we can ship them out with 5 working days. If for OEM samples, 1 week is required to prepare samples.
Q: What’s the MOQ?
A: Depends on what products that you need, if go with our brands, the MOQ is 100.
B: As for OEM, it depends on the carton,the label,the logo. the MOQ is 5,00pcs.
Q: Can we be your distributor? What’s the requirement of being distributors?
A: Welcome to being distributor, we’d like to invite partners to be our distributors and enjoy our brand reputation. We have a small request, pls send us email, we’ll call you or email you right away.
Q: What’s the delivery date?
A: If for our brand products, we’ll ship the goods within 3-5 working days. If for OEM products, it’s about 10-15days, depends on the quality packaging.
Q: What’s your payment terms?
A: For those lower than USD15,000/order, need to pay 100% once confirming the order. For above amount, 40% deposit, and the balance before delivery date. And we accept LC also.
Q: How can we pay you?
A: We accept Western Union, TT and LC, you can select which type is most suitable for you.
