KAANSKY Best quality ahd 1.3 megapixels camera 960p Array IR led security ahd camera system
Specifications:
1.IR Distance 20-30M
2.Adopting or 3pcs HLED
3.IP66, outdoor installation
4.Lens: 3.6mm lens

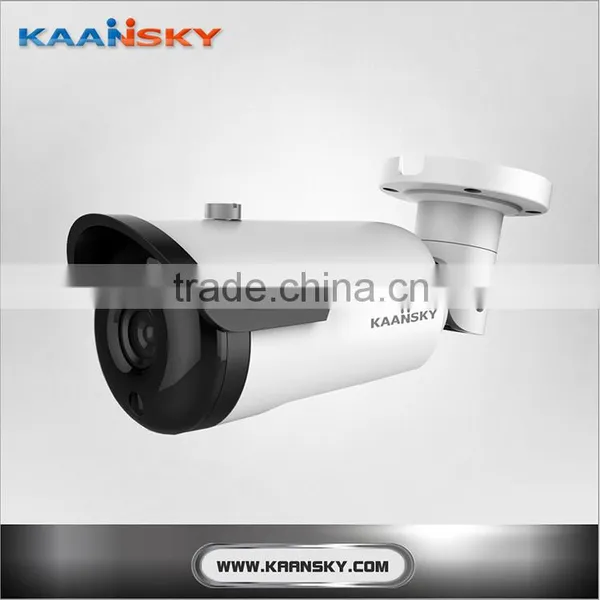

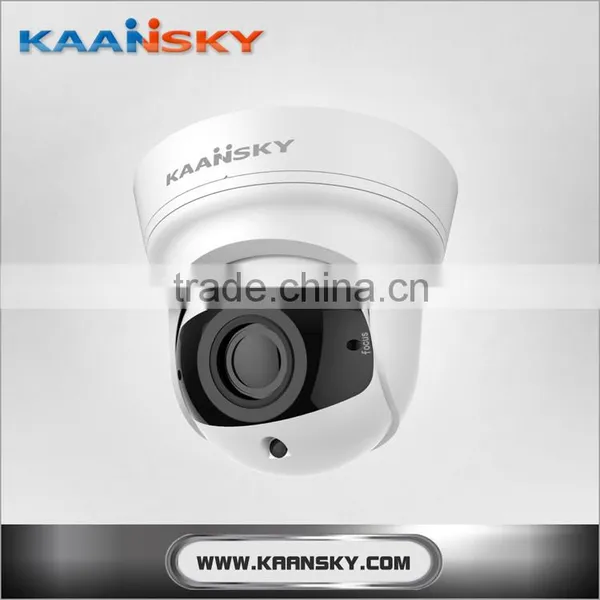

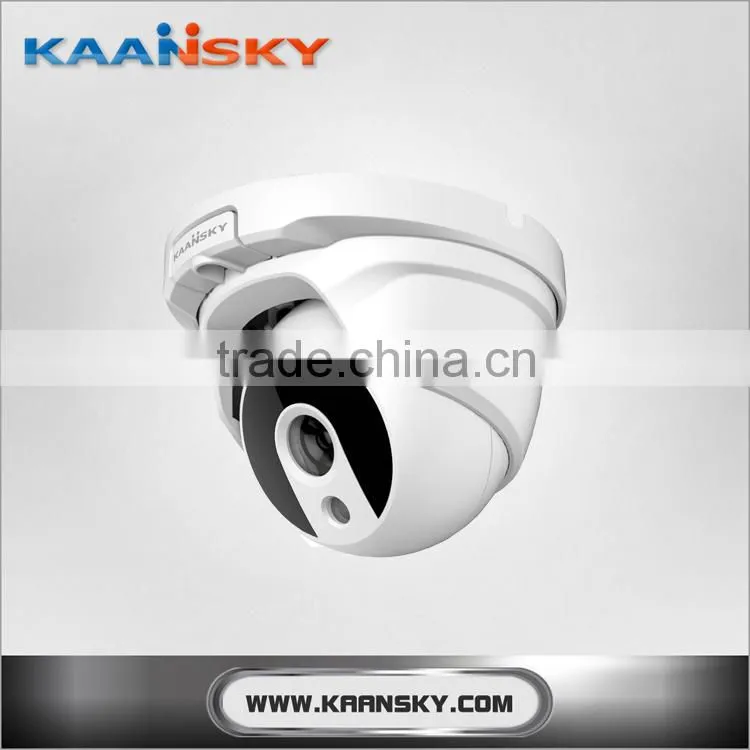

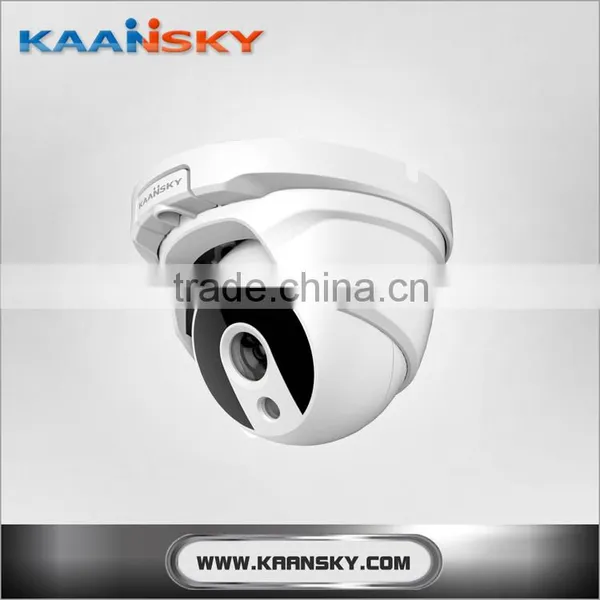

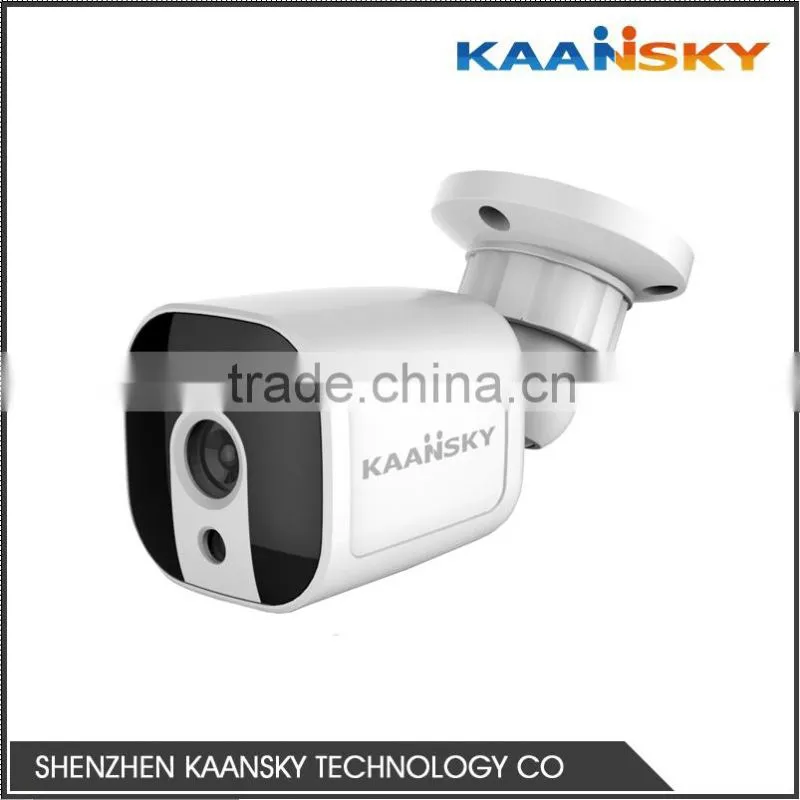

Pictures:
Remark:
1.Print packing box according to your requirements!
2.Your logo & model No. &series No. can be put on the camera and packing!
Products information:
| Model | K8-AHD1002 | K8-AHD1301 | K8-AHD2001 |
| Image Sensor | 1/4"CMOS 1.0 Megapixel | 1/3"CMOS 1.3 Megapixel | 1/3"CMOS 2.0 Megapixel |
| Effective Pixels | 1280(H)×720(V) | 1280(H)×960(V) | 1280(H)×1080(V) |
| Video Frame Rate |
PAL: 25fps/720P NTSC: 30fps/720P |
PAL: 25fps/960P NTSC: 30fps/960P |
PAL: 25fps/1080P NTSC: 30fps/1080P |
| Electronic Shutter | Auto: PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec | ||
| Synchronization | Internal | ||
| Mini. Illumination | 0.001Lux/F1.2(AGC ON), 0Lux IR on | ||
| Video Output | 1-channel BNC HDAHD high definition video output | ||
| Max. IR LEDs Length | 15-20m, Smart IR | ||
| IR LEDs | 1PCS HLED | ||
| Day/Night | Auto(ICR) / Color / B/W | ||
| Noise Reduction | 2D | ||
| Lens | 3.6MM | ||
| General | |||
| Transmission Distance | Over 500m via 75-3 coaxial cable | ||
| Power Supply | DC12V±10% | ||
| Ingress Protection | IP66 | ||
| Power Consumption | Max 4W | ||
| Working Environment | -30°C~+60°C / Less than 95%RH | ||
| Dimensions(W×D×H) | 155x155x130mm | ||
| Weight | 0.5kg | ||
Sample order and production
Sample Lead-Time |
Usually within 3-5 days |
Production Lead-Time |
Usually 12-18 days after sample is approved |
Payment and shipping
Payment Term |
We accept payment terms: T/T, Western Union and China Bank. |
Shipping: |
1) By courier air or sea or combined transportation. 2) Express: FEDEX, TNT, UPS, DHL, EMS |
Our advantage
Competitive price |
Quick professional response and quotation |
Unique designs are available, which the market does not have. |
Available in colors to suit your logos |
OEM & ODM design are welcome |
More than 6 years experience in this field |
| Model | K4-AHD1002 | K4-AHD1301 | K4-AHD2001 |
| Image Sensor | 1/4"CMOS 1.0 Megapixel | 1/3"CMOS 1.3 Megapixel | 1/3"CMOS 2 Megapixel |
| Resolution | 1280(H)×720(V) | 1280(H)×960(V) | 1920(H)×1080(V) |
| Video Frame Rate | PAL: 25fps/720P NTSC: 30fps/720P |
PAL: 25fps/960P NTSC: 30fps/960P |
PAL: 25fps/1080P NTSC: 30fps/1080P |
| Electronic Shutter | Auto: PAL 1/50-1/100, 000Sec;NTSC 1/60-1/100, 000Sec | ||
| Synchronization | Internal | ||
| Mini. Illumination | 0.001Lux/F1.2(AGC ON), 0Lux IR on | ||
| Video Output | 1-channel BNC HD AHD high definition video output | ||
| OSD | Y | ||
| WDR | D-WDR | ||
| Max. IR Length | 20-25m, Smart IR | ||
| IR LEDs | 30PCS IR Led | ||
| Day/Night | Auto(ICR) / Color / B/W | ||
| Noise Reduction | 2D | ||
| Lens | 3.6mm | ||
| General | |||
| Transmission Distance | Over 500m via 75-3 coaxial cable | ||
| Power Supply | DC12V±10% | ||
| Ingress Protection | IP66 | ||
| Power Consumption | Max 4W | ||
| Working Environment | -30°C~+60°C / Less than 95%RH | ||
| Dimensions | 125x123x102mm | ||
| Weight | 0.7kg | ||
Certification
Our Services:
1.Warranty:
All our products are in 2 years warranty.
2.OEM & ODM :
30pcs free to print logo, 500pcs free to design color box.
3.Fast delivery:
Sample 3-5 days.7-15days for large order after get payment.
4.Shipping:
We have good cooperation with DHL,TNT,UPS,FEDEX,EMS.
5.Golden Reply:
Any of your inquire and problem, will be replied within 24 hours.
Shenzhen KAANSKY Technology Co., Ltd.
Why choose KAANSKY:
Professional manufacturer
Shenzhen Kaansky Technology Co.,Ltd is a professional manufacturer of CCTV camera.
Certificates:
The factory runs strictly according to ISO9001 and most products have got CE, FCC, CCC, ROHS, and IP66.
Warranty
We provide 2 years warranty for all of our products.
CCTV Camera manufacturer KAANSKY
Test Flow
KAANSKY on the CCTV Camera Trade show
More information you may be interested in:
Q:How can we get samples from you?
A:Clients select the interested items, including product name and quantity
B: We need your address for checking air shipping cost.
C: We make Sample PI for you
D: You make the transfer
E: Samples will be sent out once we get the transfer, and we'll provide the UPS Tracking number.
Q: What’s the delivery date?
A: If for our brand products, we’ll ship the goods within 3-5 working days. If for OEM products, it’s about 10-15days, depends on the quality packaging.
Q: How can we pay you?
A: We accept Western Union and T/T,you can select which type is most suitable for you.
Contact way:
Skype: kaansky_mae
WhatsApp: +86 13825223685
