Help CenterFOTON DAIMLER AUMAN ETX 6*4 Dump Truck for Sale
Related Products
-
Dump Truck and Tipper TrailerNegotiableMOQ: 1 Set -
Urban Green Muck Truck,city Tipper Truck for SaleNegotiableMOQ: 1 Set
-
FOTON DAIMLER AUMAN ETX 6*4 Euro 3 Emission Standard Dump Truck for SaleNegotiableMOQ: 1 Set
-
FOTON DAIMLER AUMAN Chassis Dump Truck/Tipper Truck for SaleNegotiableMOQ: 1 Set
-
RHD(Right Hand Drive) 4X2 SINOTRUK SWZ(GOLDEN PRINCE) 266HP 15 Ton Dump TruckUS$ 35,500 - 39,500MOQ: 1 Set

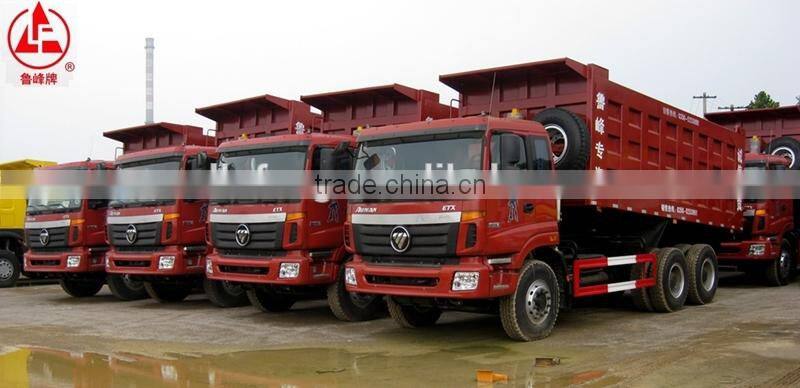

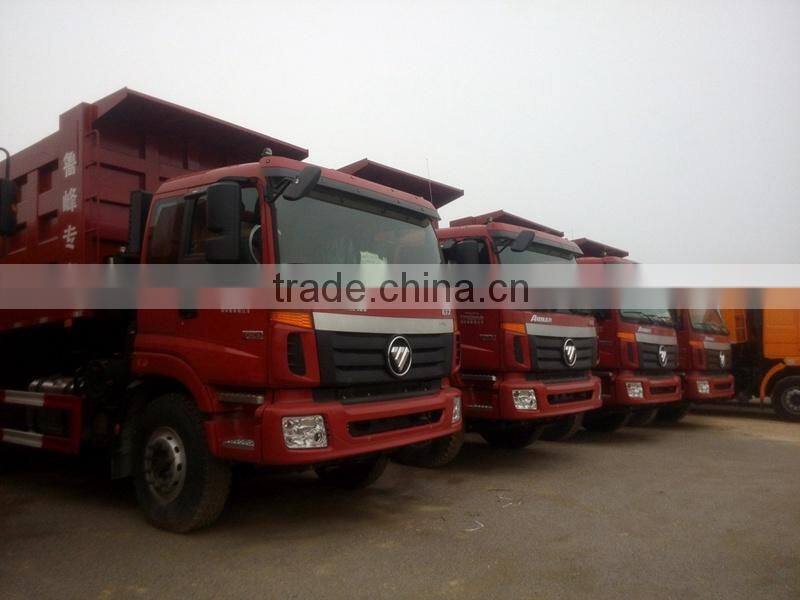

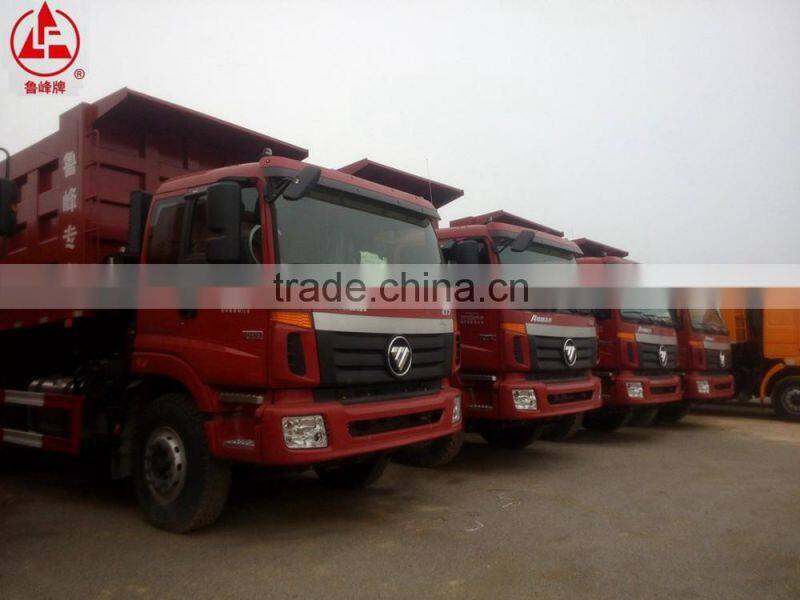

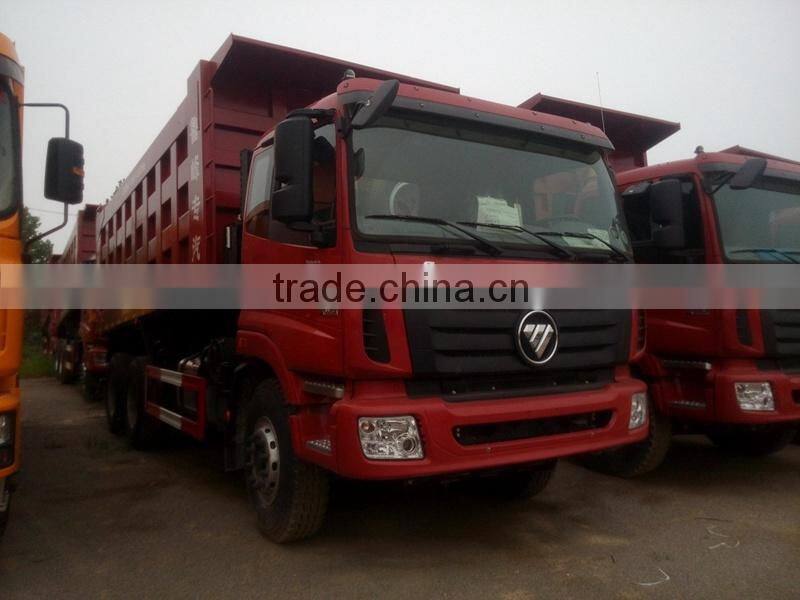

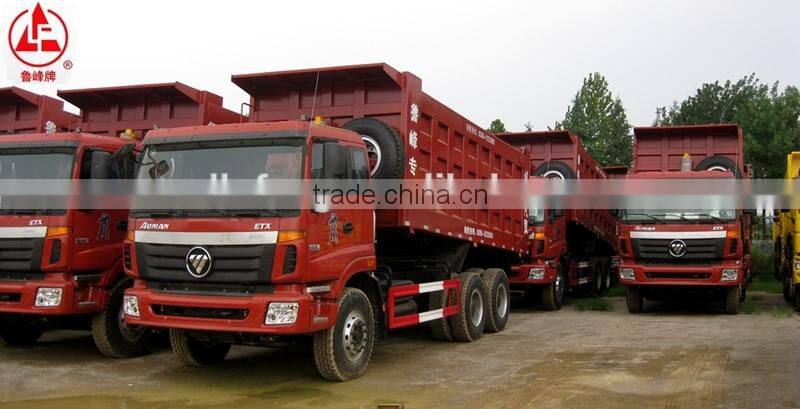

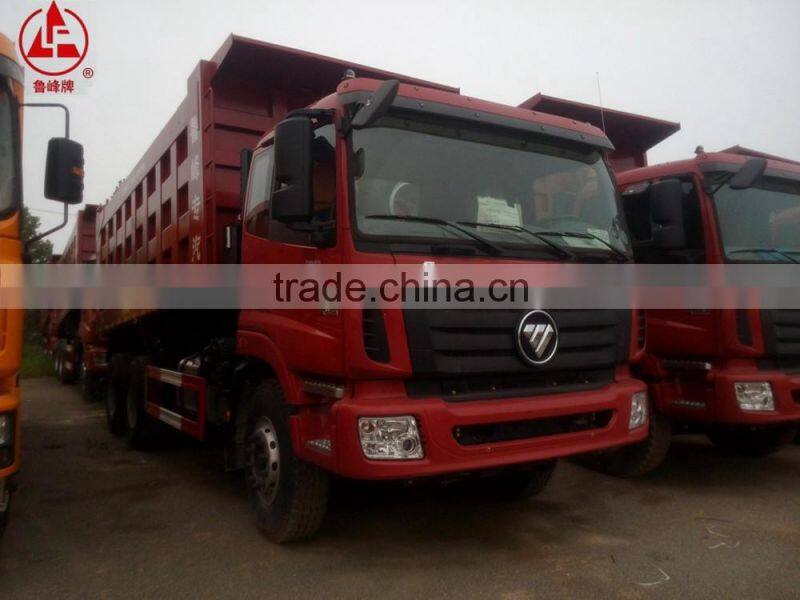

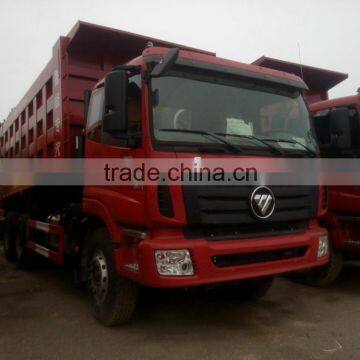

FOTON AUMAN ETX 6×4 Dump Truck
MAIN DESCRIPTION | ||||
Overall Dimension |
8870mm*2495mm*3400mm (L*W*H) |
|||
Payload |
25 ton |
Curb Weight |
12155kg |
|
Wheel Track |
2005mm; 1865mm/1865mm |
|||
Wheelbase |
4100mm +1350mm |
|||
CHASSIS | ||||
Chassis Brand |
FOTON AUMAN,Model:BJ3258DLPKE |
|||
Driving Type |
6x4 |
|||
Cab |
ETX cabin, left hand drive, air-conditioner, one bed |
|||
Engine and Power |
Brand: WEICHAI WP10.380, diesel engine, 380HP, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 11.6L, Euro 2 emission standard. rated speed:2200RPM |
|||
Gear Box |
FAST 12JSD160T, 12 forward speeds and 2 reverse |
|||
Clutch |
Model: 430, diaphragm clutch |
|||
Rear Axle |
16T Benz , load capacity 16000kg, ratio 5.26 |
|||
Tire |
12.00R20, 13units including 1 spare tire |
|||
Oil Tank |
350L |
|||
CARGO BODY | ||||
Inside Dimension |
5800mm*2300mm*1100mm(L*W*H) |
|||
Lift Type |
T-type Ventral hydraulic cylinder |
|||
Steel sheet thickness |
Floor 8mm, front, side wall 6mm,and back wall 4mm |
|||
Tailgate |
One-piece tailgate with upper articulation, safety lock system |
|||

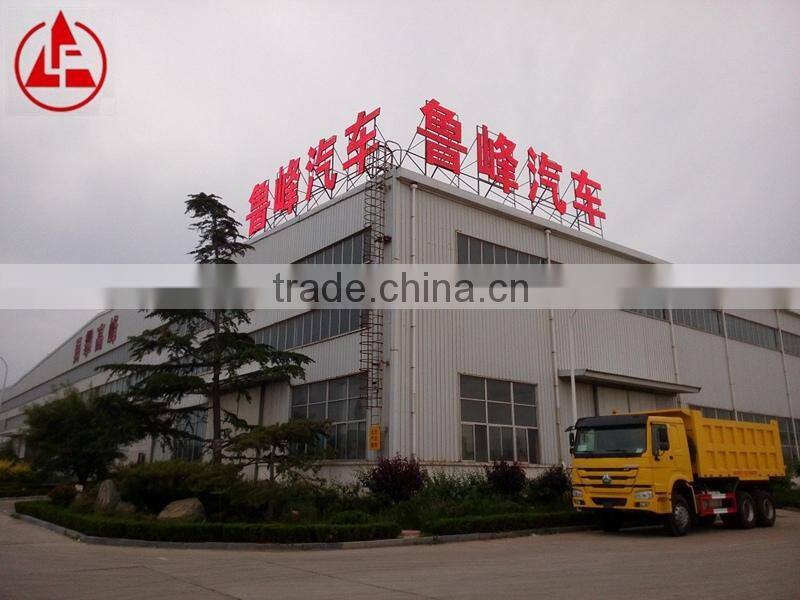

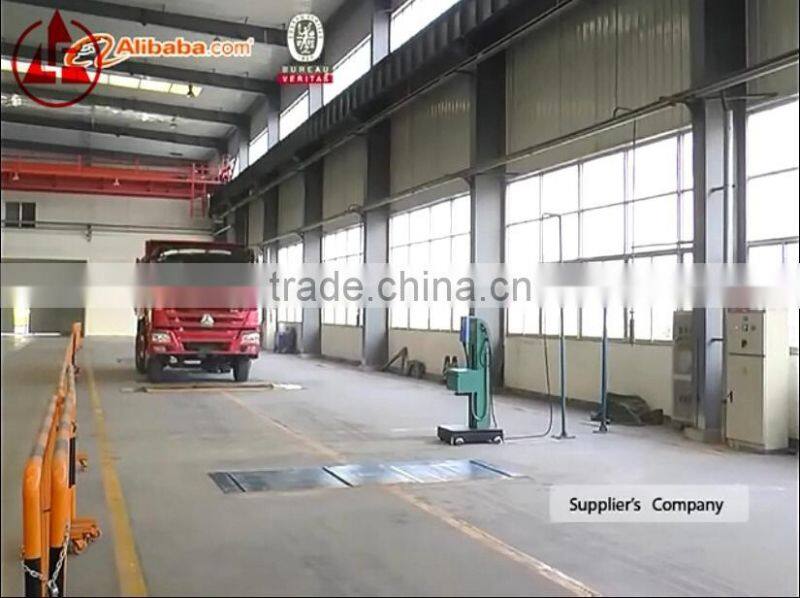

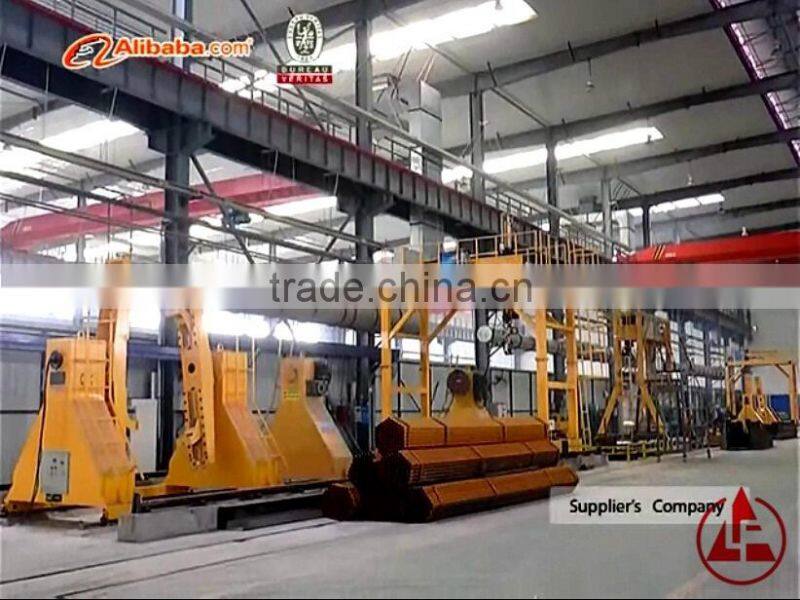

Shandong Lufeng Special-Purpose Vehicle Co.,Ltdis a group company with over 40 years history on automobile manufacturing. Our company main products consist of LUFENG brand semi-trailer, dump truck, concrete mixer truck, tow truck and other special vehicles. The annual output capacity has reached 10000 units. Our company develop ourselves in providing special vehicles for global market. Lufeng group has two subsidiaries:
Tai’an Tongyuan Machinery Co.,Ltd & Shanghai Luqing International Trade Co.,Ltd.
Tai’an Tongyuan Machinery Co.,Ltd is a professional manufacturer of high quality tow trucks, and tow truck capacity is from 3 ton to 60 ton.
Shanghai Luqing International Trade Co.,Ltd founded in Shanghai Free Trade Zone by Lufeng Group. We engaged in import and export of vehicles, equipments and machineries. With particular location and policies advantages of Shanghai free trade zone, the products have been exporting to majority countries of the world.
Production Flow:
Loading Port: QINGDAO,TIANJIN,SHANGHAI or other ports at China
Payment term: by T/T,30% advanced payment, and balance before shipment by T/T ;
by L/C,50% deposit by T/T, and 50% by irrevocable L/C at sight
Delivery time: The goods shall be prepared for shipment within seven days after receiving balance payment by T/T
Min. order quantity: 1 set
Supply ability: 200 sets/month
