RHD(Right Hand Drive) 4X2 SINOTRUK SWZ(GOLDEN PRINCE) 266HP 15 Ton Dump Truck
Speifcation:
MAIN DESCRIPTION | ||||
Overall Dimension |
7500mm*2490mm*3250mm(L*W*H) |
|||
Rated Payload |
15000 kg |
Curb Weight |
7950kg |
|
Front Overhang |
1320mm |
Rear Overhang |
1880mm |
|
Wheelbase |
4300mm |
|||
CHASSIS | ||||
Chassis Brand |
SINOTRUK SWZ ZZ3161M4311C1 |
|||
Driving Type |
4x2 |
|||
Cab |
L2000, Right hand drive, air-conditioner, one bed |
|||
Engine and Power |
Brand: SINOTRUK, Model:WD615.92, diesel engine, 266hp (196kw), 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, Euro II emission standard |
|||
Steering |
D39, hydraulic steering with power assistance |
|||
Transmission |
HW15710, 10 forward speeds and 2 reverse |
|||
Clutch |
Model: 420, Single plate dry clutch |
|||
Front Axle |
HF7, load capacity 7 ton, drum brake |
|||
Rear Axle |
HC16 axle, load capacity 16000kg. |
|||
Tire |
11.00-20, 7 units including 1 spare tire |
|||
CARGO BODY | ||||
Inside Dimension |
5000mm*2300mm*1000mm(L*W*H) |
|||
Lift system |
Ventral F-type lifting |
|||
Steel sheet thickness |
Bottom floor 6mm, side wall 4mm |
|||
Tailgate |
One-piece tailgate with upper articulation, safety lock system |
|||

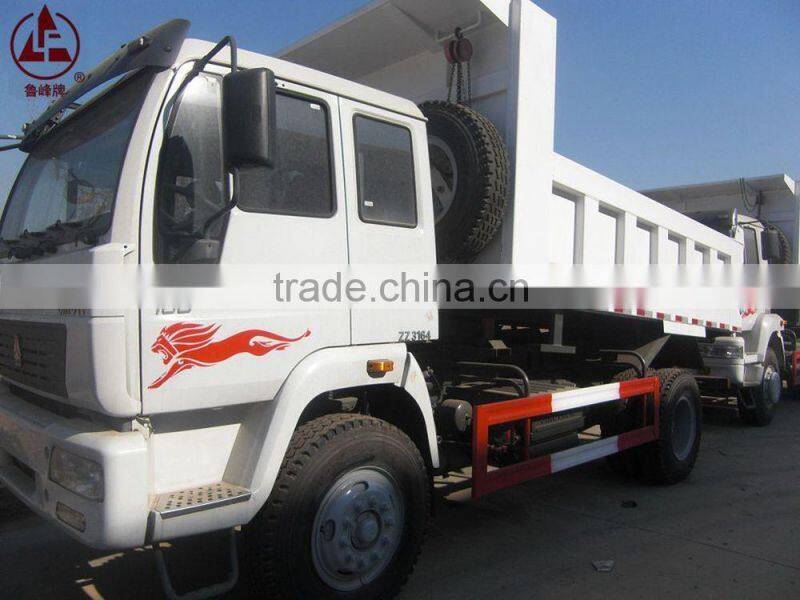

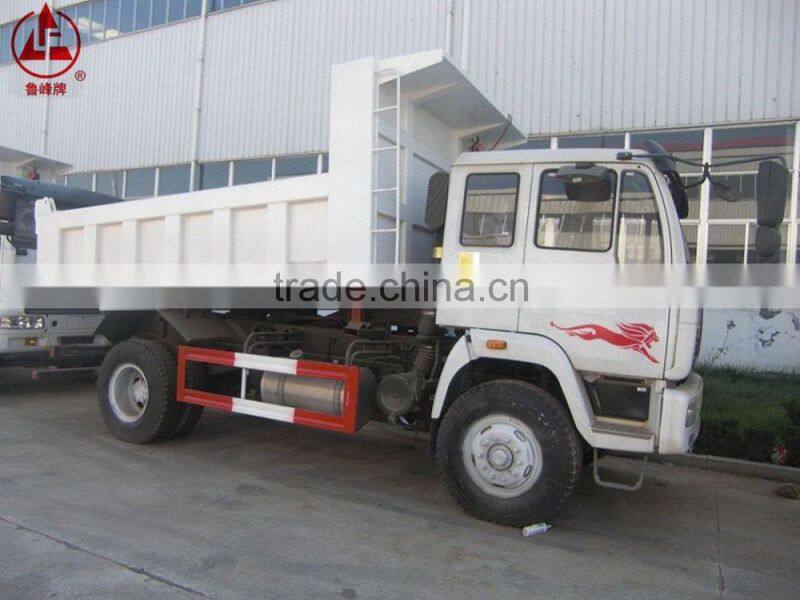

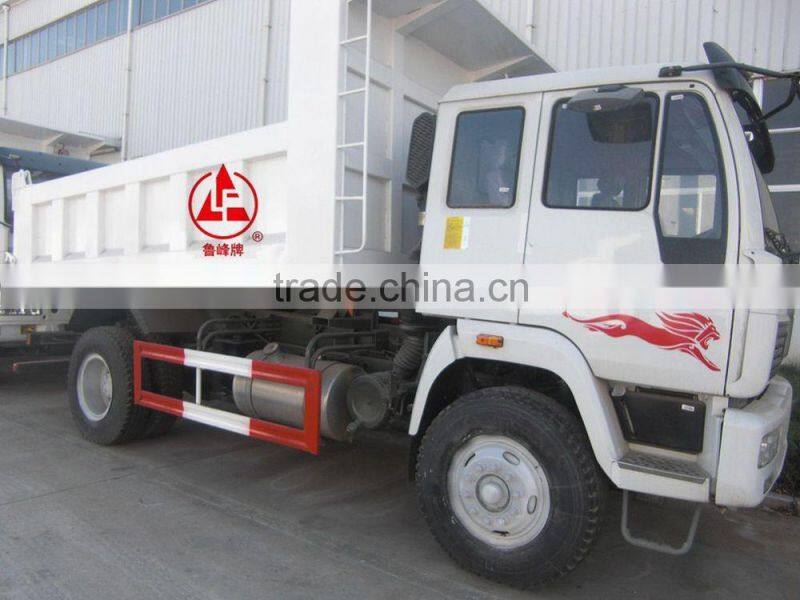

Pictures:
Shandong Lufeng Special-Purpose Vehicle Co.,Ltdis a group company with over 40 years history on automobile manufacturing. Our company main products consist of LUFENG brand semi-trailer, dump truck, concrete mixer truck, tow truck and other special vehicles. The annual output capacity has reached 10000 units. Our company develop ourselves in providing special vehicles for global market. Lufeng group has two subsidiaries:
Tai’an Tongyuan Machinery Co.,Ltd & Shanghai Luqing International Trade Co.,Ltd.
Tai’an Tongyuan Machinery Co.,Ltd is a professional manufacturer of high quality tow trucks, and tow truck capacity is from 3 ton to 60 ton.
Shanghai Luqing International Trade Co.,Ltd founded in Shanghai Free Trade Zone by Lufeng Group. We engaged in import and export of vehicles, equipments and machineries. With particular location and policies advantages of Shanghai free trade zone, the products have been exporting to majority countries of the world.
Loading Port: QINGDAO,TIANJIN,SHANGHAI or other ports at China
Payment term: by T/T,30% advanced payment, and balance before shipment by T/T ;
by L/C,50% deposit by T/T, and 50% by irrevocable L/C at sight
Delivery time: The goods shall be prepared for shipment within seven days after receiving balance payment by T/T
Min. order quantity: 1 set
Supply ability: 200 sets/month
