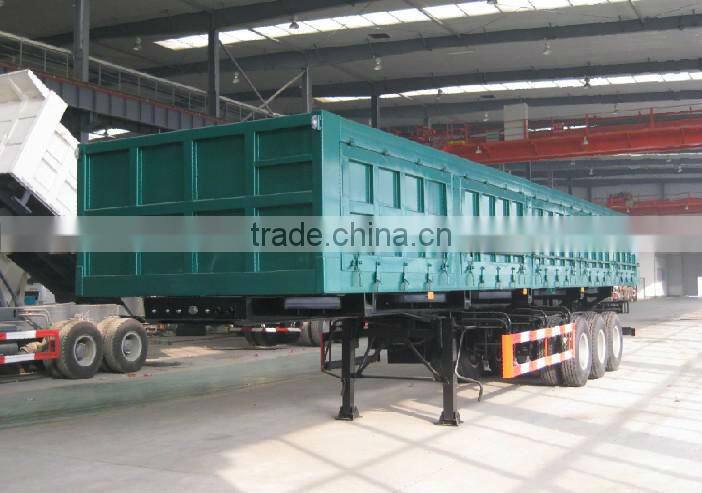

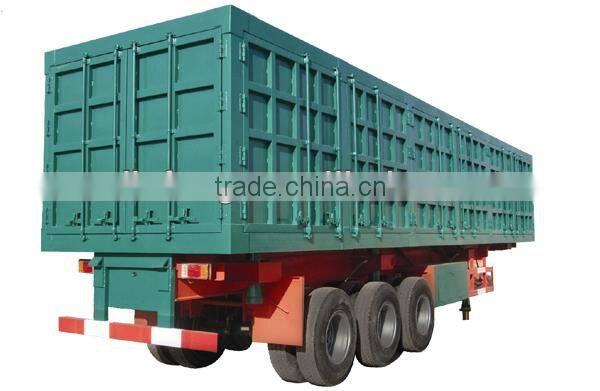

3 Axles 45ton Side Dump Semi-trailer ST9402C

Name: 3 Axles 45ton Side Dump Semi-trailer ST9402C
Brand: LUFENG
SKU: 122022365
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, ccc,iso

Shandong Lufeng Special-Purpose Vehicle Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, ccc,iso

Size 12500mmx2500mmx3490mm

Max Payload 45000kg

Place of Origin Shandong, China

Brand Name LUFENG

Model Number ST9402C

Main Description
Overall Dimension	12500mmx2500mmx3490mm
Box Body Dimension	12300mmx2280mmx1700mm
Curb Weight	11200kg
Pay Load	45000kg
Box Body	Floor steel sheet 4mm, side wall steel sheet 3mm
Front Overhang	1460mm
Rear Overhang	1930mm
Wheel base	6500mm+1305mm+1305mm
Track	1840mm
Loading surface height	1790mm
Running Gear
Suspension	Three axle leaf spring suspension with equalizer beam
Hubs	Cast steel 10 studs
Tires	12.00R20, 12units
Axles	CNHTC 13ton axle
Door	4 doors in left side and 4 doors in right side, without rear door
Brakes	Dual lines pneumatic brake system, 30/30+30 chambers, air-actuated
Under Frame
Main Beam	I shape, Mild Alloy Q345B by Automatic submerged arc welding.
Cross beam	Mild Alloy Q235
Tipper system	Left side or right side tipper, 4 lifting jacks and 1 trailer remove jack
King pin	90# (3.5'') bolted on plate
Landing Gear	Lift capacity 28Ton
Electrical & Paint
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector, 24V 7 pin plug socket
Paint	Color upon request
