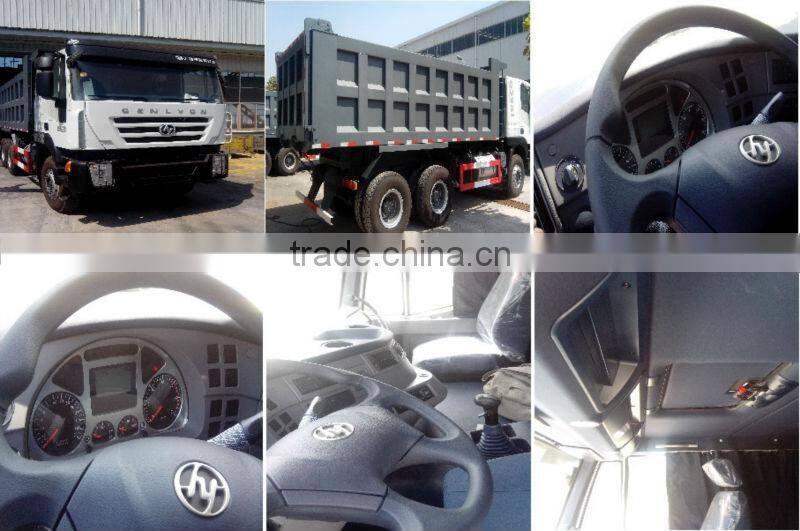

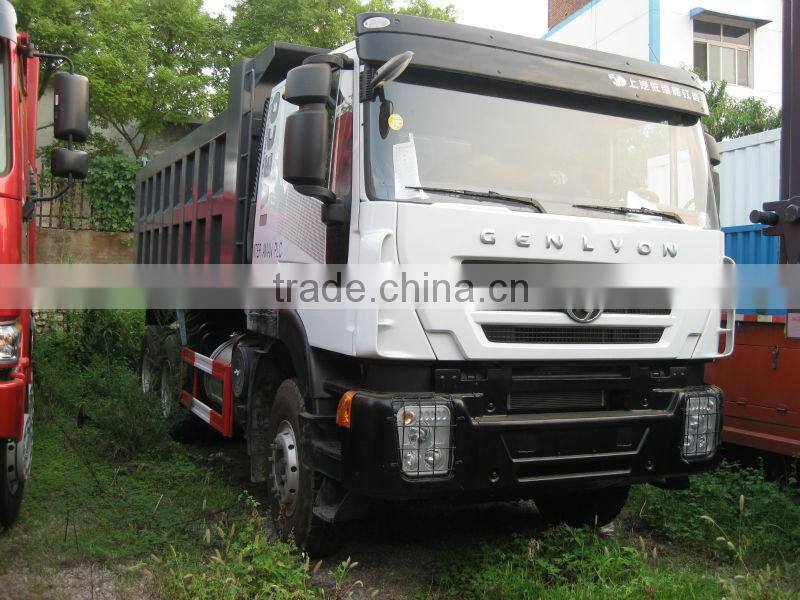

6*4 IVECO CURSOR Engine dump truck/tipper truck/dumper lorry
Truck Model |
ST3250 dump truck |
Chassis Model |
CQ3254HTG384A |
Engine Model |
F2CE0681B*B052 |
Engine Power (kw) |
280 |
Discharge type |
Diesel |
Discharge volume (ml) |
8709 |
Emission Standard |
Nation III |
Steering type |
Steering Wheel |
Outline Dimension(length*width*height)(mm) |
8375*2500*3510 |
Interior Dimension(length*width*height) |
5600*2300*1400 |
Track Front(mm) |
2006 |
Track Rear (mm) |
1850/1850 |
Wheel Base (mm) |
3775+1400 |
Axle load (kg) |
7000/18000 (biaxial) |
Axle quantity |
3 |
Tyre Specification |
12.00R20 |
Tyre quantity |
10 |
Quantity of Spring Leaves(F/R) |
9/12 |
Curb Weight (kg) |
15020 |
Gross mass (kg) |
25000 |
Payload (kg) |
12090 |
Cab Passenger |
2 |
The highest design speed (km) |
80 |
C100 cab configuration and its optionsTractor cab electric flip (the other is manual flip), air conditioning, mechanical suspension driver's seat,
• TransmissionTransmission Type: Fastre 9JS135A ;forward gears Number: 9 ;Number of reverse gears:1 ;maximum input torque: 1350N.m ;
Rated speed: 2600rpm• Drive Axle1 heavy version, standard edition overweight integral double reduction cast axle: 16T grade reinforced
SHANDONG LUFENG SPECIAL-PURPOSE VEHICLE CO.,LTD
There are more than 100 product varieties of 14 series: 9 - 60t various types of semi trailers of fences, container car, flat semitrailer, goose-neck semitrailer of low loading face, 1.5 t-50t carriage transport vechicle, 1.5 t-20t road wrecker, 4.5 t-40t auto-unloading vehicle and semitrailer, 11-50 m3 transport vehicle of particle materials, concrete agitating transport vehicle, compressed dust cart, tank car and virescence insufflation thawing car etc.
