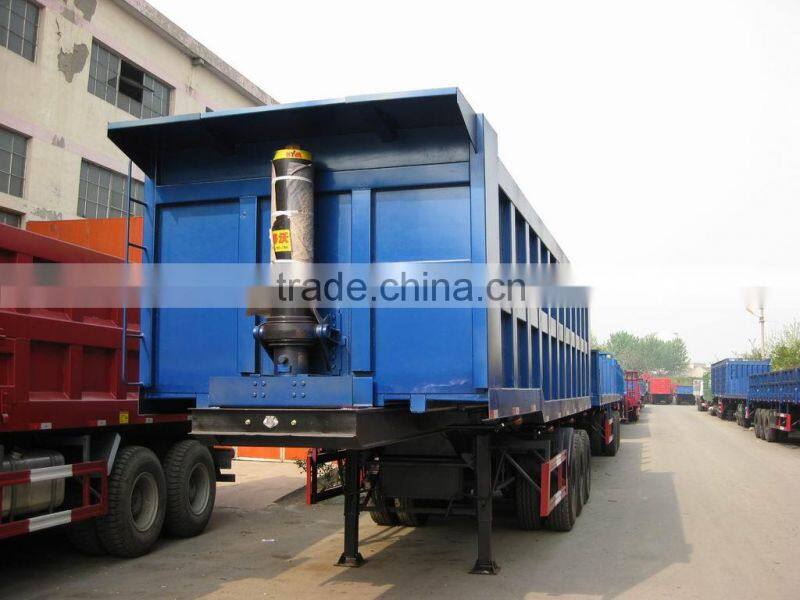

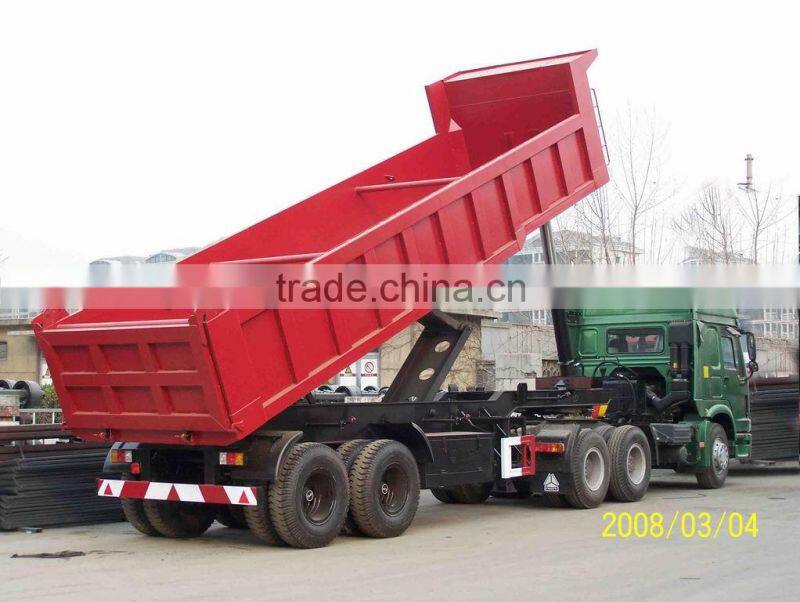

Rear Dump Semi-trailer/Tipper Semi Trailer

Name: Rear Dump Semi-trailer/Tipper Semi Trailer
Brand: LUFENG
SKU: 122022337
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Semi-Trailer

Material:

Steel

Certification:

Other, CCC,ISO

Shandong Lufeng Special-Purpose Vehicle Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO TIANJIN

Delivery Detail:

Delivery time depends on order quantity.

Type Semi-Trailer

Material Steel

Certification Other, CCC,ISO

Size 9100mmx2500mmx3750mm

Max Payload 35000

Place of Origin Shandong, China

Brand Name LUFENG

Model Number 23CBM

Product Description

Tipper Semi-trailer 23CBM

MAIN DESCRIPTION
Overall Dimension	9100mmx2500mmx3750mm
Pay Load	35 ton
King Pin Setting	1000mm
RUNNING GEAR
Suspension	Tri-axle mechanical suspension with 11-pcs leaf spring
Axle	FUWA 13on axle, 3 pcs
Tire	11.00R20, 12pcs
Brake	Dual lines pneumatic brake system, T30+T30/30 air chamber; parking brake
UNDER FRAME
Main Beam	I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
King Pin	Bolt-in kingpin, size 90#(3.5 inches)
Landing Gear	Double sides operation, Lift capacity 30Ton
CARGO BODY
Inside Dimension	8500mmx2300mmx1200mm
Steel sheet	Floor thickness 8mm, side wall thickness 6mm
Hydraulic system	Full set of HYVA hydraulic system, front setting telescopic jack
ELECTRICAL & PAINT
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 6 lines
Air/Elec. Connector	ISO standard air connector, 24V 7 pin plug socket
Paint	Color upon request
