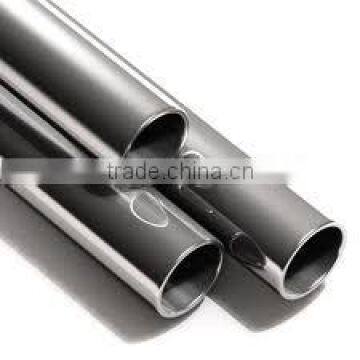

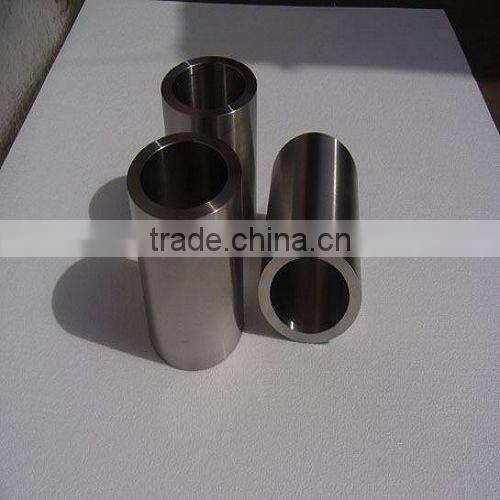

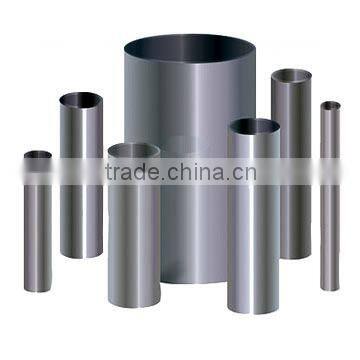

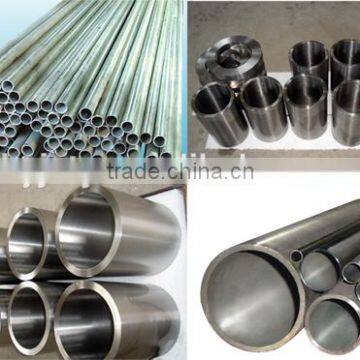

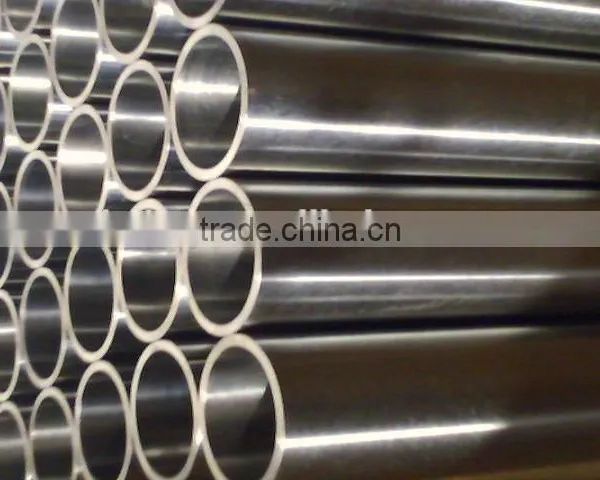

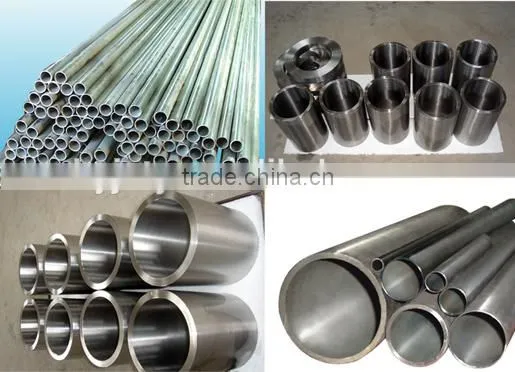

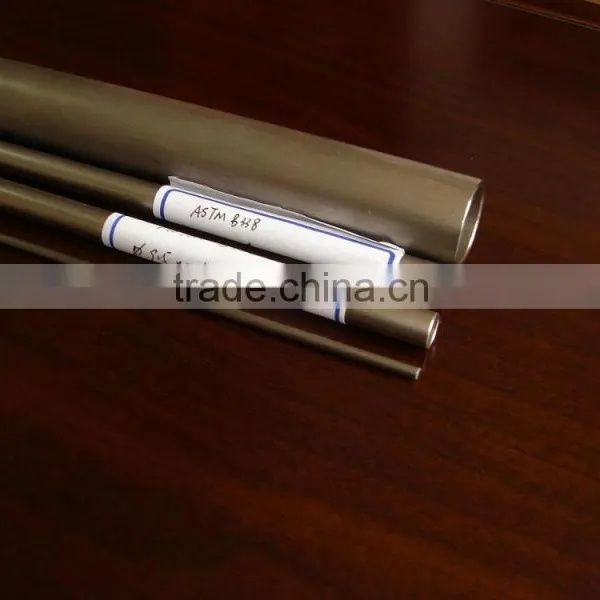

pure titanium Material and Tubes/pipes For Condensers and Heat Exchangers Application tubes/pipes and pipes and fittings
|
high quality/corrosion resistant Seamless/Welded Titanium and Titanium Alloy Tubes & Pipes | |
| Specification | ASTM B337, ASME SB338, ASTM B338, ASTM B861, ASTM B862 |
| Material Grade | Gr1, Gr2, Gr5, Gr7, Gr9, Gr11, Gr12 etc. |
| Dimension Range | OD 3.0-114.0mm, WT 0.2-10.0mm, L18000mm |
| Application | Heat exchanger, cooling tower, aviation, medical, industry etc. |
| Grade | Condition |
Outside Diameter (mm) |
Thickness (mm) |
Standard | |||||||||||||||
| 0.2 | 0.3 | 0.5 | 0.6 | 0.8 | 1.0 | 1.25 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 10.0 | ||||
|
Gr1 Gr2 Gr5 Gr7 Gr9 Gr11 Gr12 |
R M Y |
3~5 | √ | √ | √ | √ |
ASTM B337 ASTM B338 ASTM B861 ASTM B862 |
||||||||||||
| >5~10 | √ | √ | √ | √ | √ | √ | |||||||||||||
| >10~15 | √ | √ | √ | √ | √ | √ | √ | ||||||||||||
| >15~20 | √ | √ | √ | √ | √ | √ | √ | ||||||||||||
| >20~30 | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||
| >30~40 | √ | √ | √ | √ | √ | √ | √ | ||||||||||||
| >40~50 | √ | √ | √ | √ | √ | √ | √ | ||||||||||||
| >50~60 | √ | √ | √ | √ | √ | √ | √ | √ | |||||||||||
| >60~80 | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||||||||
| >80~114 | √ | √ | √ | √ | √ | √ | √ | ||||||||||||
1. Chemical requirements
Grade |
N |
C |
H |
Fe |
O |
Ti |
Gr1 |
0.03 |
0.08 |
0.015 |
0.20 |
0.18 |
bal |
Gr2 |
0.03 |
0.08 |
0.015 |
0.30 |
0.25 |
bal |
2. Mechanical Properties
Grade |
Tensile strength (δ5MPa) |
Residual elongation stress (δ0.2MPa) |
Elongation δ (%) |
Gr1 |
370-530 |
250 |
20 |
Gr2 |
440-620 |
320 |
26 |
3. Allowable Deviation of Outer Diameter (mm)
Outer Diameter |
Allowable Deviation |
Outer Diameter |
Allowable Deviation |
3~10 |
±0.15 |
>50~80 |
±0.65 |
>10~30 |
±0.30 |
>80~100 |
±0.75 |
>30~50 |
±0.50 |
>100 |
±0.85 |
4. Curvature of Titanium Tube
Outer Diameter (mm) |
Curvature (mm/m, not more than) |
≤30 |
3 |
>30~110 |
4 |
Welcome to
----------------------------------
Baoji BoYang metal material Co.,LTD
The company is located in Baoji, the Titanium City of China. The company is mainly engaged in rare metals processing and machining. And it is also a special manufacturer of nonferrous material sales, products and equipment manufacturing and new products development. We have the followings as our major products and it is with the design and manufacture at the core, such as shaped pieces, titanium plate, titanium bar, titanium wire GR1 GR2 GR3 GR5 GR7 GR9. Moreover, the company has titanium material, titanium standard parts, titanium composite material and other complete product line of nonferrous metal products. The products are widely used in chemical, metallurgy, petroleum, textile, medicine, light industry, environmental protection, sports, mining, marine and other fields. Relying on the strong industry resources, powerful scientific research, the ability to manufacture and a complete industrial chain of titanium industrial manufacturing of “the Titanium City of China", we are keep improving our sales service with our honesty and sincerity, and will do so. We warmly welcome both new and old clients to visit and negotiate with us.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Baoji City, Shaanxi Province, China, about 2 hours train from Xi'an.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A:Quality is priority. Hanz people always attach great importance to quality controlling from
the very beginning to the very end.
The first is the raw materials and strict control of spindle the second production process control, the third is the inspection factory.
Why Choose US
-------------------------------------------------
1.Provide free samples.
2.Fast delivery.
3.Guarantee quality.
4.High response rates.
5.Long time maintenance service the product.
6.Terrific after-sales service :24 hours around and 12 month warranty
Wish you success in your work!
=====================================
Anya
Baoji Bo Yang Metal Materials Co., Ltd
Address: Qing Anbao Industurial Park,BaoTi Rord,Gaoxin District,Baoji City,shaanxi,China
Fax :0917-3380810
Phone :+86-133 8917 6136
Skype : ningjing177
Web:
=====================================
pure titanium Material and Tubes For Condensers and Heat Exchangers Application tubes and pipes and fittings
