SINOTRUK HOWO Chassis 7cbm Concrete Mixer Truck for Sale,310HP

Name: SINOTRUK HOWO Chassis 7cbm Concrete Mixer Truck for Sale,310HP
Brand: LUFENG,SINOTRUK HOWO
SKU: 122020753
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

LUFENG,SINOTRUK HOWO

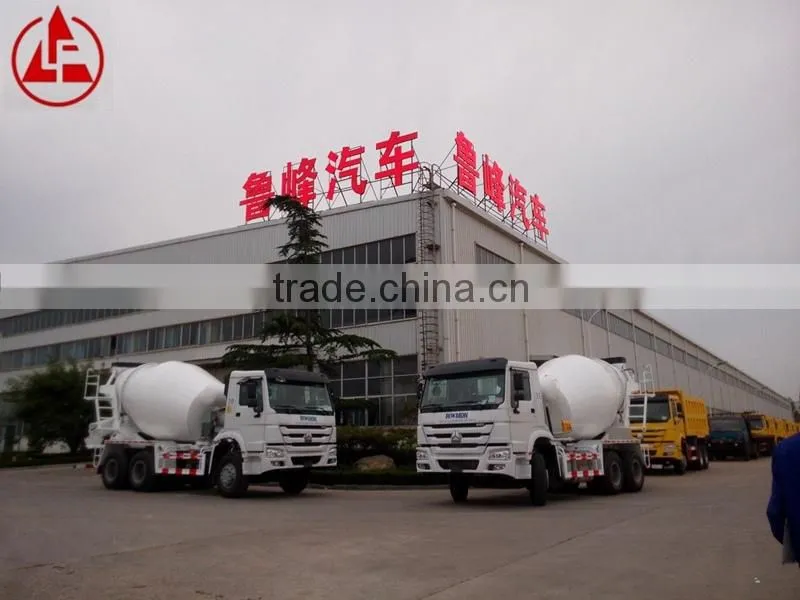

Shandong Lufeng Special-Purpose Vehicle Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO TIANJIN SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shandong, China

Brand Name LUFENG,SINOTRUK HOWO

Model Number HOWO chassis

Motor Power 290 hp

Mixing Power 290hp

Charging Capacity 2

Reclaiming capacity 3

Speed of Mixing Drum 0-14

Water Supply Mode watering

Working Cycle Period 1s

Discharge Way discharge

Outline Dimension 8810mm*2490mm*3800mm

After-sales Service Provided Overseas third-party support available

Product Description

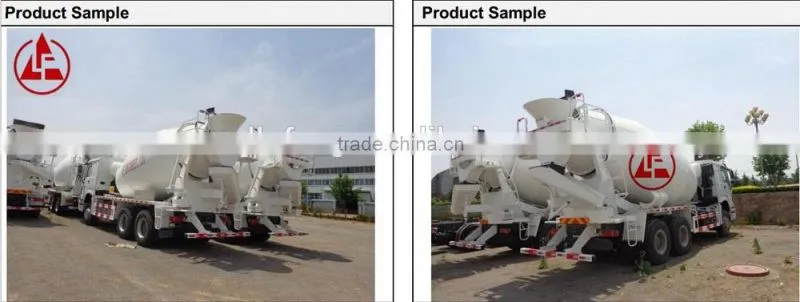

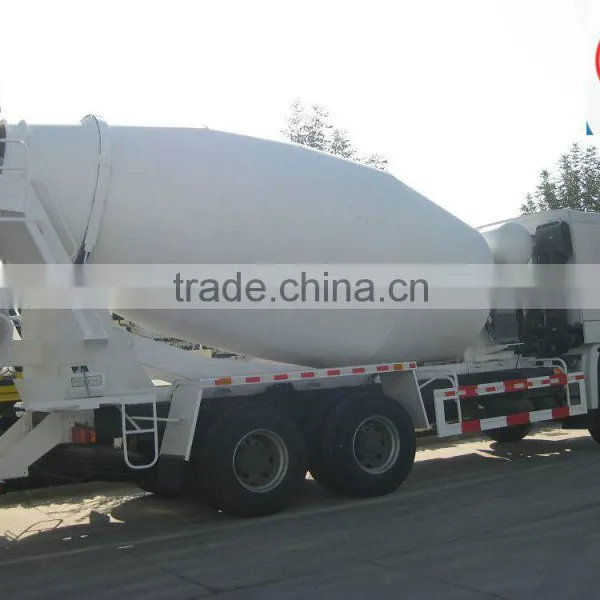

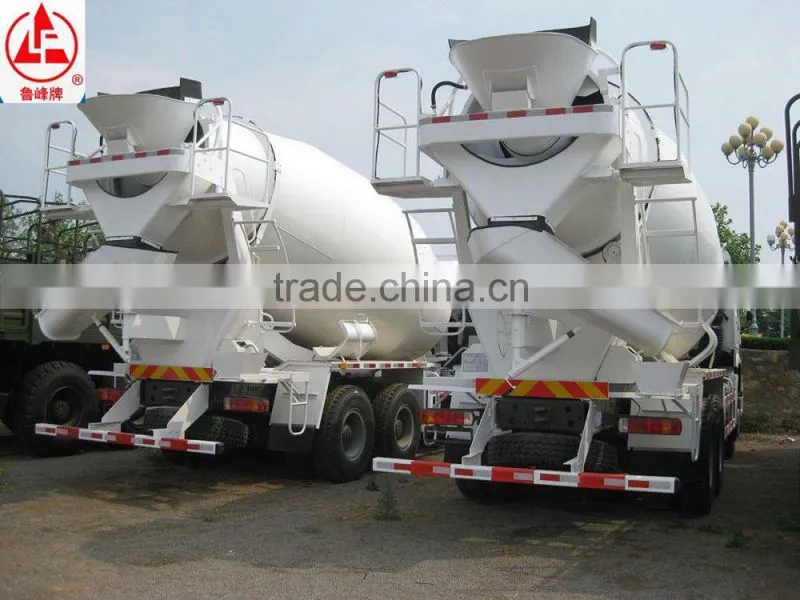

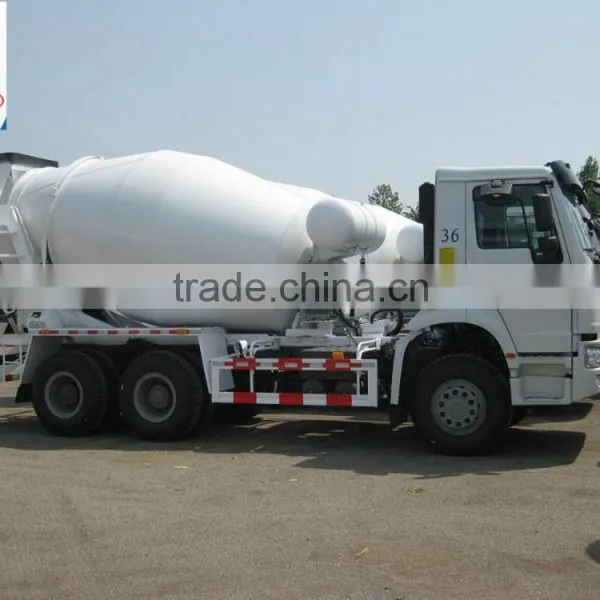

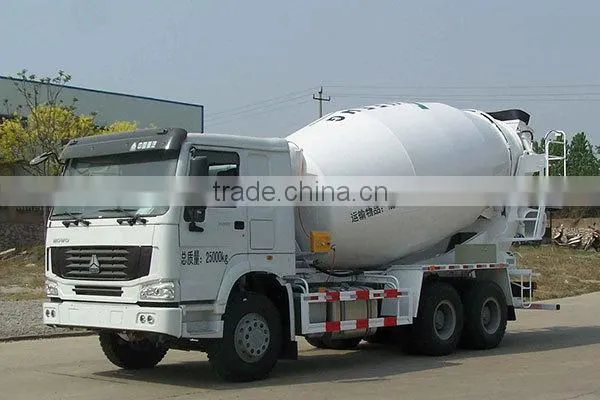

HOWO Chassis 7cbm Concrete Mixer Truck

Specification:

MAIN DESCRIPTION
Overall Dimensions	8810mm2490mm3800mm(LWH)
Tare Weight	11180kg	Payload	17500kg
Front Overhang	1500mm	Rear Overhang	2335mm
Wheelbase	3625mm+1350mm	Track (F/R)	2022mm/1830mm
CHASSIS
Chassis Brand	SINOTRUK HOWO
Chassis Model	ZZ1257M3641, driving type 6x4

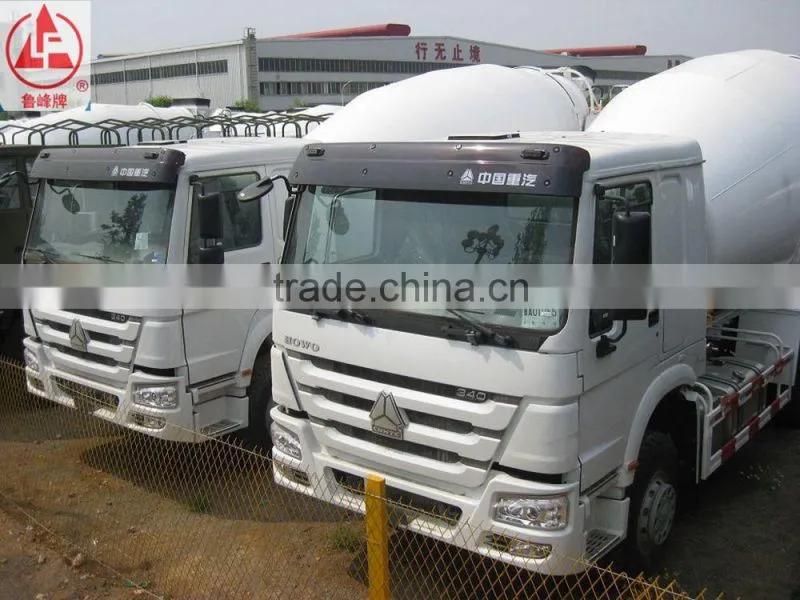

Cab	Standard HW70, left hand drive, air-conditioner, no sleeper
Engine	SINOTRUK WD615.87, 290hp, Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L
Transmission	HW15710, No. of speeds: 10 forward & 2 reverse
Steering	German ZF8098, turning system pressure 18MPa
Rear Axle	HC16 tandem axle, rated load 2x13ton, ratio 5.73
Wheels and tires	Rim 8.5-20; tire 12.00-20, 10 units; Spare wheel carrier: with one spare wheel
Brakes	Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake
MIXING SYSTEM
Mixing Volume	7cbm
Water Tank Volume	400L

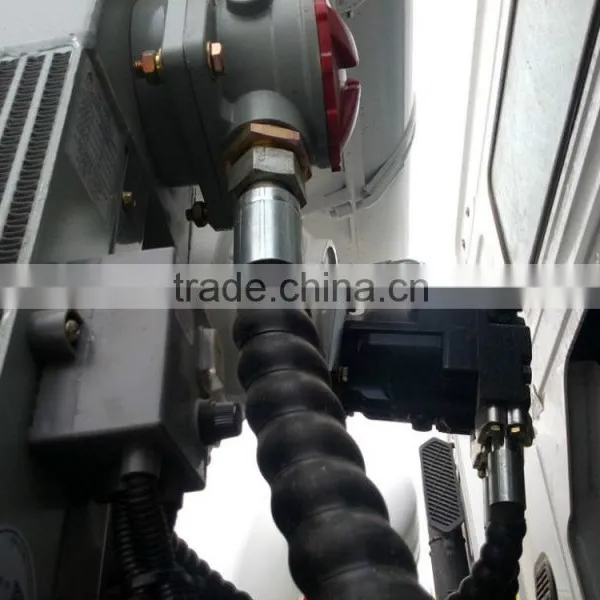

Hydraulic Pump	Brand: ARK, Italy
Motor	Brand: ARK, Italy
Speed Reducer	Brand: PMP, Italy
Mixing Drum	Body steel plate thickness 5 mm, Front end thickness 6 mm.
