HOWO Chassis 8cbm Concrete Mixer Truck

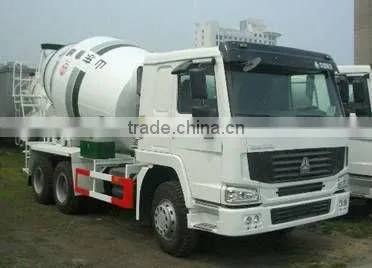

HOWO Chassis 8cbm Concrete Mixer Truck photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
SINOTRUCK,LUFENG
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name SINOTRUCK,LUFENG
Model Number HOWO Chassis 8cbm
Motor Power 290hp
Speed of Mixing Drum 0-14
Outline Dimension 8840mm*2495mm*3800mm

Specifications

HOWO Chassis 8cbm Concrete Mixer Truck
Chassis Brand:SINOTRUK HOWO
Chassis Model:ZZ1257M3641W,driving type 6x4
Mixing Volume8

HOWO Chassis 8cbm Concrete Mixer Truck



MAIN DESCRIPTION

Overall Dimensions

8840mm*2495mm*3800mm(L*W*H)

Tare Weight

11860kg

Payload

20000kg

Front Overhang

1500mm

Rear Overhang

2365mm

Wheelbase

3625mm+1350mm

Track (F/R)

2022mm/1830mm

CHASSIS

Chassis Brand

SINOTRUK HOWO

Chassis Model

ZZ1257M3641W, driving type 6x4

Cab

HW76, left hand drive, air-conditioner, one sleeper

Engine

SINOTRUK WD615.87, 290hp, Euro II emission standard, 4-stroke direct injection diesel engine, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, displacement 9.726L

Transmission

HW15710, No. of speeds: 10 forward & 2 reverse

Steering

German ZF8098, turning system pressure 18MPa

Rear Axle

HC16 tandem axle, rated load 2x13ton, ratio 5.73

Wheels and tires

Rim 8.5-20; tire 12.00-20, 10 units; Spare wheel carrier: with one spare wheel

Brakes

Service brake: Dual circuit pneumatic brake; Parking brake: Spring energy, compressed air operating on rear wheels; Auxiliary brake: Engine exhaust brake

MIXING SYSTEM

Mixing Volume

8cbm

Water Tank Volume

440L

Hydraulic Pump

Brand: ARK, Italy

Motor

Brand: ARK, Italy

Speed Reducer

Brand: TOPUNION, Italy

Mixing Drum

Body steel plate thickness 6mm, Front end thickness 8mm.



 HOWO Chassis 8cbm Concrete Mixer Truck
