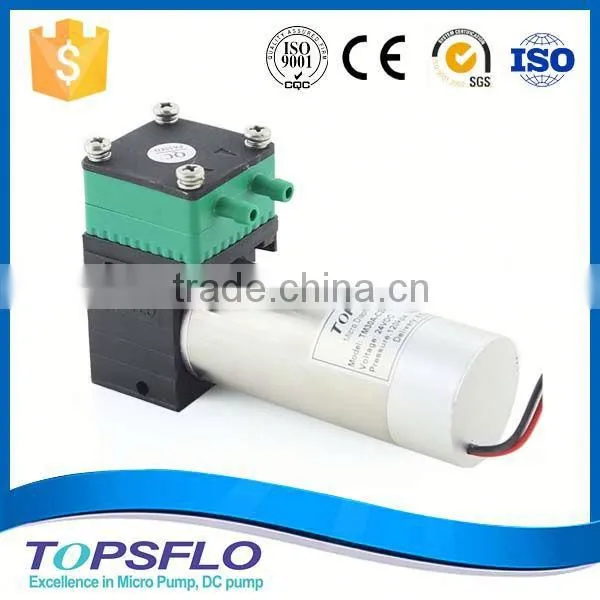

DC Brushless Diaphragm 6v 12v 24v vacuum pump for white ink ink-jet printer

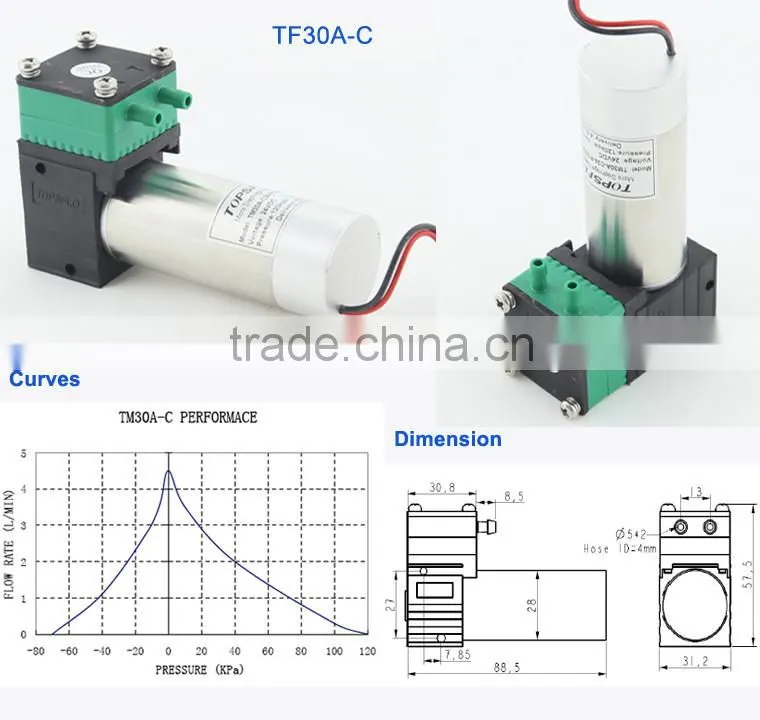

Specification
| Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Pressure | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (A) | (KPa) | (KPa) | (L/min) | |
| TM30A-C | TM30A-C12-P12004 | TM30A-C12-V7004 | 6/12/24 | 0.4/0.24/0.15 | 120 | -70 | 4.5 |
| TM30A-D | TM30A-D12-P12004 (outside controller) | TM30A-D12-V7004 ( outside controller) | 6/12/24 | 0.4/0.24/0.15 | 120 | -70 | 5 |
" P " means pressure pump, " / V " means vacuum pump, "6/12/24" means different voltages optional.
| |||||||
| Pump Weight:250g; Pump Size:80mm*30.5mm*58mm; Inlet&Outlet:OD 4.8mm/ID 2.6mm,hose suggestion:ID 4.0mm | |||||||
| Super silent noise<50dB from 1 Meter; Materials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM: Good resistance and tolerance with alcohol, acid, alkali, oxidant, ketone and fat, etc. Poor oil resistivity. | |||||||
| Motor type and code:"C":Coreless brushless DC motor with dual ball bearings (long lifetime>15,000hours) "D": Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime>15,000hours);pump with outside controller can realize functions of PWM 0~5V speed adjustment, brake, instant starting work ; inner controller is no additional functions. | |||||||
Product Features:
1. Uncontaminated flow.
2. Non-metallic construction.
3. Oil-Free, Corrosion resistant
4. DC brushless motor, Long life, High efficiency, high performance brushless motor, has over 15, 000 hours
5. Compact size, Low Weight
6. Low noise: The patient has treatments of 30 minutes, so it will bothers a lot if has big noise. So, for the pumps, the less noise, the better. Our this pump can work very quiet
7. Maintaince free.
8. High level of water tightness thanks to the closed
Diaphragm surface and special sealing system.
9. Can operate in any installed position
Can work continuously
Lifetime: The pump has over 15.000 hours
Industrial pressure and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Air Quality Sampling Monitors
Respiration Monitors
Gas or Odor Leak Detectors
air pump
Packing Detail
If you are unsure which pump is best suited to you needs, please give us some information on your intended use and the plumbing configuration, and we will be happy to advise. We aim to ensure customers get what they need, and we won't try and sell you something that is not suited to your requirements!
