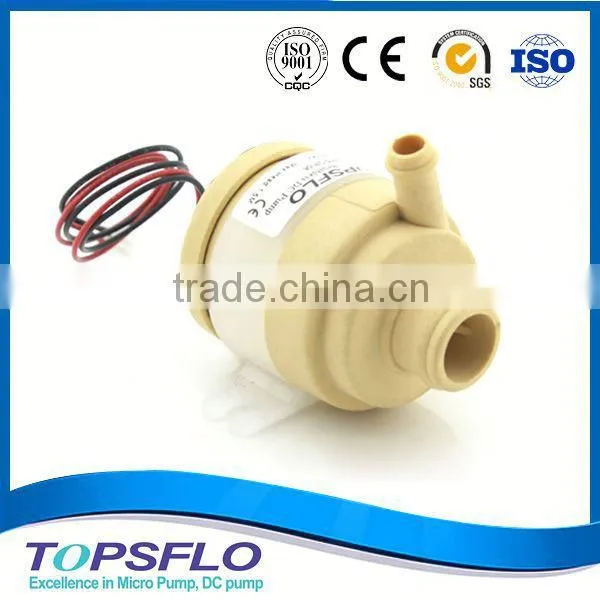

Long lifetime DC silent complete APU systems pump
- 100000 Piece / Pieces per Month
- Shanghai Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | China | Brand Name: | TOPSFLO | Model Number: | TL-A03H |
Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, DC power, Battery, Solar panel |
Pressure: | Other, 2.75L/min 1.5M | Application: | Other, Liquid transfer or circulating |
Product Description
•.Advanced magnetic driving technology for static-seal,without any leakage forever
•.High efficiency ECM brushless DC motor with long lifetime 20,000hours
•.Heavy duty work,can sustain continuous 24hours work
•.Special designed high efficiency closed-impeller for low power consumption
•.Motor widely voltage designed suitable for battery,Power supplying with peak-low voltage damply
•.All wetted materials FDA approved to be safety usage
•.Durable permanent magnetic rotor/impeller and fine ceramic shaft
•.Low or no maintenance
•.IP protection level: IP68, submersible directly
•.Blocked protection
Max Flow Rate | 2.75L/MIN (165L/H) |
Max Static Lift | 1.5 M |
Rated Voltage | 6V 12V |
Impeller Type | Closed impeller |
Food Grade(Y/N) | Y |
Liquid Temperature | 0-100°C |
Pump Theory | Centrifugal pump |
Motor Type | Brushless DC motor |
Ambient Temperature | -10-50°C |
Media | Pure Water |
Waterproof Class | IP42 |
Use Place | Indoor |
Working Voltage Range | 9~14V |
Power Consumption | 5W |
Noise Class form 1M | 35dB /Max |
Ideal Life Time | 20000 Hours |
Working Mode | Continuous |
OD of Inlet | 14 mm |
OD of Outlet | 6.5 mm |
Dimension | 46.5x33x41.5 mm |
Weight | 80 g |
Power Supply | DC power supply, battery, solar powered |
Remarks | Can’t dry-running, not Self-priming |
Typical Application
Coffee maker/coffee machine, Water cooler/water dispenser, Beverage dispenser
Water purifier/water dispenser, Tea maker, Milk dispenser, Laboratory
Medical treatment, Fountain, aquariums,Computer CPU cooling circulation,Water heating mattress
