Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Diaphragm Liquid Corrosion Resistance Brushless Double-layer Fireplace Pump

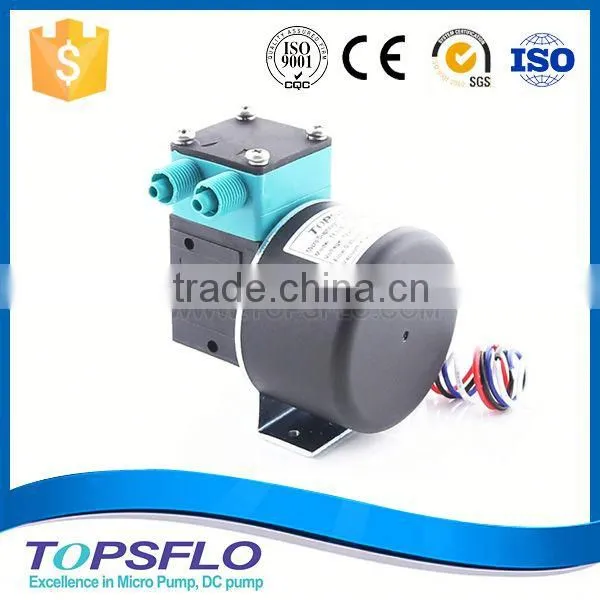

Diaphragm Liquid Corrosion Resistance Brushless Double-layer Fireplace Pump

Name: Diaphragm Liquid Corrosion Resistance Brushless Double-layer Fireplace Pump
Brand: TOPSFLO
SKU: 122015409
Availability: InStock

Changsha TOPSFLO Micro Pump Technology Co., Ltd.

Diaphragm Liquid Corrosion Resistance Brushless Double-layer Fireplace Pump thumbnail-1

Diaphragm Liquid Corrosion Resistance Brushless Double-layer Fireplace Pump photo-1

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

TOPSFLO

Model Number:

TF30B-H

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name TOPSFLO

Model Number TF30B-H

Theory Other, liquid vacuum,suction,self-priming,pressurize

Structure Diaphragm Pump

Usage Other, ink printer,fireplace,electric product,medical machine

Power Electric

Standard or Nonstandard Other, standard,customized

Fuel Other, DC power, Battery

Pressure Other, flow rate 50-350mL

Application Other, Printer ink, fireplace,Gas detection devices

Diaphragm liquid corrosion resistance brushless double-layer fireplace pump

TOPSFLO has rich experience in micro field, especially for fireplace, we have many cooperated clients in this industry use our pumps very well.

Model	TF30B-C/D	TF30B-H	TF30B-A
Pump head	Nylon	Nylon	Nylon
Membrane	EPDM/PTFE	EPDM/PTFE	EPDM/PTFE
Valve	EPDM/FPM	EPDM/FPM	EPDM/FPM
Motor	DC coreless motor	DC brushless motor	DC brush motor
Lifetime	>15000hours	>10000hours	>3000hours
Voltage(v)	6/12/24	12/24	6/12/24
Flow rate(ml/min)	50~350	20~350	50~350
Max head	≥10M	≥10M	≥10M
Low noise	<50dB	<50dB	<50dB

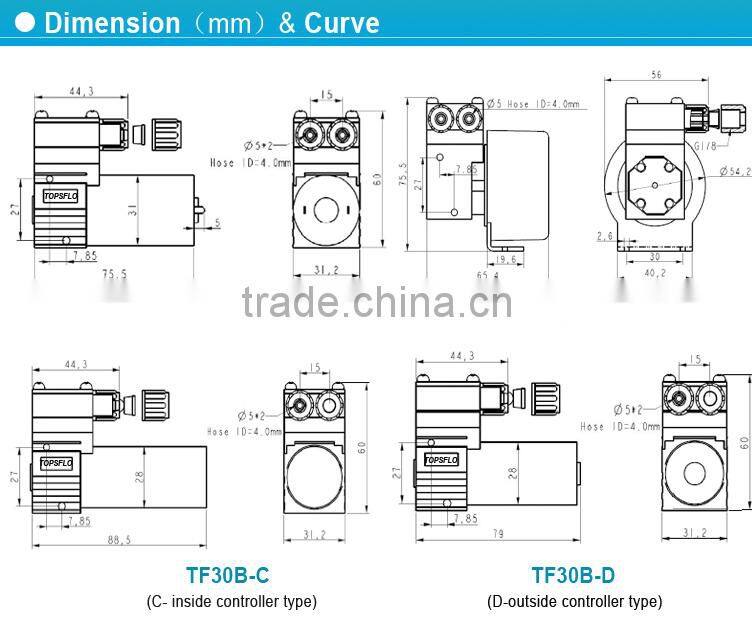

Size(mm)	803160	655475	803160
Light weight(g)	250	350	220

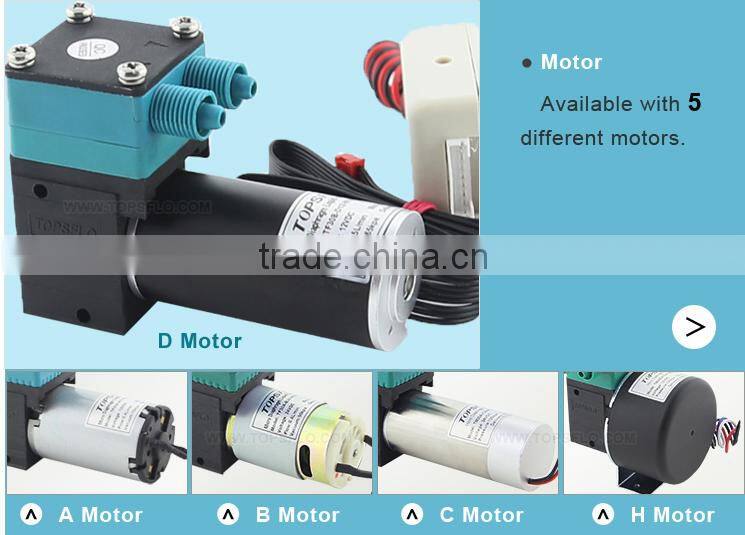

A- Premium duty brush DC motor

lifetime 3,000hours,longer endurance lifetime than other normal DC membrane pump

B- Economical brush DC motor

lifetime:1,500hours

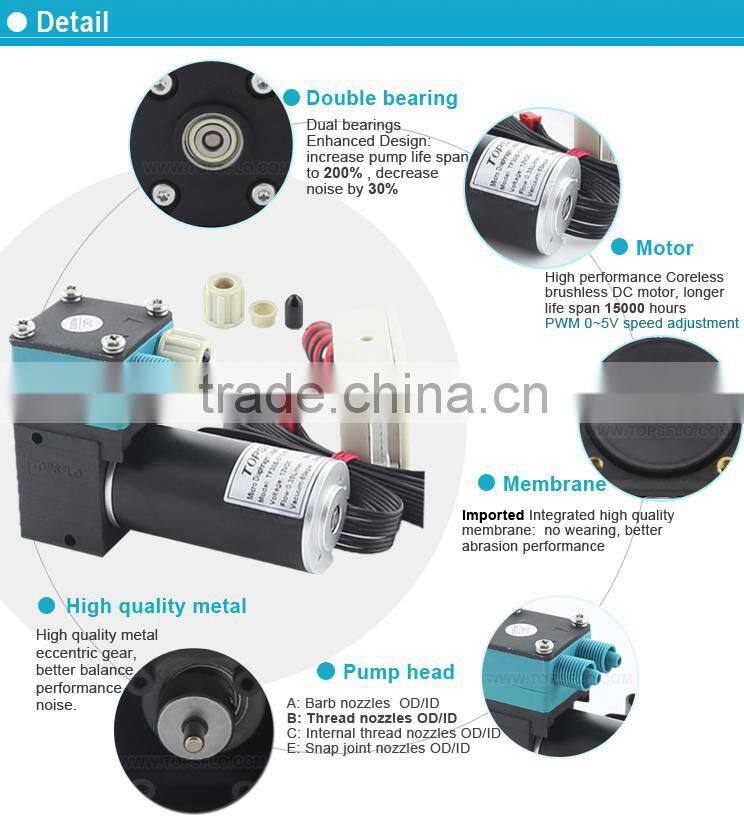

C- Coreless Brushless DC Motor

A brushless electronically commutated dc motor (electronics integrated in motor), the motor runs vibration and spark free, almost silently, is very dynamic and extremely durable, ideal life-time 15000 hours

D- Coreless Brushless DC motor

With outer controller With all advantages of coreless brushless DC motor, ideal life-time 15000 hours, and outer controller can realize more control functions of PWM or 0 -5V speed adjustment, brake, ~ instant starting work

H- Brushless DC Motor

Long lifetime 10000hour

Packaging & Shipping

1.The stock samples can be sent to you within 3-5 days by international express after received

2.The batch order can be shipped to you in about 30-40days after order confirmation (by air or by sea)
