Product Details
Place of Origin: | China | Brand Name: | TOPSFLO | Model Number: | TM30A-D |
Theory: | Vacuum Pump | Structure: | Diaphragm Pump | Usage: | Air Pump |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, DC power, Battery |
Pressure: | High Pressure | Application: | Other, Gas transferring and evacuating |
Product Description

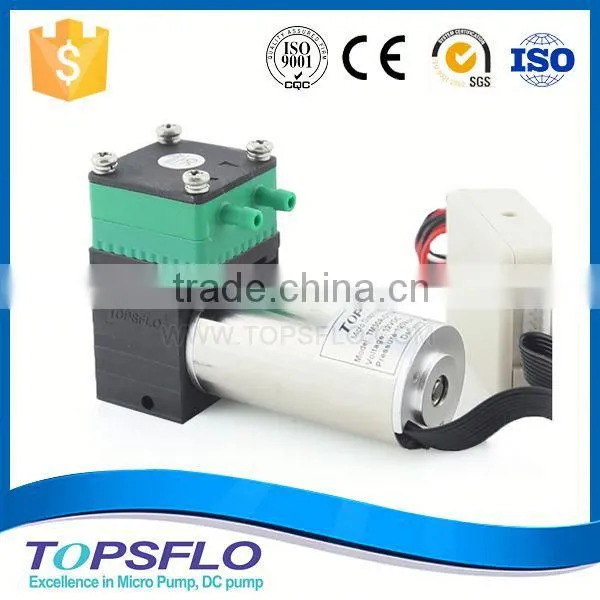

6v 12v 24v dc brushless diaphragm smell machine air pump
Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Pressure | Max Vacuum | Max Flow |
(Item Number) | (Item Number) | (Vdc) | (A) | (KPa) | (KPa) | (L/min) | |
TM30A-C | TM30A-C12-P12004 | TM30A-C12-V7004 | 6 /12 / 24 | 0.4/0.24/0.15 | 120 | -70 | 4.5 |
TM30A-D | TM30A-D12-P12004 (outside controller) | TM30A-D12-V7004 ( outside controller) | 6 /12 / 24 | 0.4/0.24/0.15 | 120 | -70 | 4 |
" P " means pressure pump, " V " means vacuum pump, "6/12/24" means different voltages optional. | |||||||
Pump Weight:250g; Pump Size:80mm*31mm*58mm; Inlet&Outlet:OD 4.8mm/ID 2.6mm,hose suggestion:ID 4.0mm | |||||||
Super silent noise<50dB from 1 Meter; Materials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM | |||||||
Motor type and code:"C":Coreless brushless DC motor with dual ball bearings (long lifetime>15,000hours) "D": Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime>15,000hours);pump with outside controller can realize functions of PWM 0~5V speed adjustment, brake, instant starting work ; inner controller is no additional functions. |
A- Premium duty brush DC motor
lifetime 3,000hours,longer endurance lifetime than other normal DC membrane pump
B- Economical brush DC motor
lifetime:1,500hours
C- Coreless Brushless DC Motor
A brushless electronically commutated dc motor (electronics integrated in motor), the motor runs vibration and spark free, almost silently, is very dynamic and extremely durable, ideal life-time 15000 hours
D- Coreless Brushless DC motor with outer controller
With all advantages of coreless brushless DC motor, ideal life-time 15000 hours, and outer controller can realize more control functions of PWM or 0 -5V speed adjustment, brake, ~ instant starting work
H- Brushless DC Motor
Long lifetime 10000hour
Wetted material options:
- Optional membrane materials: EPDM for normal air PTFE for corrosive air,like acid, alkali air, ozone etc.
- Optional valve materials: EPDM for normal air FPM for corrosive air, like acid, alkali, ozone,etc.
Feature:
1.Highest Performance/Size Ratio
Innovative and efficient engineering designs enable the TM30A Series to push the performance envelope in a lightweight, compact size.
2.Performs Quieter
Optimized head, chamber, and flow path reduce noise without compromising performance.
3.Lasts Reliably Longer
Using the advanced diaphragm elastomer and superior brushless motor design sets the highest benchmark for service-free operation that exceeds 10,000 hours.
4.Uncontaminated flow
no contamination of the media due to oil-free operation
5.Little vibration
Because of leading edge technologies, top quality bearing, superior brushless motor
6.High level of gas tightness
thanks to stress-optimised structured diaphragm, newly-designed valves and sealing systems, precise placement of the pump head
7.Extreme chemical resistance
The use of chemically resistant materials optional such as FFPM,PTFE,FPM or other material combinations for the parts which allows the corrosive gas to be pumped.
8.Optimal solution for your application
a wide standard range of materials, motors , voltages configurates multiple components system selected
